DL-A Series Dual-sided Indoor LED Poster Screen
Pixel Pitch: P1.25/ P1.56/ P1.95/ P2.5/ P2.604/ P2.976/ P3.915
LED Type: SMD / GOB
Display Size: 750X2000X54mm
● Plug and Play.
● Poster with casters, freely movable.
● Cloud remote content update.
● Smart split-screen & cascading, multi-use in one screen.

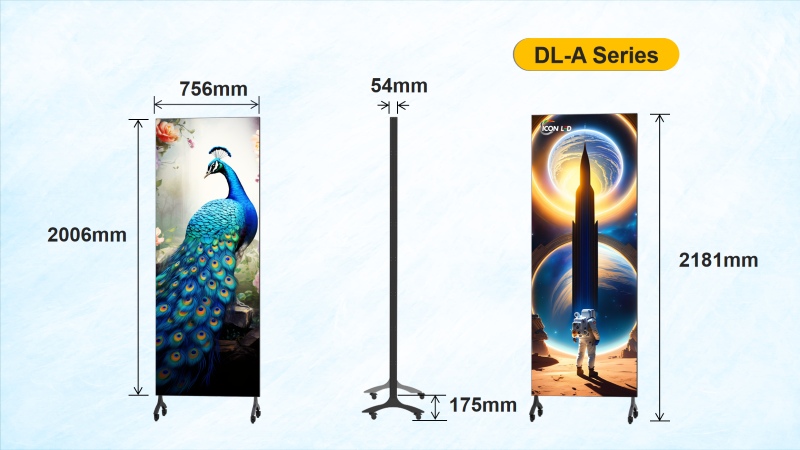

Cabinet Structure

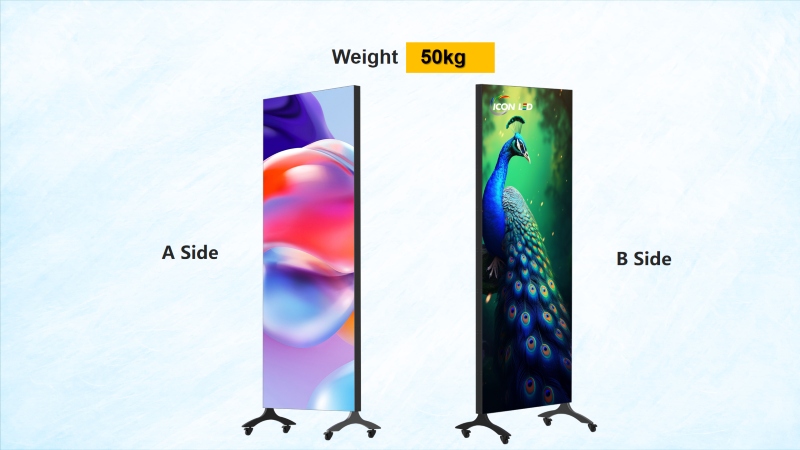

Ultra-thin and Ultra-light. Weighing only 50kg for the 750X2000mm display size, these posters are perfect for a variety of settings.

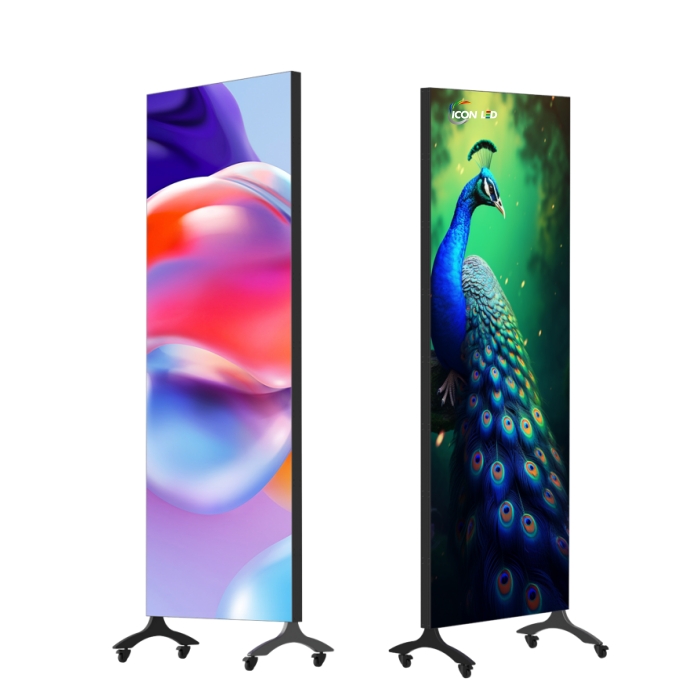

Double-sided model installs LED screens on both sides, reaching audiences from two directions, perfect for central public areas with higher advertising exposure.

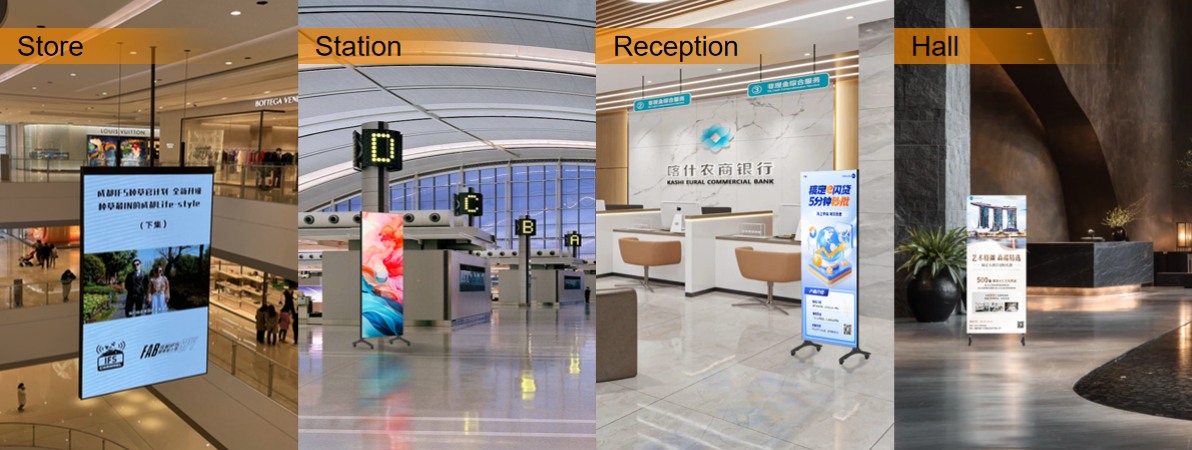

Application Scenario
Installing LED poster displays in stores, shopping malls, exhibition halls, trade show booths,
airport & high-speed railway waiting lobbies and events will make your advertisements or information very eye-catching.
Key Features

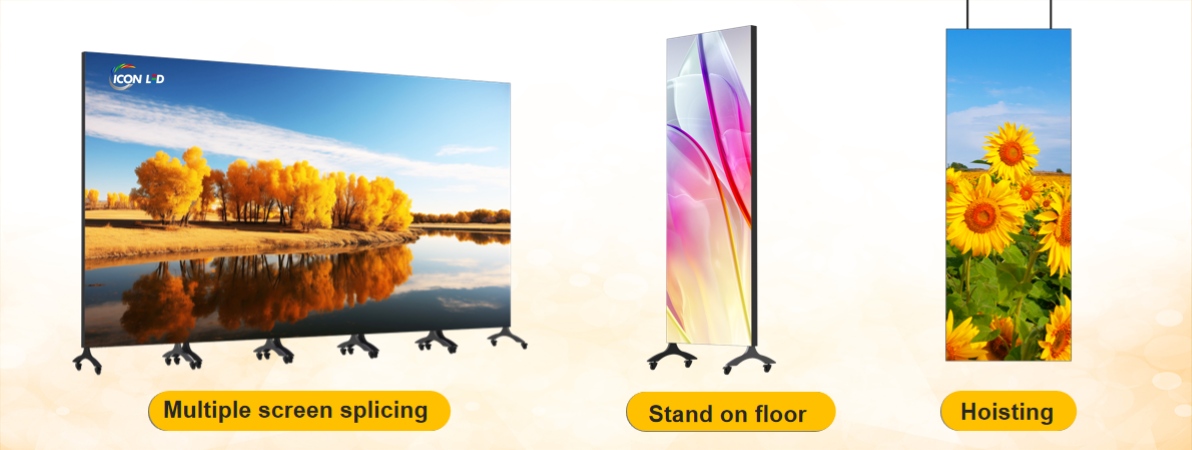

Wheel-mounted movable design, plug-and-play, cloud remote content update, and support multiple installation method:

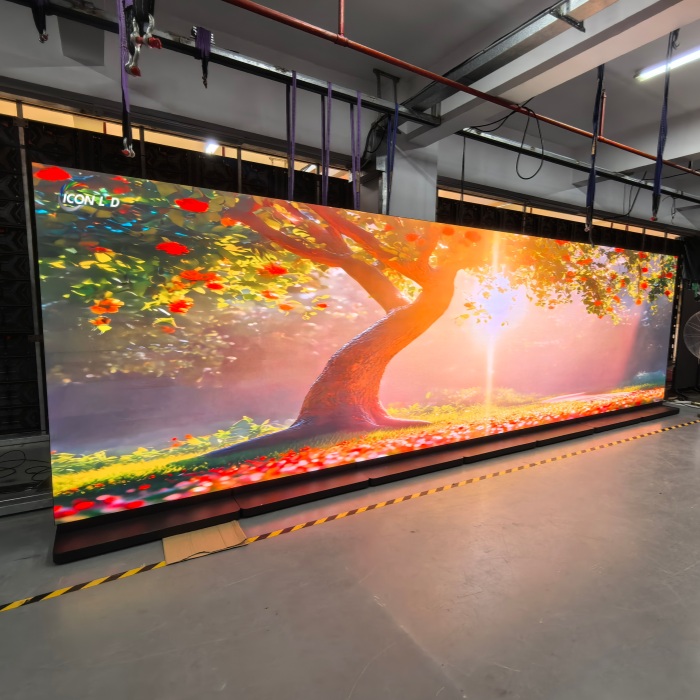

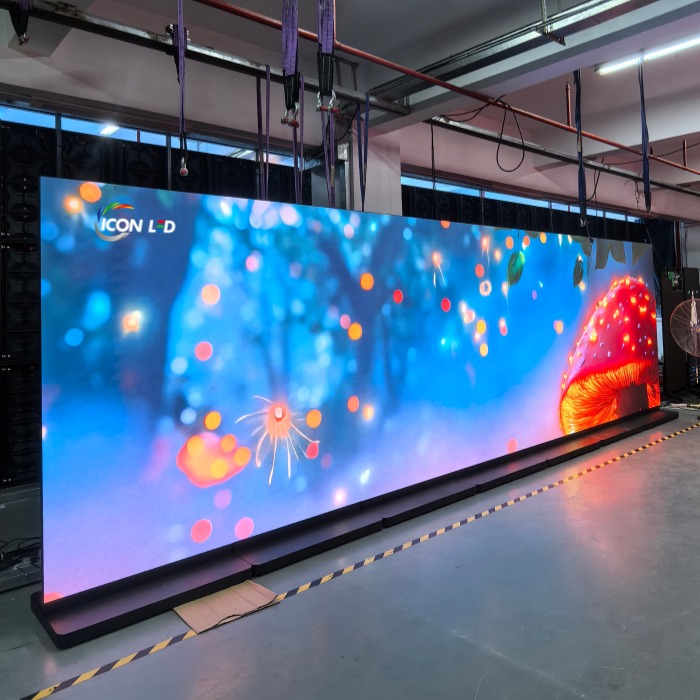

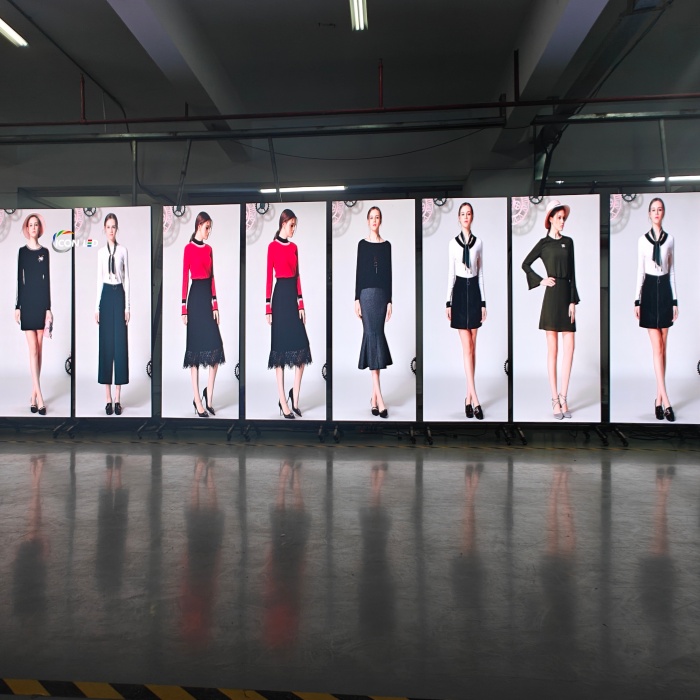

hoisting, single stand display, as well as seamless connection and cascading of multiple units.
Perfect for temporary events and flexible commercial advertising.

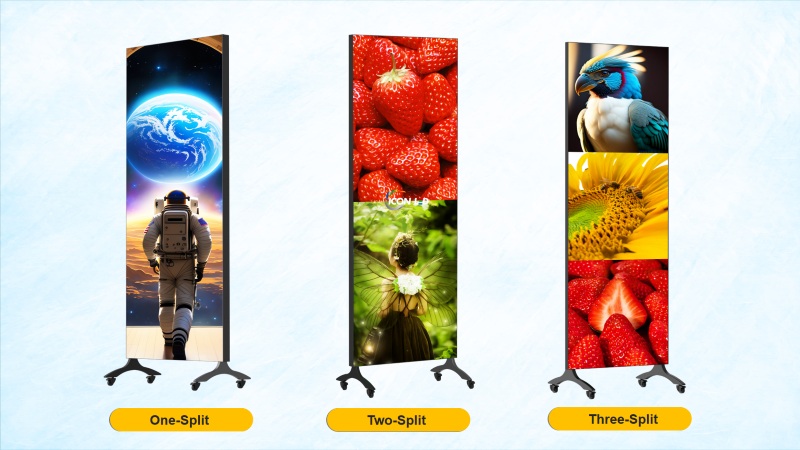

Smart Split-Screen Multi-Use in One Screen
Multiple split-screen modes, with video and images/text playing synchronously, meeting various needs.
• One-Split
• Two-Split
• Three-Split

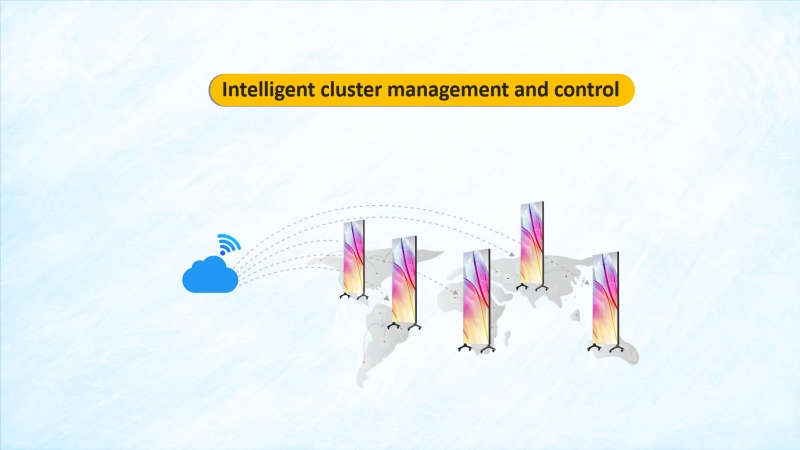

Smart Cluster Management
Supports remote smart monitoring, remote and scheduled on/off control, and wireless remote interaction via mobile phones and smart devices, offering ultimate control anytime, anywhere. Remote cloud content update, no on-site operation needed.
DL-A Series Dual-sided Indoor LED Poster Screen
| Pixel Type | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Packing | SMD1010(GOB) | SMD1212(GOB) | SMD1515(GOB) | SMD1515(GOB) | SMD1515(GOB) | SMD1515 | SMD2020 |
| Physical Density (Dot / m²) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Screen Resolution | 600X1600(single-sided) | 480X1280(single-sided) | 384X1024(single-sided) | 300X800(single-sided) | 288X768(single-sided) | 252X672(single-sided) | 192X512(single-sided) |
| Module Size (L*Hmm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Display Size (L*H*T/mm) | 750X2000X54 | 750X2000X54 | 750X2000X54 | 750X2000X54 | 750X2000X54 | 750X2000X54 | 750X2000X54 |
| Poster Size (L*H*T/mm) | 756X2181X54 | 756X2181X54 | 756X2181X54 | 756X2181X54 | 756X2181X54 | 756X2181X54 | 756X2181X54 |
| Single Poster weight (kg) | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| Cabinet Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Brightness (Nits) | 600 | 600 | 800 | 800 | 800 | 800 | 1000 |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/50s | 1/40s | 1/32s | 1/25s | 1/32s | 1/28s | 1/16s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Avg. Power Consumption (W / m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Ingress Protection (IP) | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | ||||||
| Wroking Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | ||||||
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | ||||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
