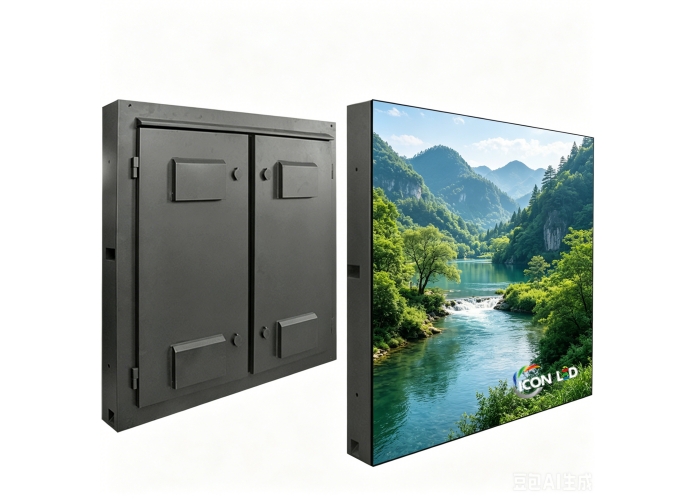

IR960 Series Outdoor LED Display
Pixel Pitch: P2.5/ P3.076/ P4/ P5/ P6.67/ P8/ P10
LED Type: SMD (Gluing and Painting)
Cabinet Size: 960*960*137mm
● IP65 Protection Level

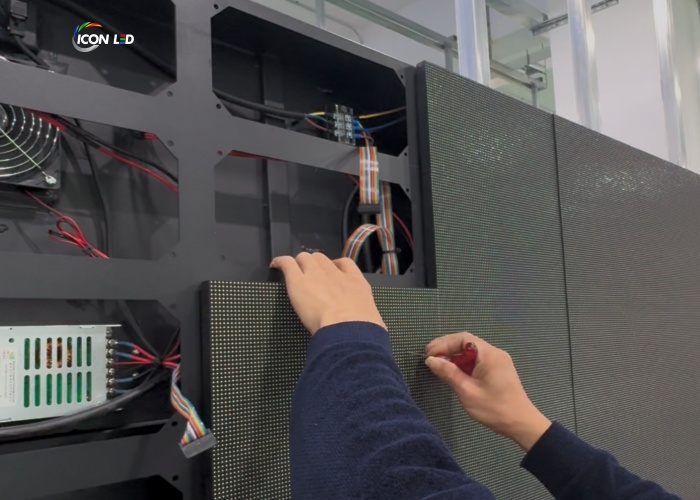

● Front or Rear Dual Maintenance
● 3500-7000cd/m² Adjustable
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow
● Cost-effective Waterproof Iron Cabinet

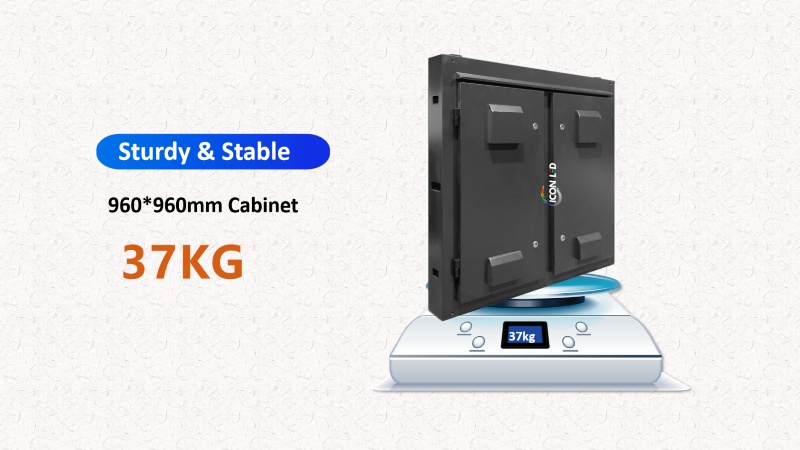

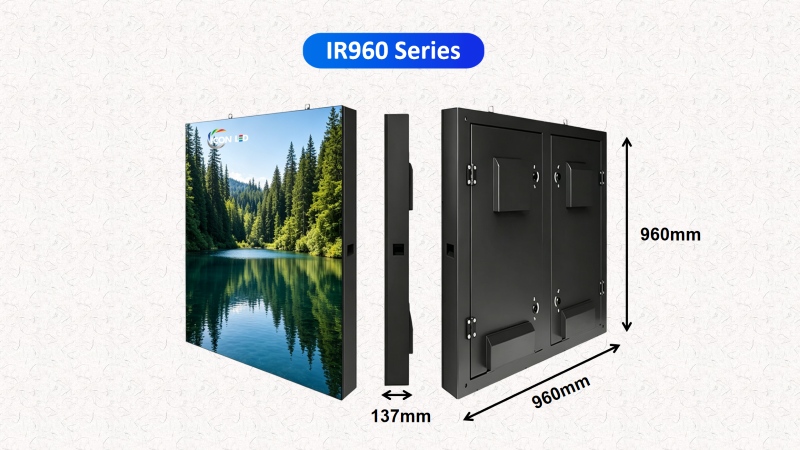

Cabinet Structure
High cost-effective standard waterproof iron cabinet. Good stability with a weight of 37kg and the size of 960*960*137mm.
Application Scenario
ICON LED Outdoor LED displays are widely deployed in urban billboards, shopping mall facades, sports stadiums, transport hubs and outdoor events for commercial advertising, public information release and live visual presentation. Featuring ultra-high brightness, they deliver clear, vivid visuals under direct sunlight and boast full waterproof & dustproof performance to work stably in all outdoor weather conditions.

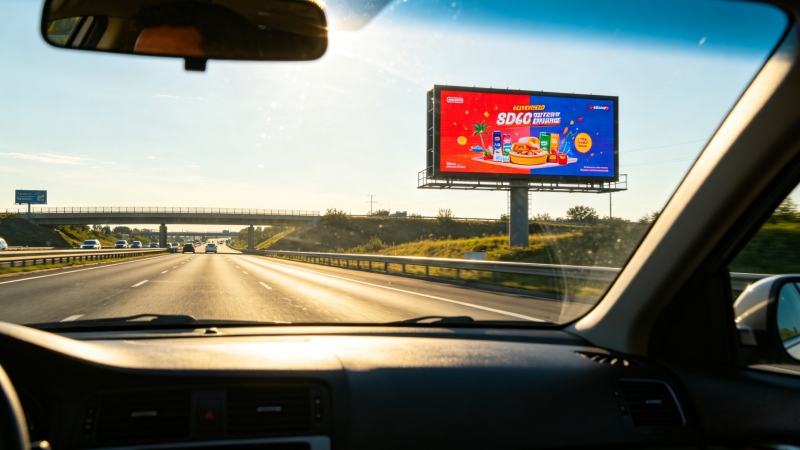

Digital Out-of-Home (DOOH) Highway & Urban Billboard Advertising
Suitable for roadside billboards and large-format outdoor commercial signage. Ultra-high brightness (8,000–12,000 nits) ensures clear visibility under direct midday sunlight without washed-out images, ideal for long-distance traffic audience exposure.

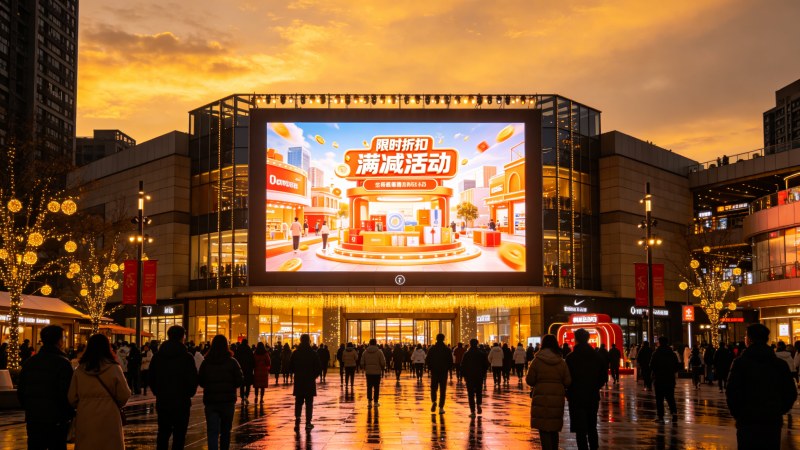

Commercial Complexes & Shopping Mall Outdoor Facades
Wall-mounted, corner-spliced or curved installation on mall outer walls, entrance gate screens and plaza media walls. Lightweight aluminum cabinet lowers building load, delivering vivid brand promotion and shopping event visuals all day long.

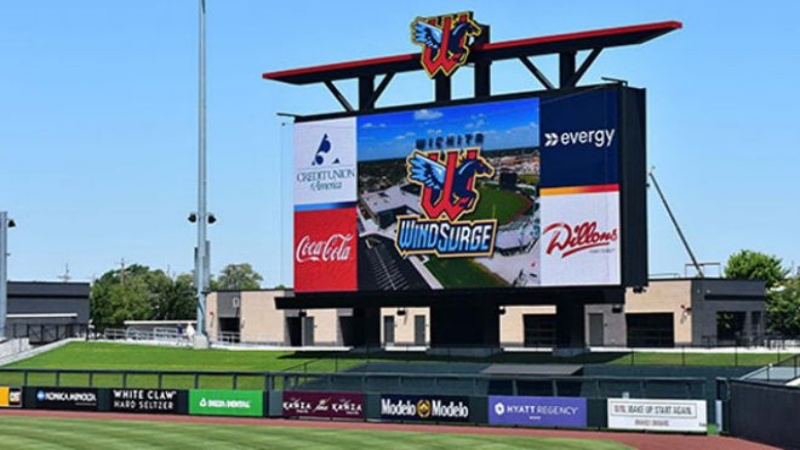

Sports Stadiums & Outdoor Event Venues
Perimeter stadium screens and outdoor live broadcast display walls for sports matches, concerts and festivals. High refresh rate and uniform color reproduction guarantee smooth, glitch-free playback of live footage and event visuals.

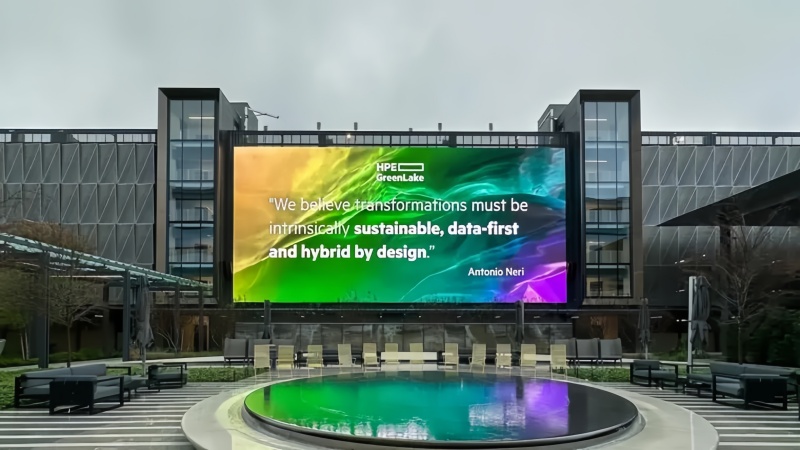

City Landmarks & Public Cultural Spaces
Architectural digital facades, municipal propaganda screens and scenic spot viewing area displays. IP65 waterproof iron shell resists rain, dust and coastal salt fog, meeting long-term public outdoor operation standards.
IR960 Series Outdoor LED Display
| Type | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| LED Model & Type | 1415 | 1415 | 1921 | 1921 | 2727 | 2727 | 3535 |
| Density（dot/m²） | 160000 | 105625 | 62500 | 40000 | 22500 | 15625 | 10000 |
| Module Pixels (L*H) | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Module Size (L*H)mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Qty/Cabinet(W*H) | 3×6 | 3×6 | 3×6 | 3×6 | 3×6 | 3×6 | 3×6 |
| Cabinet Size (L*H*T)mm | 960*960*137mm | 960*960*137mm | 960*960*137mm | 960*960*137mm | 960*960*137mm | 960*960*137mm | 960*960*137mm |
| Cabinet Resolution (dot) | 147456 | 97344 | 57600 | 36864 | 20736 | 14400 | 9216 |
| Single Cabinet weight (kg) | 37KG | 37KG | 37KG | 37KG | 37KG | 37KG | 37KG |
| Cabinet Type | Iron | Iron | Iron | Iron | Iron | Iron | Iron |
| Access / Maintenance | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Scan | 16 | 13 | 10 | 8 | 6 | 4 | 2 |
| Brightness | 3500-7000nits | ||||||
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy |
| Max Power (watts/m²) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Avg Power (watts/m²) | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Grayscale | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ |
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?

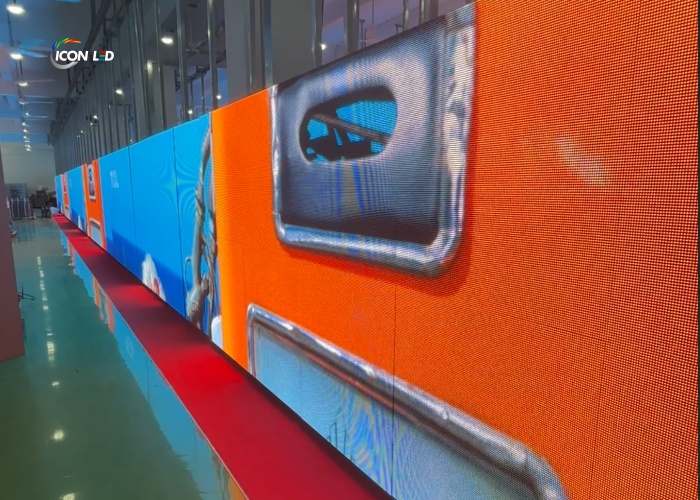

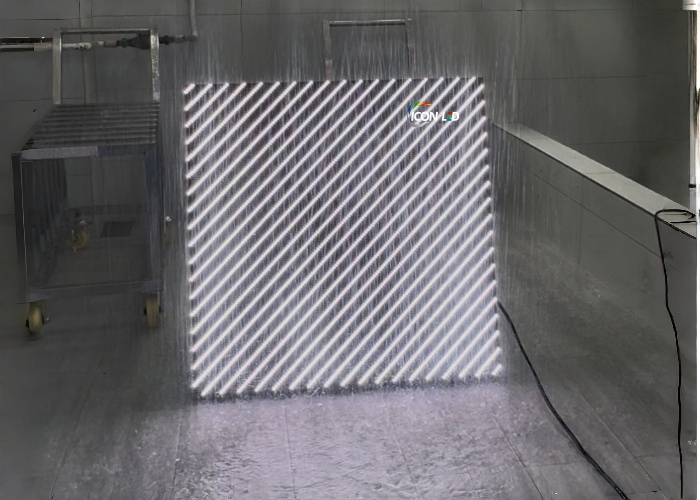

A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
