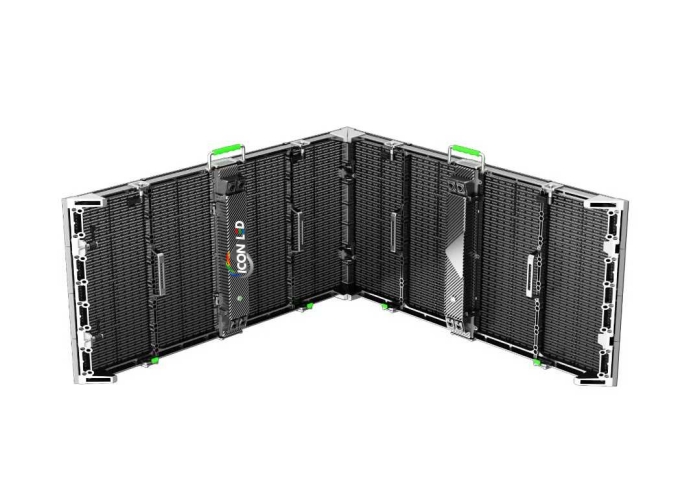

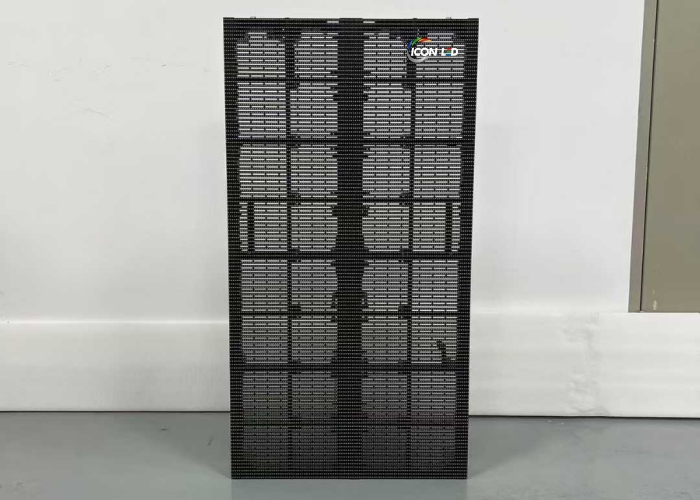

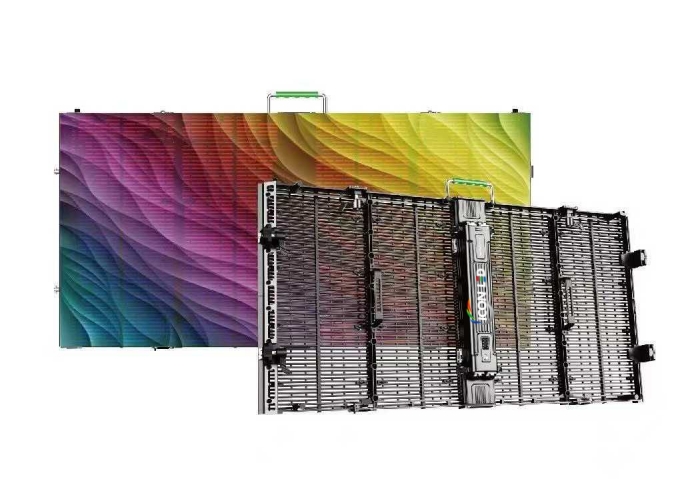

Pura Grille Series Transparent LED Screen
Pixel Pitch: P3.91-7.82
LED Type: SMD

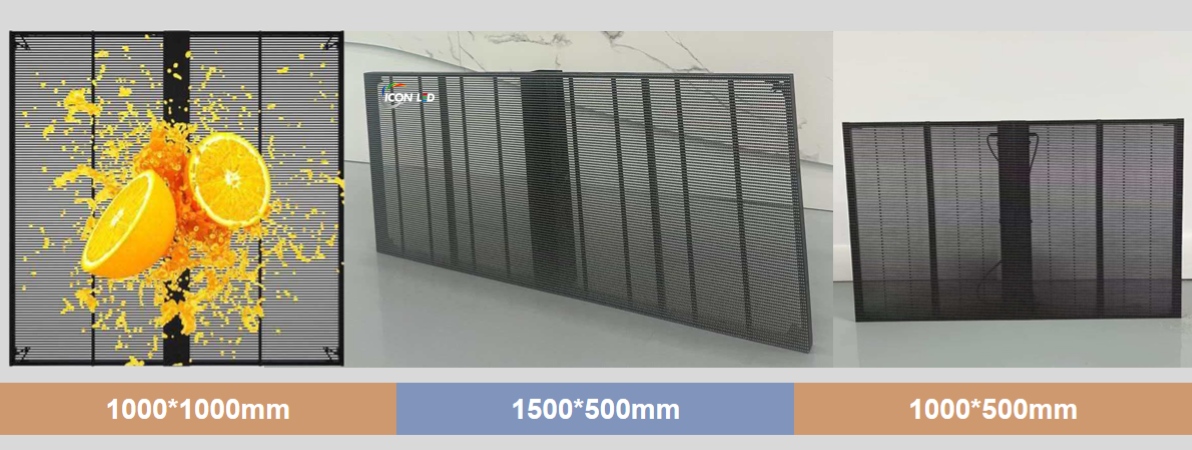

Cabinet Size: 1000*1000mm / 1500*500mm / 1000*500mm
● 65%Transmittance
● Reduce energy consumption by 70%
● Low operating temperature,high stability
● High-brightness,16bit color
● Support multiple installation mode
Key Features
ICON LED transparent LED screen has the advantages of high energy efficiency, light weight, high transparency, easy installation, flexibility and adjustable features. Various cabinet structures & sizes fit diverse application scenarios perfectly.
Application Scenario
Widely applied in mall glass windows, office building curtain walls, auto showrooms, pop-up stores, hotel floor-to-ceiling windows, exhibition booths, elevator glass and luxury retail glass partitions, featuring high light transmittance and invisible effect when powered off.

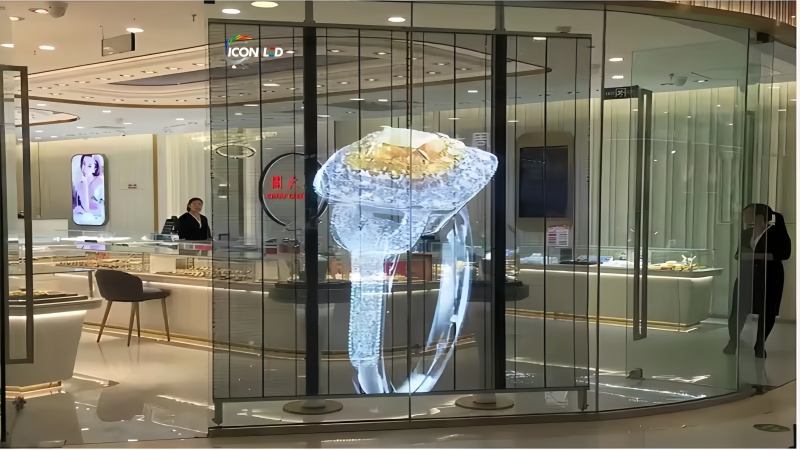

Luxury store windows
Nearly invisible when off, keep natural light and clear view of goods, attractive dynamic ads without damaging store decoration.

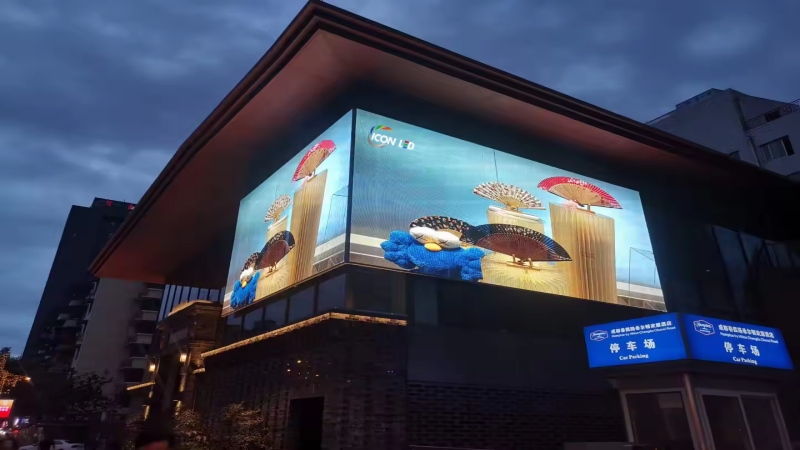

Retail advertising
Lightweight, transparent and fashionable appearance. It is suitable for installation on glass surface and hanging installation.

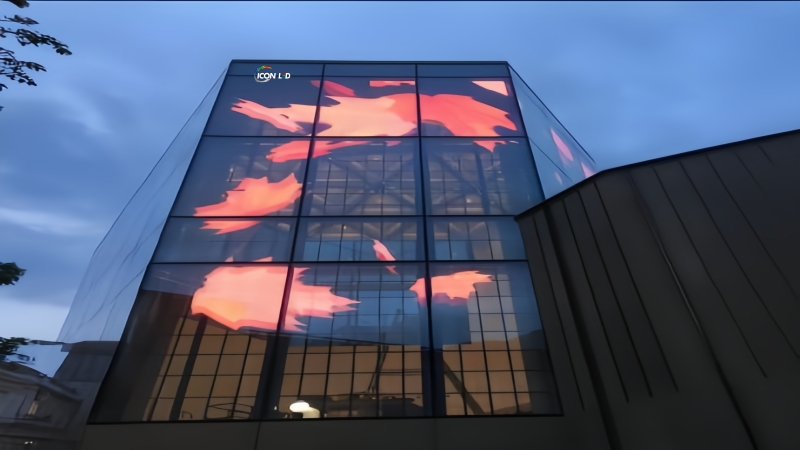

Glass curtain walls
High light transmittance, no block of indoor view, thin film for easy installation without heavy brackets.

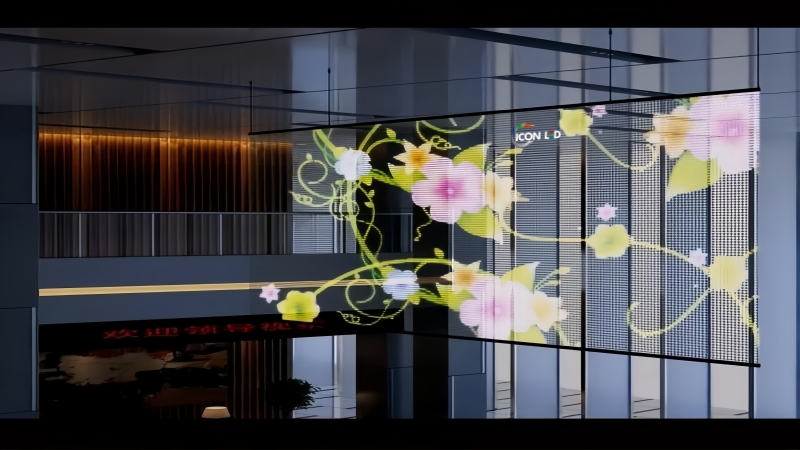

Floor-to-ceiling windows & glass partitions
Balance landscape view and media display, soft screen light, upgrade high-end venue ambiance.
Pura Grille Series Transparent LED Screen
| Cabinet Size | 1000*1000mm | 1500*500mm | 1000*500mm |
| Thickness | 75mm | 75mm | 75mm |
| Pixel Pitch | P3.91-7.82 | P3.91-7.82 | P3.91-7.82 |
| SMD Packing | SMD1921 | SMD1921 | SMD1921 |
| Pixel Density (m²) | 32768 | 24576 | 16384 |
| Resolution | 256*128 | 384*64 | 256*64 |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Transparency | 65% | 65% | 65% |
| IP Level | IP65 | IP65 | IP65 |
| Brightness (m²) | ≥4500cd | ≥4500cd | ≥4500cd |
| Cabinet N.W.-KG | 8 | 6 | 4.5 |
| Gray scale | ≥14 bit | ≥14 bit | ≥14 bit |
| Contrast Ratio | 4000:1 | 4000:1 | 4000:1 |
| Max power (W/m²) | 600 | 600 | 600 |
| Ave power (W/m²) | 200 | 200 | 200 |
| Viewing angle V&H | 160°/140° | 160°/140° | 160°/140° |
| Frames Per Second | 60Frame/S | 60Frame/S | 60Frame/S |
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?

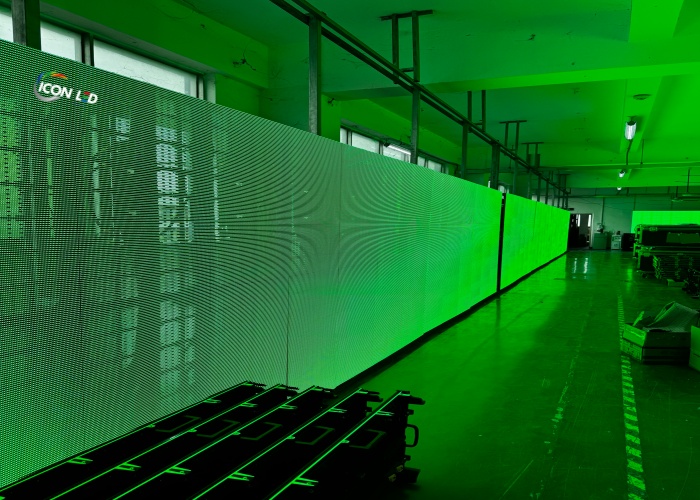

A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
