AL480 Series Outdoor LED Display
Pixel Pitch: P2.5/ P3.076/ P4/ P5/ P6.67/ P8/ P10
LED Type: SMD (Gluing and Painting)
Cabinet Size: 640*480*69mm
● IP65 Protection Level
● 3500-7000cd/m² adjustable
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow
● Cost-effective Waterproof Iron Cabinet
● Rear Maintenance

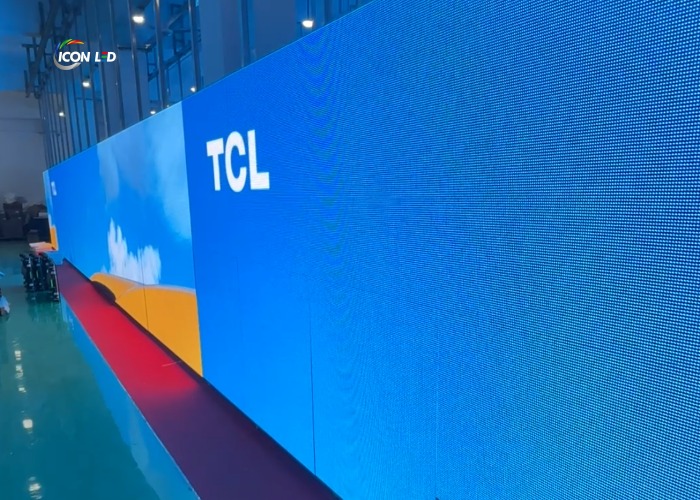

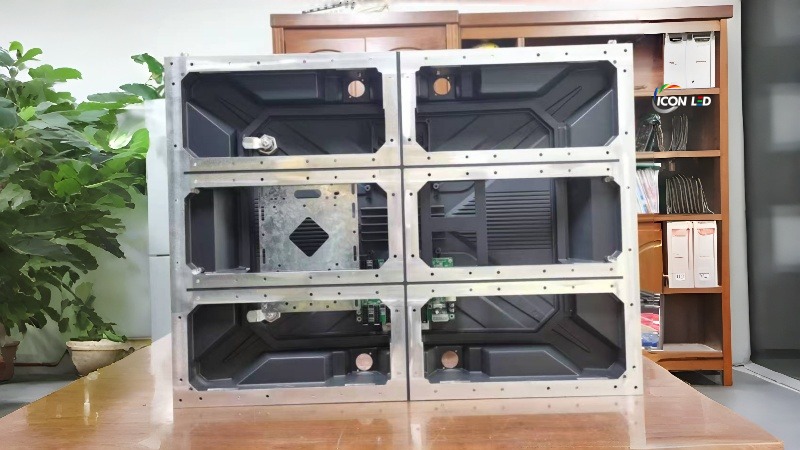

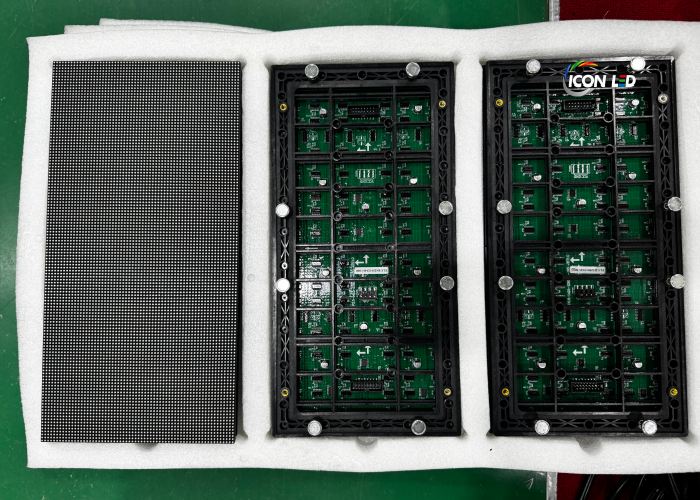

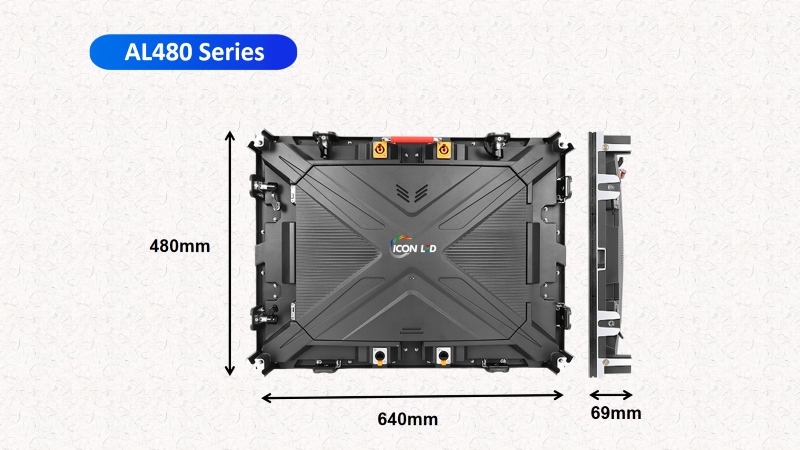

Cabinet Structure

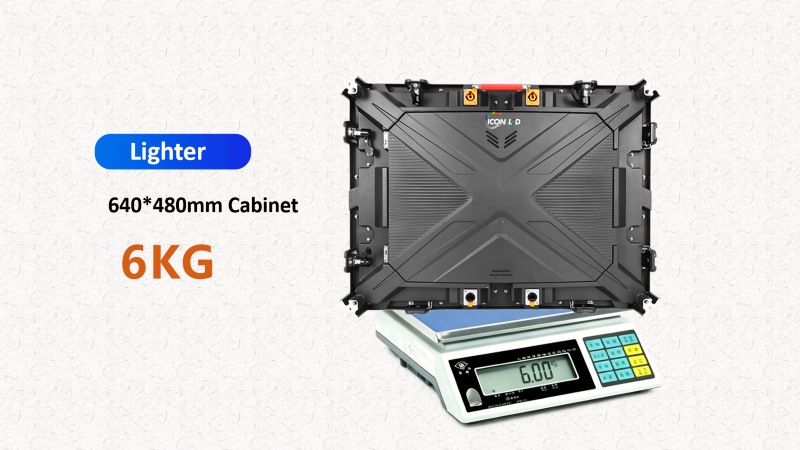

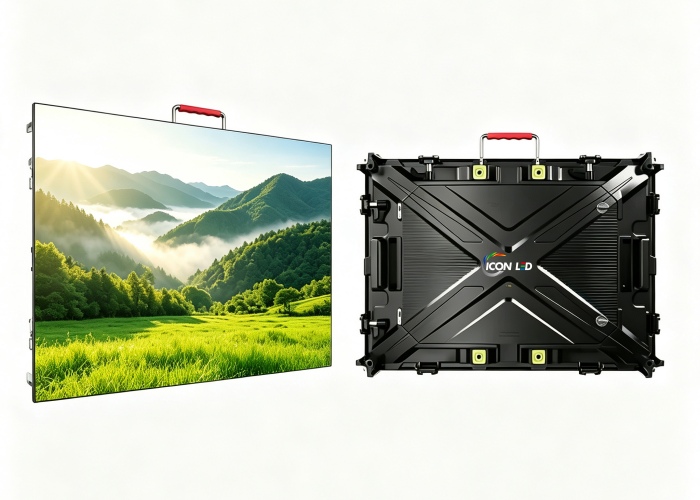

Cost-effective standard waterproof aluminum cabinet. Good stability with a weight of 6kg and the size of 640*480*69mm.
Application Scenario
ICON LED Outdoor LED displays are widely deployed in urban billboards, shopping mall facades, sports stadiums, transport hubs and outdoor events for commercial advertising, public information release and live visual presentation. Featuring ultra-high brightness, they deliver clear, vivid visuals under direct sunlight and boast full waterproof & dustproof performance to work stably in all outdoor weather conditions.
Digital Out-of-Home (DOOH) Highway & Urban Billboard Advertising
Suitable for roadside billboards and large-format outdoor commercial signage. Ultra-high brightness (8,000–12,000 nits) ensures clear visibility under direct midday sunlight without washed-out images, ideal for long-distance traffic audience exposure.
Commercial Complexes & Shopping Mall Outdoor Facades
Wall-mounted, corner-spliced or curved installation on mall outer walls, entrance gate screens and plaza media walls. Lightweight aluminum cabinet lowers building load, delivering vivid brand promotion and shopping event visuals all day long.
Sports Stadiums & Outdoor Event Venues
Perimeter stadium screens and outdoor live broadcast display walls for sports matches, concerts and festivals. High refresh rate and uniform color reproduction guarantee smooth, glitch-free playback of live footage and event visuals.
City Landmarks & Public Cultural Spaces
Architectural digital facades, municipal propaganda screens and scenic spot viewing area displays. IP65 waterproof aluminum shell resists rain, dust and coastal salt fog, meeting long-term public outdoor operation standards.
AL480 Series Outdoor LED Display
| Type | P2.5 | P3.076 | P4 | P5 | P6.67 | P8 | P10 |
| LED Model & Type | 1415 | 1415 | 1921 | 1921 | 2727 | 2727 | 3535 |
| Density（dot/m²） | 160000 | 105625 | 62500 | 40000 | 22500 | 15625 | 10000 |
| Module Pixels (L*H) | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 | 40*20 | 32*16 |
| Module Size (L*H)mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Qty/Cabinet(W*H) | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 | 2×3 |
| Cabinet Size (L*H*T)mm | 640*480*69mm | 640*480*69mm | 640*480*69mm | 640*480*69mm | 640*480*69mm | 640*480*69mm | 640*480*69mm |
| Cabinet Resolution (dot) | 256*192 | 208*156 | 160*120 | 128*96 | 96*72 | 80*60 | 64*48 |
| Single Cabinet weight (kg) | Plastic door: 5.2kg / Aluminum door: 6kg | ||||||
| Cabinet Type | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Access / Maintenance | Rear | Rear | Rear | Rear | Rear | Rear | Rear |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Scan | 16 | 13 | 10 | 8 | 6 | 4 | 2 |
| Brightness | 3500-7000nits | ||||||
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy | 5V/60A, G_energy |
| Max Power (watts/m²) | 800 | 800 | 800 | 800 | 800 | 800 | 800 |
| Avg Power (watts/m²) | 240 | 240 | 240 | 240 | 240 | 240 | 240 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Grayscale | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ | 14-16bit+ |
