Apex MIP Series Outdoor Rental LED Screen
Pixel Pitch: P1.25/ P1.3/ P1.5625/ P1.95
LED Type: MIP
Cabinet Size: 500X500mm
● MIP technology delivers ultra-high resolution
● Front & Rear Dual Maintenance
● Flat surface, inner & outer arc splicing or 90° angle splicing.
● High refresh rate, high contrast, high grayscale, and stunning image quality.

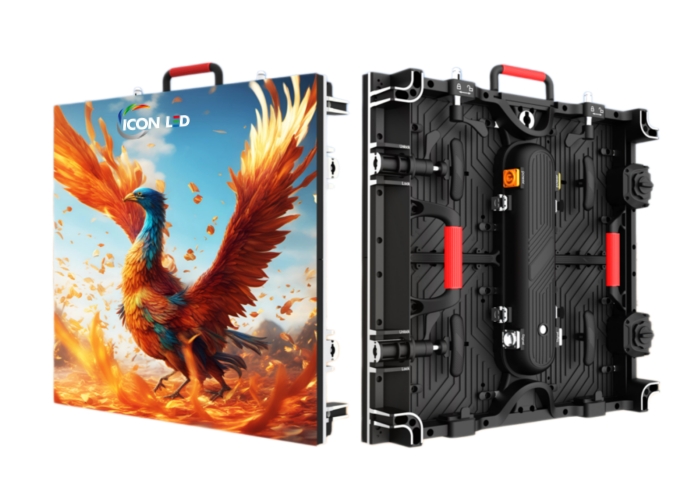

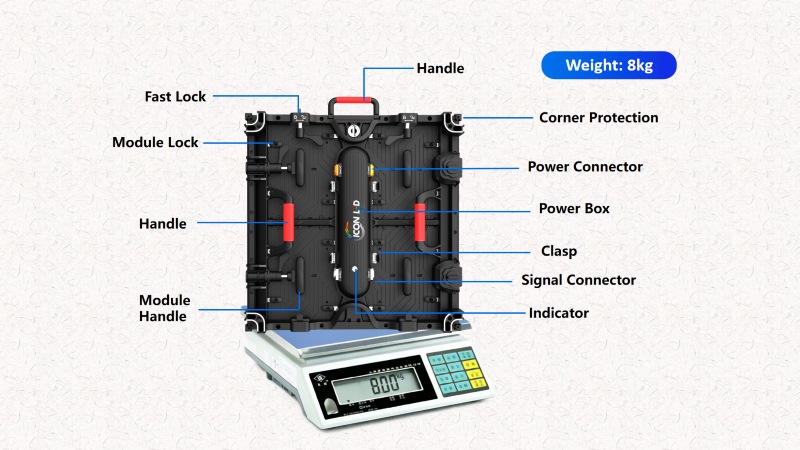

Cabinet Structure
Die-cast aluminum cabinet, 8kg per unit, lightweight with outstanding structural stability.
The feature of lightweight makes the LED display easy to carry, transport and install, saving a good amount of money on your labor costs.
Application Scenario

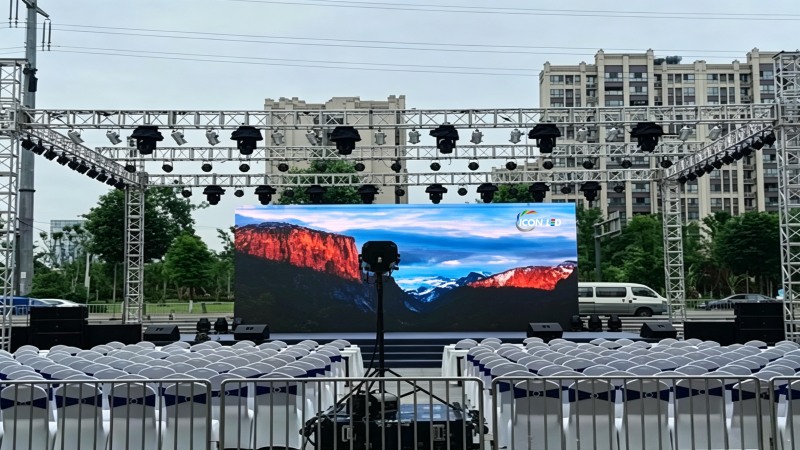

Apex MIP Series of outdoor MIP fine-pitch rental screens are widely deployed for temporary outdoor visual events, including outdoor concerts, music festivals, sports competitions, brand pop-up launches, outdoor auto shows, municipal carnival celebrations, plaza exhibitions, outdoor wedding ceremonies and temporary live streaming venues.

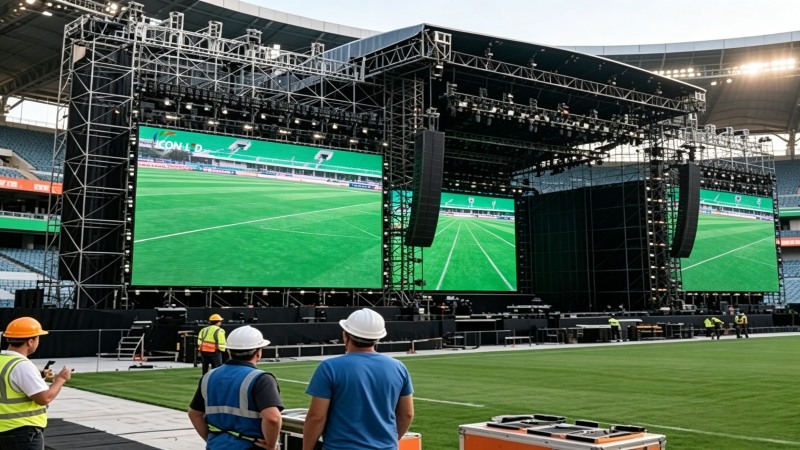

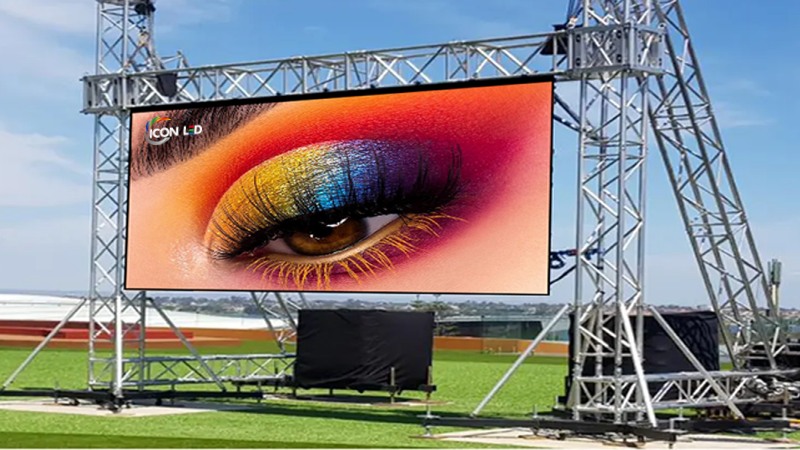

Outdoor Concerts & Music Festivals
Mounted on trusses as stage backdrops. High refresh rate removes camera moiré to offer vivid visuals under direct sunlight for live streaming.

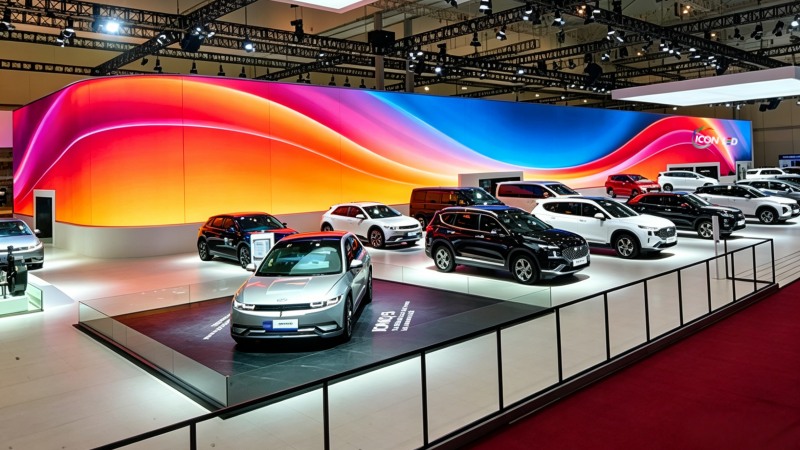

Brand Pop-up Events & Auto Shows
ICON LED Fine-pitch high-definition panels show intricate product details. IP65 waterproof performance ensures stable all-day outdoor booth operation.
Key Features

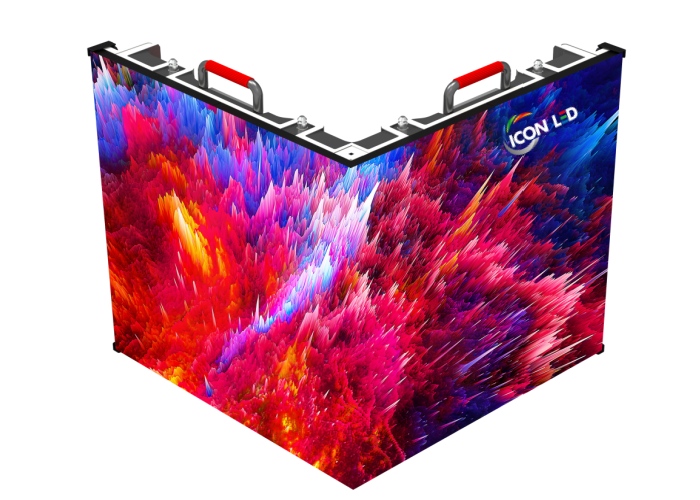

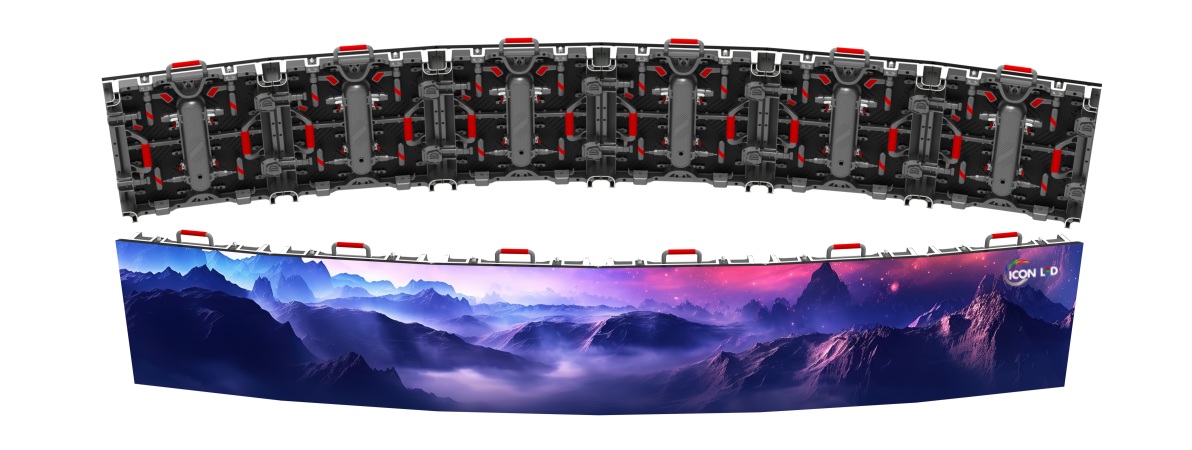

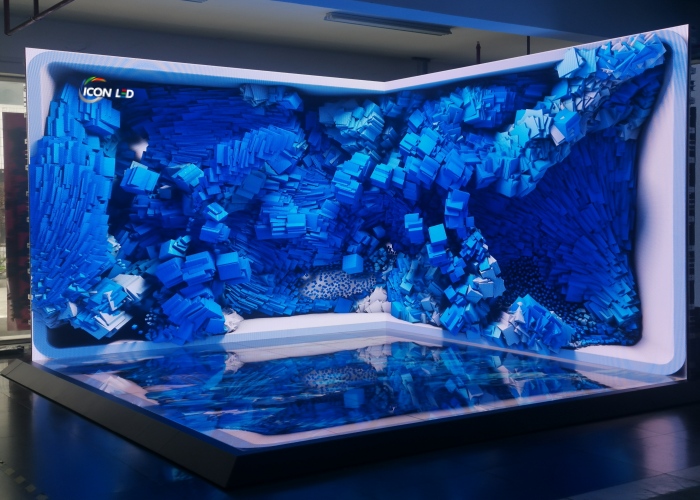

Flat surface | Inner & outer arc splicing | 90° angle splicing
Featuring flexible modular splicing, the displays can be assembled into flat or curved screens, compatible with truss suspension, ground stacking and vehicle-mounted installation to meet diverse on-site layout demands.

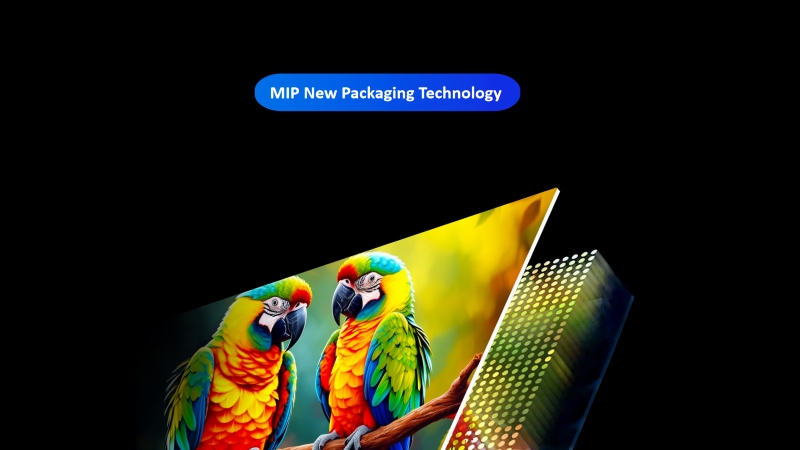

Superior Image Performance with MIP Packaging
• Built on mature MIP chip packaging technology, the display achieves ultra-high resolution, uniform color consistency and deep black contrast.
• High-brightness panels with anti-glare coating guarantee clear visibility under direct strong sunlight without washed-out colors.
• Equipped with high refresh rate, it eliminates flickering and shaking patterns during live shooting, presenting delicate, distortion-free visuals for both close and long-distance viewing.

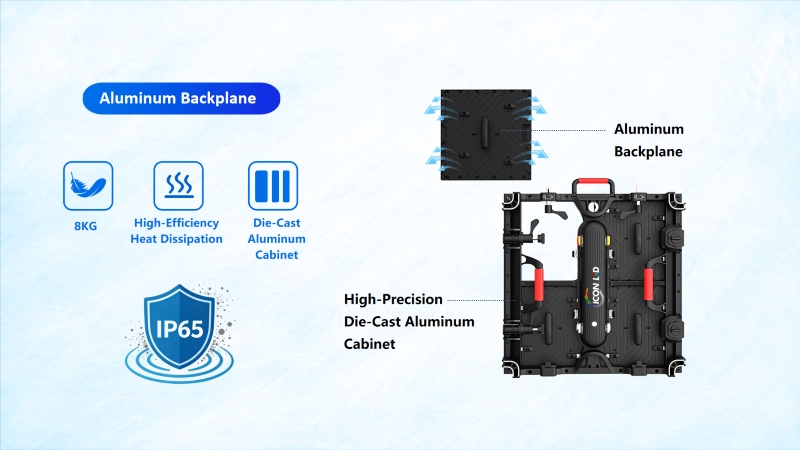

Lightweight & Weatherproof Die-Cast Aluminum Cabinets
The IP65 fully waterproof and dustproof design, paired with efficient heat dissipation, enables stable long-term operation under harsh outdoor conditions such as heavy rain and high temperatures.

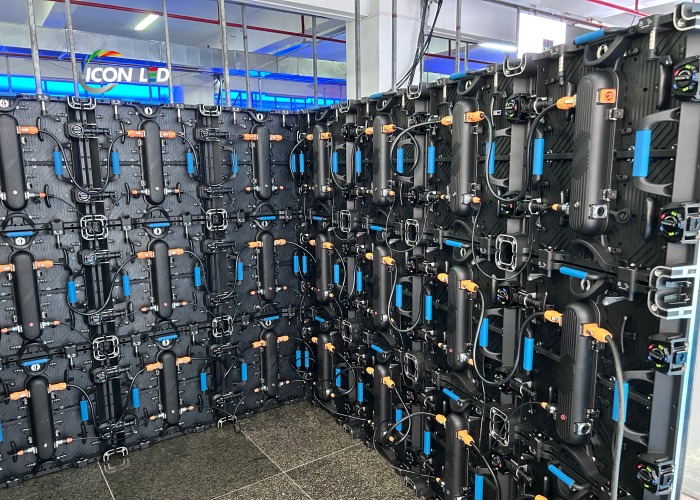

Rental-Oriented Fast Assembly & Easy Maintenance
• Equipped with quick-lock connectors for rapid splicing and disassembly, the modular structure drastically cuts setup and dismantling time.

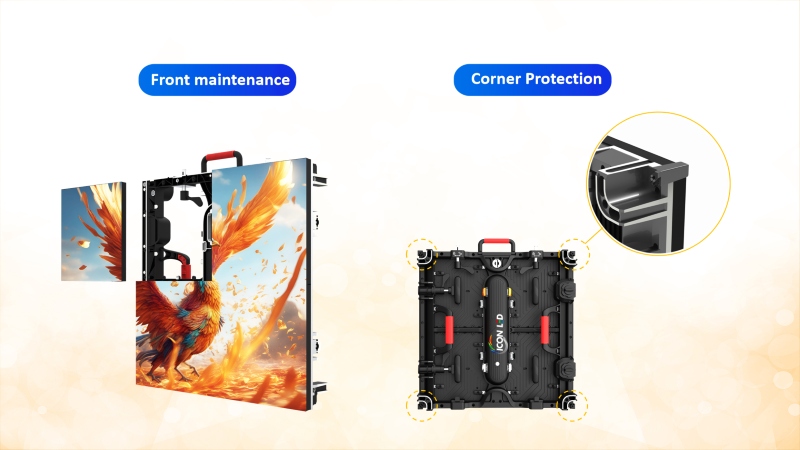

• Single-point front maintenance allows on-site component replacement without removing the entire cabinet, greatly improving event work efficiency.
• Intelligent corner protectors for long-term operation.

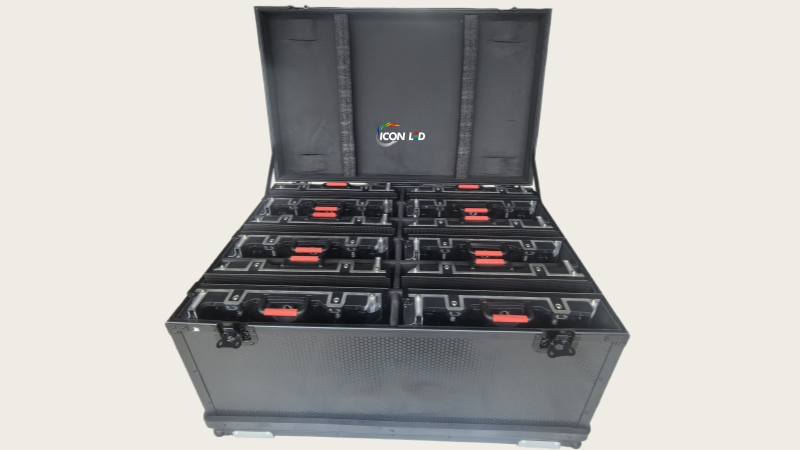

Shockproof Flight Case Packing
• ICON LED screens are packed with sturdy flight cases. It offers great protection against collision, moisture and dust during long-distance transport.
• Stackable and easy to carry with built-in handles and wheels, the cases simplify loading, unloading and repeated rental use. They extend panel service life and cut damage risks, saving your after-sales replacement costs effectively.
Apex MIP Series Outdoor Rental LED Screen
| Pixel Type | P1.25 | P1.3 | P1.5625 | P1.95 |
| LED Packing | MIP0505 | MIP0606 | MIP0606 | MIP0606 |
| Physical Density (Dot / m²) | 640000 | 589824 | 409600 | 262144 |
| Module Resolution | 200X200 | 192X192 | 160X160 | 128X128 |
| Module Size (mm) | 250X250 | 250X250 | 250X250 | 250X250 |

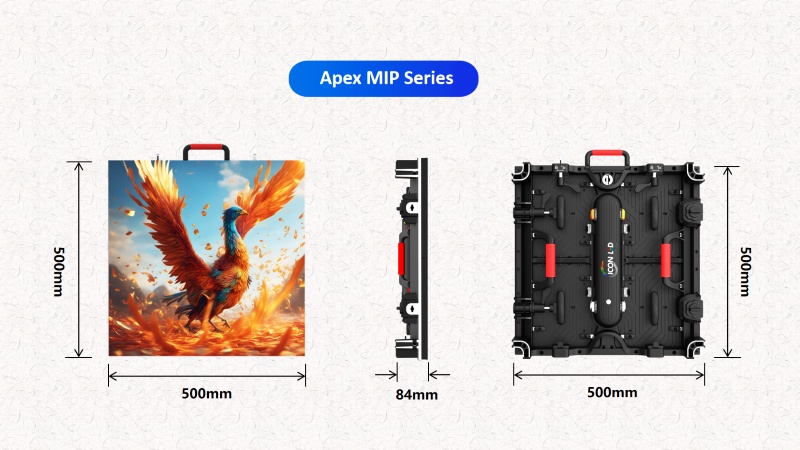

| Cabinet Size (L*H*T/mm) | 500X500 | 500X500 | 500X500 | 500X500 |
| Cabinet Resolution | 400X400 | 384X384 | 320X320 | 256X256 |
| Module QTY (W*H) | 2X2 | 2X2 | 2X2 | 2X2 |
| Single Cabinet weight (kg) | 8 | 8 | 8 | 8 |
| Maintenance Mode | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness (Nits) | 3000-4000 | 3000-4000 | 3000-4000 | 3000-4000 |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° |
| Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/25s | 1/24s | 1/20s | 1/16s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 800 | 800 | 800 | 800 |
| Avg. Power Consumption (W / m²) | 200-300 | 200-300 | 200-300 | 200-300 |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 |
| Input Power | AC90-264V, 47-63Hz | |||
| Wroking Temp/Humidity (℃/RH) | -30~70℃ / 10%~85% | |||
| Storage Temp/Humidity (℃/RH) | -30~70℃ / 10%~85% | |||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
