Tour-M Series Indoor Outdoor Rental LED Screen
Pixel Pitch: P1.5625/ P1.953/ P2.604/ P2.976/ P3.91
LED Type: SMD / GOB

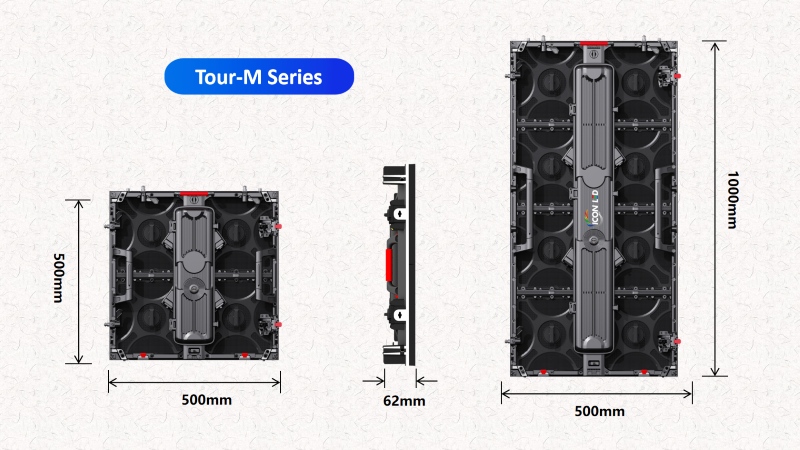

Cabinet Size: 500*500*62mm / 500*1000*62mm
● Ultra-thin and Ultra-light. Portable and good stability.
● Flat surface, arc splicing or 90° angle splicing.
● High refresh rate, high contrast, high grayscale, and stunning image quality.
● Excellent heat dissipation performance. No fan design, absolutely silent operation.

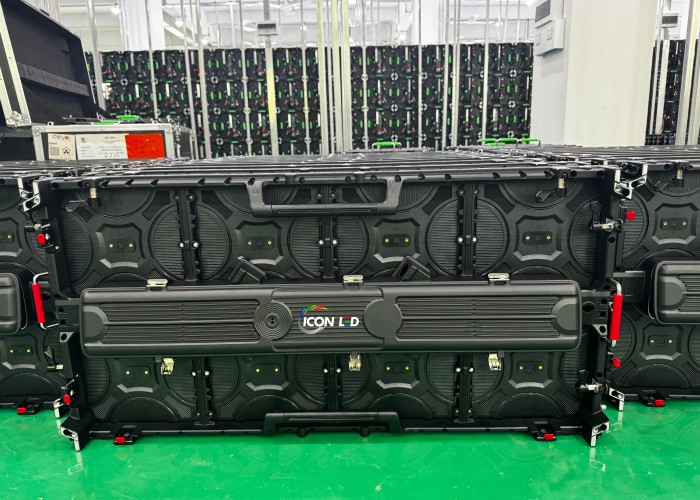

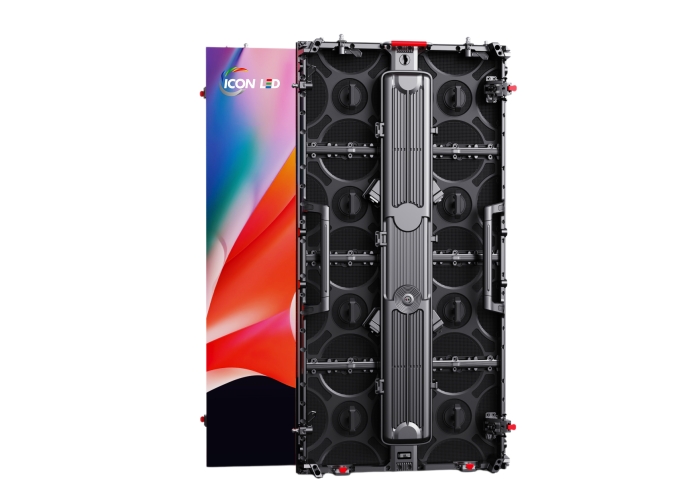

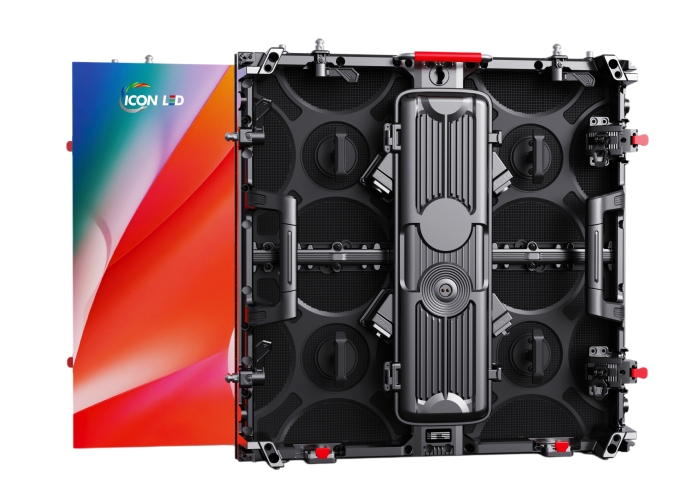

Cabinet Structure

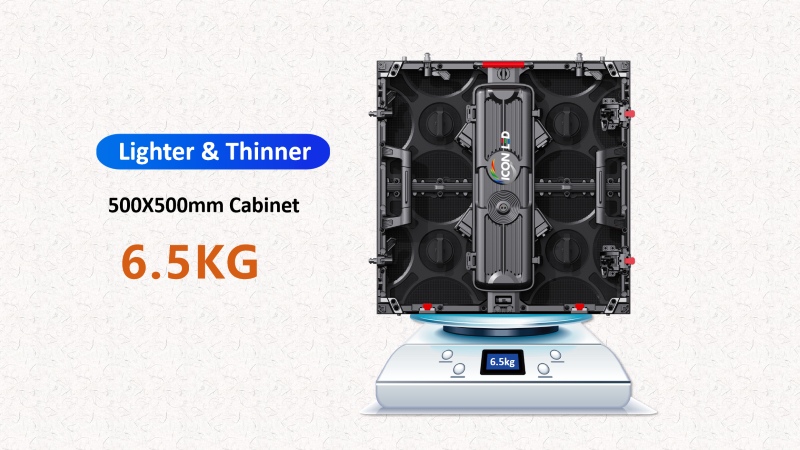

Die-cast aluminum cabinet, 6.5kg / 11.5kg per Indoor cabinet, 7kg / 12kg per outdoor cabinet, lightweight with outstanding structural stability.
The feature of lightweight makes the LED display easy to carry, transport and install, saving a good amount of money on your labor costs.
Application Scenario
ICON LED Tour-M Series rental LED displays are widely deployed for temporary outdoor visual events, including indoor & outdoor concerts, music festivals, sports competitions, brand pop-up launches, outdoor auto shows, municipal carnival celebrations, plaza exhibitions, wedding ceremonies and temporary live streaming venues.

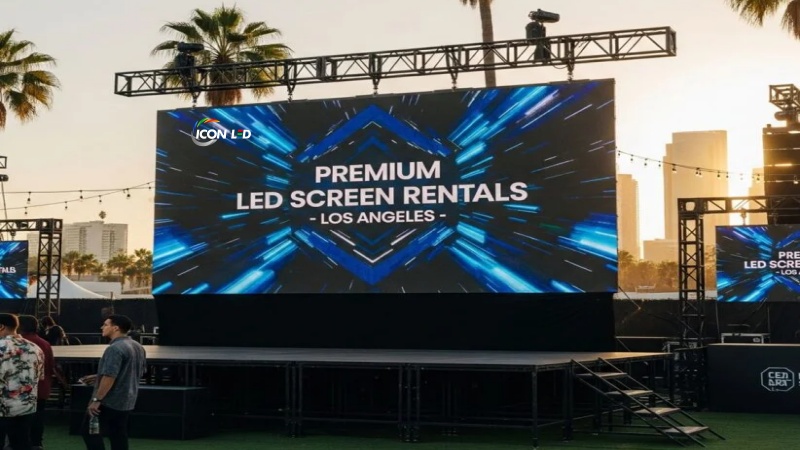

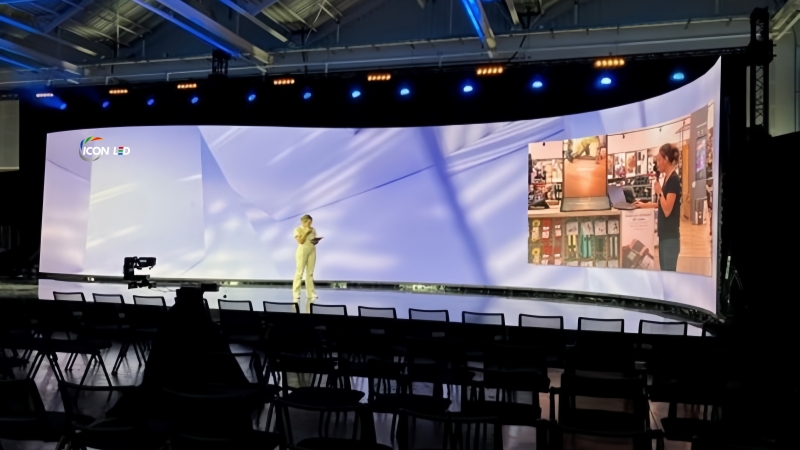

Concert & Live Show Immersive Stage
Mounted on trusses as stage backdrops. High refresh rate removes camera moiré to offer vivid visuals under direct sunlight for live streaming.
Brand Pop-up Events & Auto Shows
ICON LED Fine-pitch high-definition panels show intricate product details. IP65 waterproof performance ensures stable all-day outdoor booth operation.
Key Features

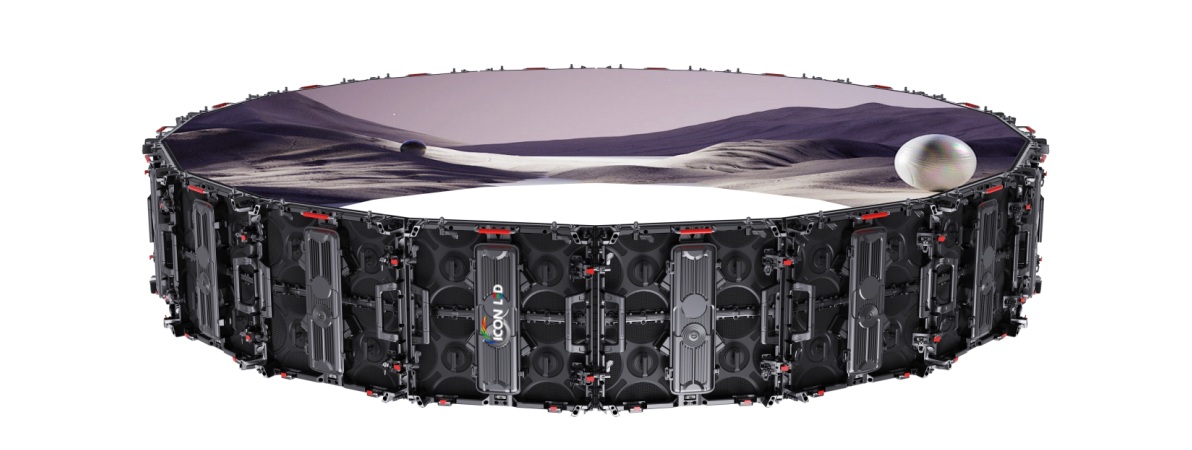

Flat surface | Arc splicing | 90° angle splicing

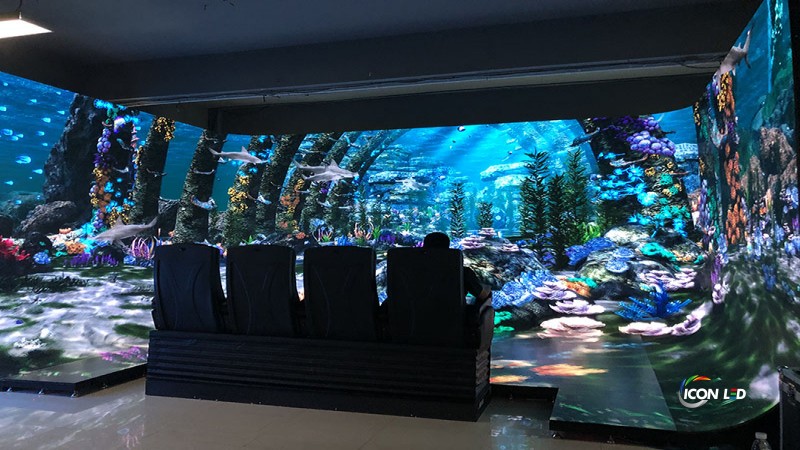

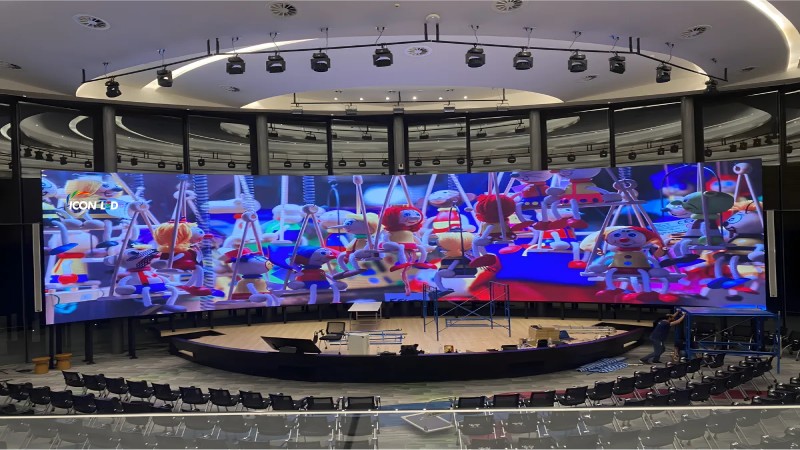

500×500mm / 500×1000mm standard cabinets support seamless splicing into any dimension: flat, curved, concave, convex, irregular special-shaped screens, matching all stage and venue design needs.
Premium Immersive Visual Performance

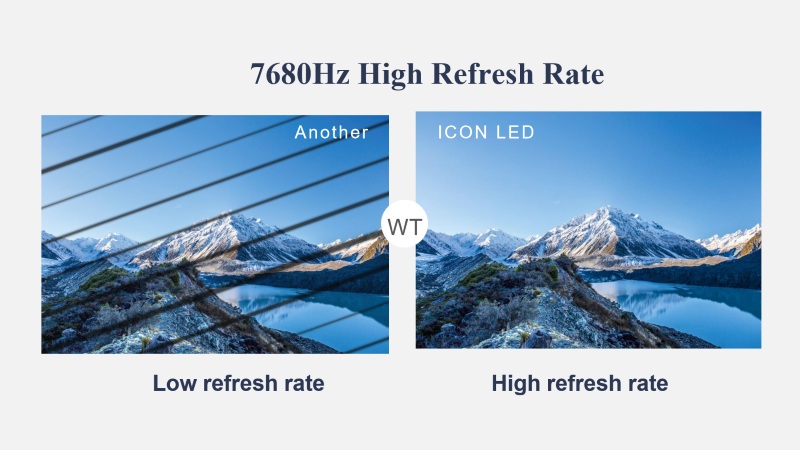

High refresh rate (≥3840Hz, 7680Hz optional), wide color gamut, ultra-wide viewing angle (160° horizontal & vertical). Every audience gets bright, smooth, flicker-free images without color distortion.
Front & Rear Maintenance Optional

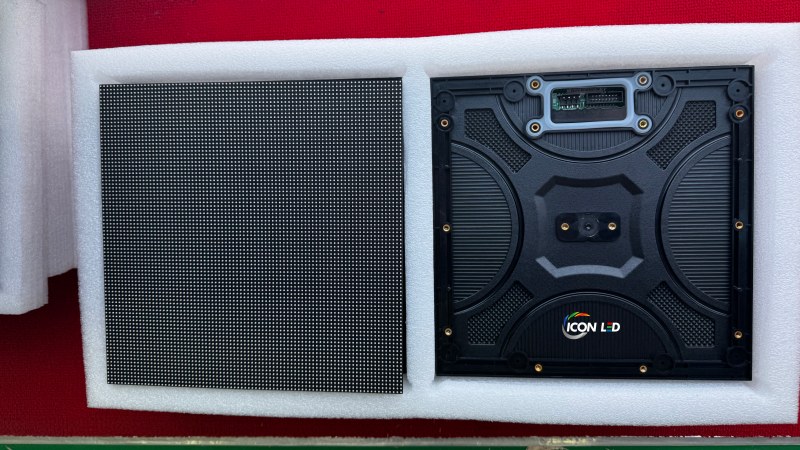

• Support pre/post maintenance, magnetic module.
• Quick replacement, modular maintenance of power box.

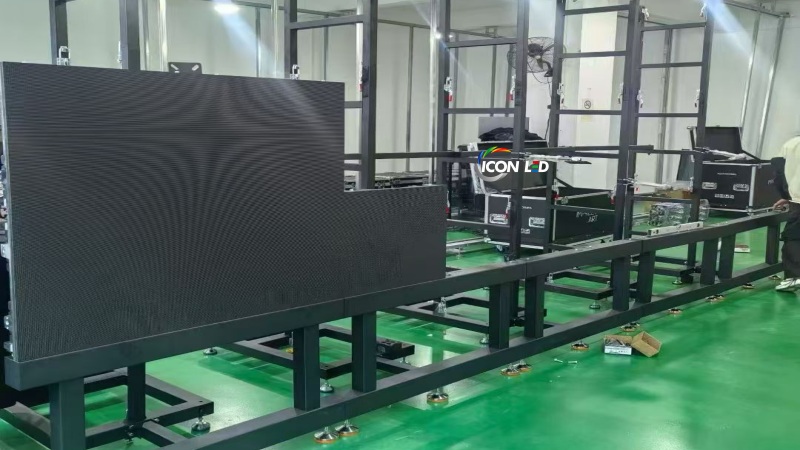

Rental-Oriented Ultra-Fast Installation & Dismantling
Quick-lock magnetic connectors, lightweight single cabinet (≤8kg). 2–3 workers can finish 100㎡ screen assembly within 2–3 hours, saving huge event setup & breakdown time, ideal for multi-city touring events.
Portable & Easy Logistics

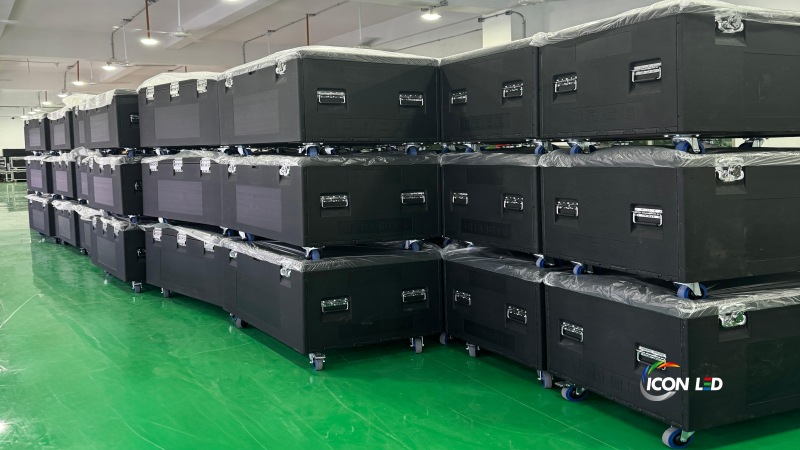

ICON LED adopts a light cabinet design with dedicated flight cases for transportation, anti-collision protection to avoid damage during cross-city touring.
Indoor Rental 500*500mm / 500*1000mm Tour-M Series
| Type | P1.5625 | P1.953 | P2.604 | P2.976 | P3.91 |
| Access / Maintenance | Front | Front | Front | Front | Front |
| LED Model & Type | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Refresh Rate | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy |
| Scan | 1/40 | 1/32 | 1/32 | 46050 | 46038 |
| Density（dot/m²） | 409600 | 262144 | 147456 | 112896 | 65536 |
| Module Pixels (L*H) | 160*160 | 128*128 | 96*96 | 84*84 | 64*64 |
| Module Size (L*H)mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet Size (L*H)mm | 500*500*62mm / 500*1000*62mm | ||||
| Cabinet Type | Die-casting Aluminum | ||||
| Single Cabinet weight (kg) | 6.5KG / 11.5KG | 6.5KG / 11.5KG | 6.5KG / 11.5KG | 6.5KG / 11.5KG | 6.5KG / 11.5KG |
| Max Power (watts / m²) | 420 | 400 | 360 | 340 | 320 |
| Avg Power (watts/m²) | 140 | 132 | 108 | 104 | 96 |
| Weight (kg/m²) | 30 | 30 | 30 | 30 | 30 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP30 | IP30 | IP30 | IP30 | IP30 |
| Grayscale | 14-16bit | 14-16bit | 14-16bit | 14-16bit | 14-16bit |
Outdoor Rental 500*500mm / 500*1000mm Tour-M Series
| Type | P2.604 | P2.976 | P3.91 |
| Access / Maintenance | Rear | Rear | Rear |
| LED Model & Type | SMD1516 | SMD1516 | SMD1921 |
| Refresh Rate | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Brightness | 4000nits | 4000nits | 4000nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° |
| Control System | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy |
| Scan | 46046 | 46043 | 1/16 OR 1/8 |
| Density（dot/m²） | 147456 | 112896 | 65536 |
| Module Pixels (L*H) | 96*96 | 84*84 | 64*64 |
| Module Size (L*H)mm | 250*250mm | 250*250mm | 250*250mm |
| Cabinet Size (L*H)mm | 500*500*86mm / 500*1000*86mm | ||
| Cabinet Type | Die-casting Aluminum | ||
| Single Cabinet weight (kg) | 7KG / 12KG | 7KG / 12KG | 7KG / 12KG |
| Max Power (watts / m²) | 640 | 640 | 640 |
| Avg Power (watts/m²) | 192 | 192 | 192 |
| Weight (kg/m²) | 32 | 32 | 32 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP65 | IP65 | IP65 |
| Grayscale | 14-16bit | 14-16bit | 14-16bit |
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan.
Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
