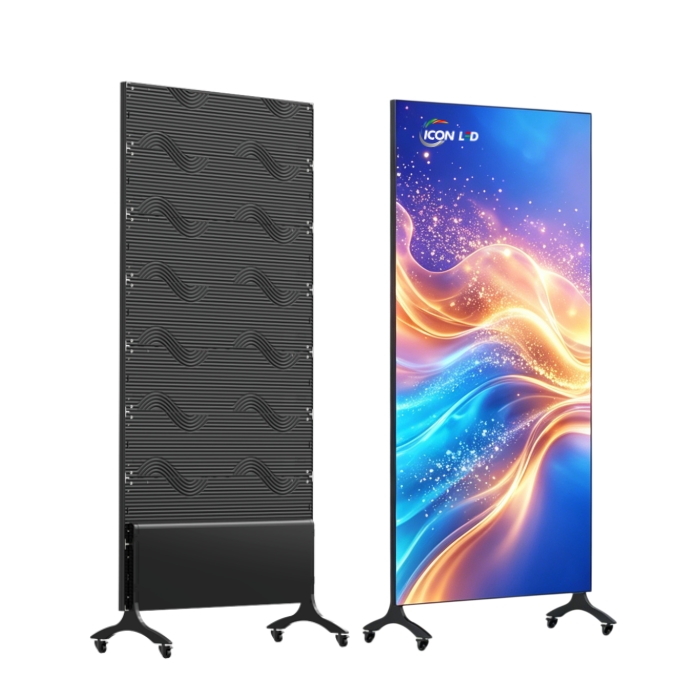

IMAX Series Single-sided Foldable Indoor LED Poster Screen
Pixel Pitch: P1.25/ P1.56/ P1.95/ P2.5/ P2.604/ P2.976/ P3.91
LED Type: SMD / GOB
Display Size: 1000X2000X33mm / 750X2000X33mm
● Plug and Play.
● Poster with casters, freely movable.
● Cloud remote content update.
● Smart split-screen & cascading, multi-use in one screen.

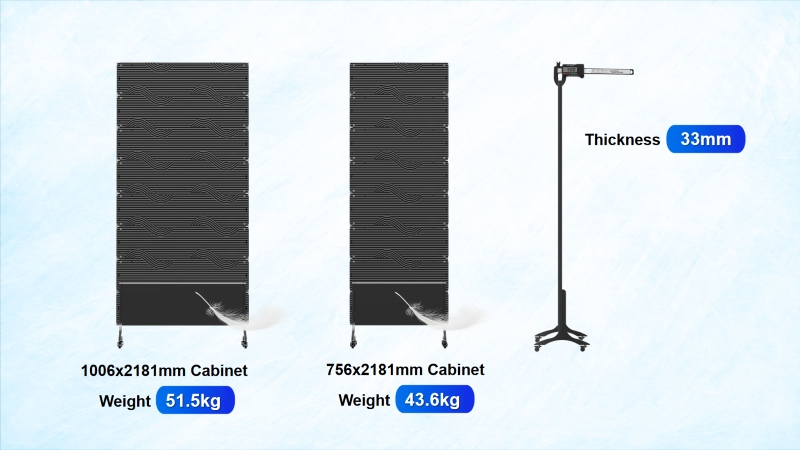

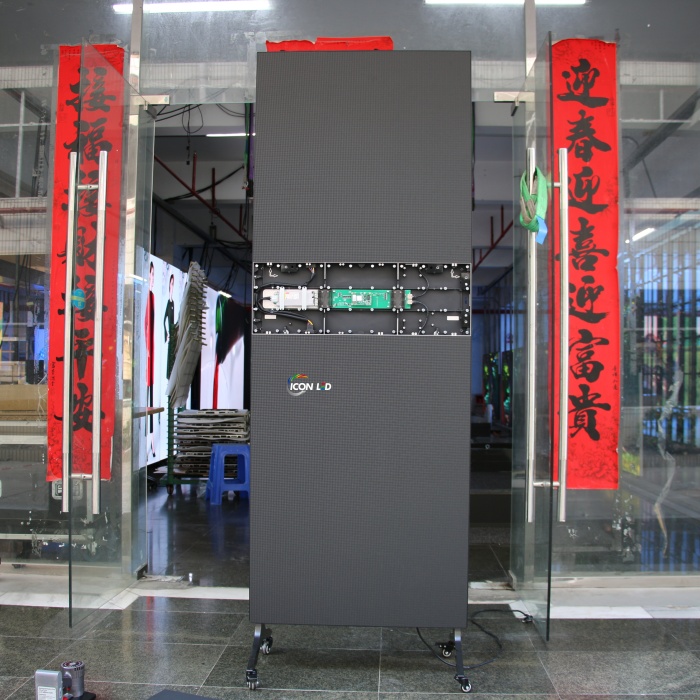

Cabinet Structure

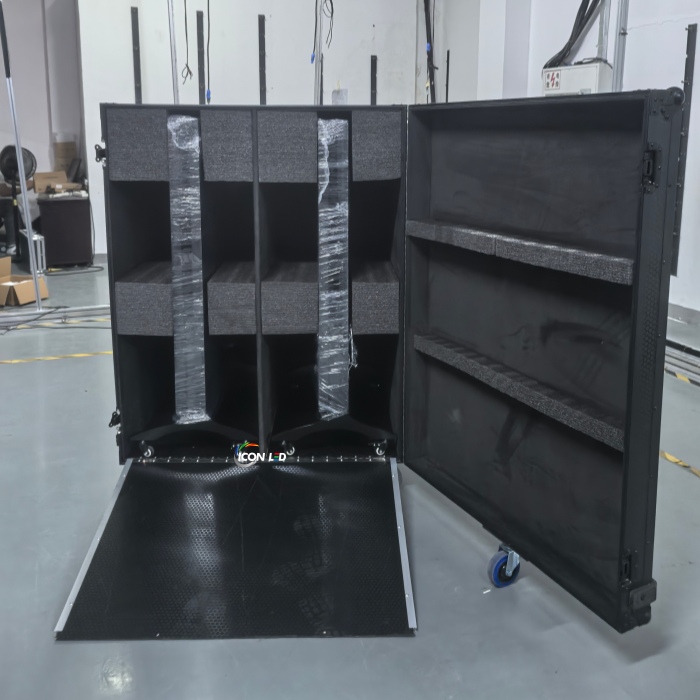

Ultra-thin and Ultra-light. Weighing only 43.6kg for the 750X2000mm display size, these posters are perfect for a variety of settings. With a thickness of just 33mm, they blend seamlessly into any environment without taking up much space. Foldable design, easy to store and transport.

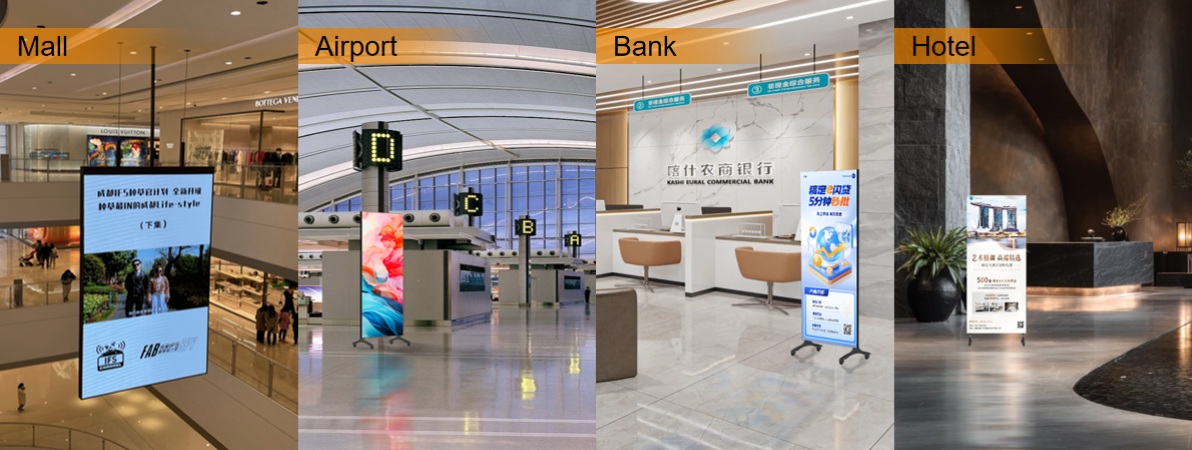

Application Scenario
Installing LED poster displays in stores, shopping malls, exhibition halls, trade show booths,
airport & high-speed railway waiting lobbies and events will make your advertisements or information very eye-catching.
Key Features

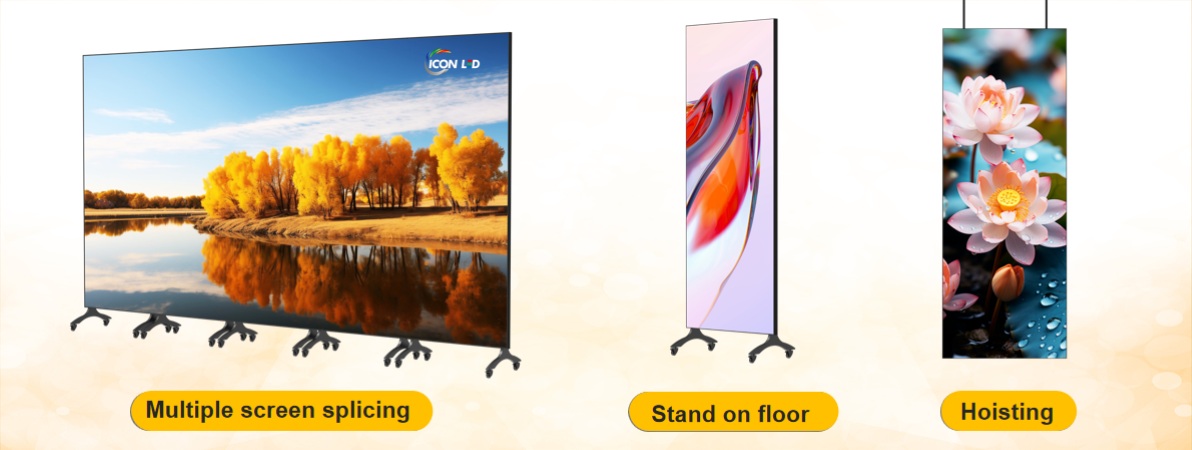

Wheel-mounted movable design, plug-and-play, cloud remote content update, and support multiple installation method:
hoisting, single stand display, as well as seamless connection and cascading of multiple units.
Perfect for temporary events and flexible commercial advertising.

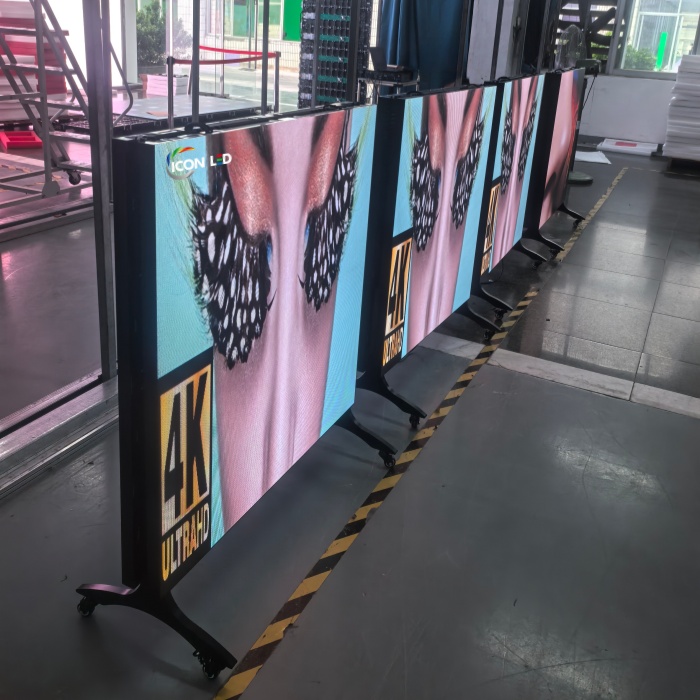

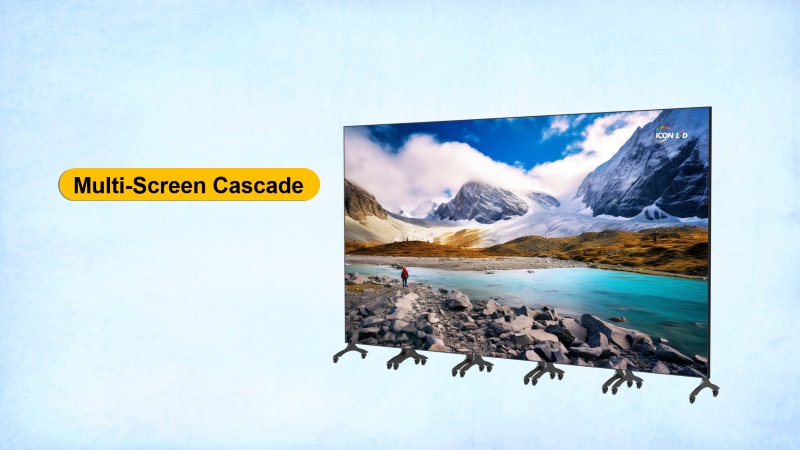

Multi-Screen Cascade Connection
Supports multi-screen cascading, with a resolution up to 2K, allowing up to 8 screens to be connected.

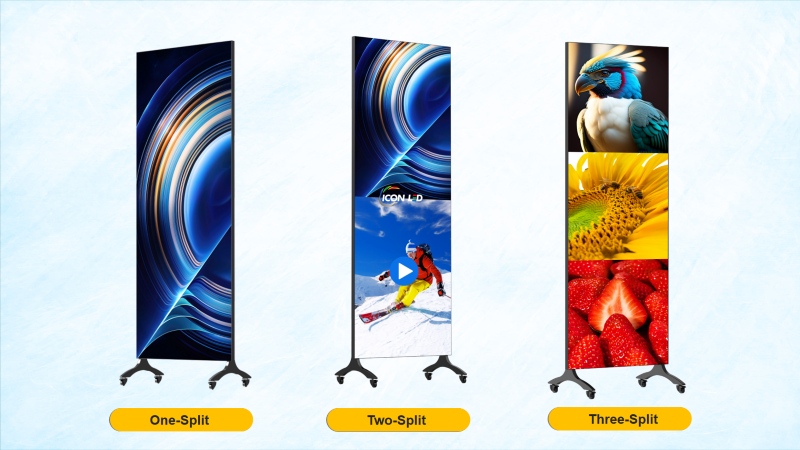

Smart Split-Screen Multi-Use in One Screen
Multiple split-screen modes, with video and images/text playing synchronously, meeting various needs.
• One-Split
• Two-Split
• Three-Split
IMAX Series Single-sided Foldable Indoor LED Poster Screen
| Pixel Type | P1.25 | P1.56 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| LED Packing | SMD1010(GOB) | SMD1010/1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical Density (Dot / m²) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Screen Resolution | 800X1600 600X1600 | 640X1280 480X1280 | 512X1024 384X1024 | 400X800 300X800 | 384X768 288X768 | 336X672 252X672 | 256X512 192X512 |
| Module Size (L*Hmm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |

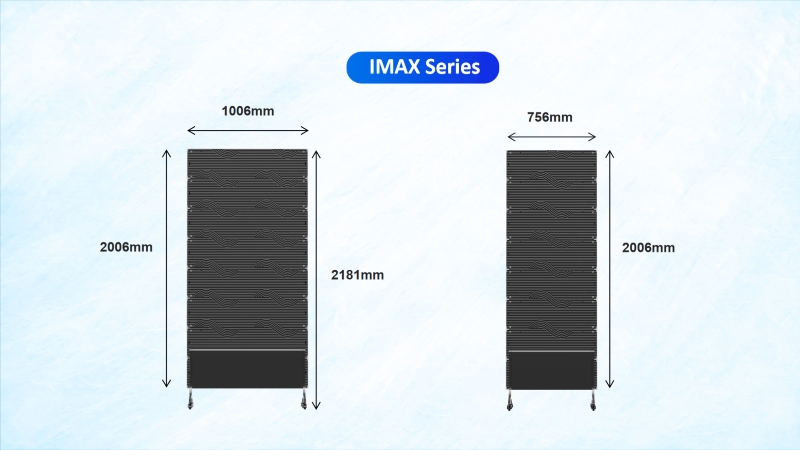

| Display Size (L*H*T/mm) | 1000X2000X33 750X2000X33 | 1000X2000X33 750X2000X33 | 1000X2000X33 750X2000X33 | 1000X2000X33 750X2000X33 | 1000X2000X33 750X2000X33 | 1000X2000X33 750X2000X33 | 1000X2000X33 750X2000X33 |
| Poster Size (L*H*T/mm) | 1006X2181X33 756X2181X33 | 1006X2181X33 756X2181X33 | 1006X2181X33 756X2181X33 | 1006X2181X33 756X2181X33 | 1006X2181X33 756X2181X33 | 1006X2181X33 756X2181X33 | 1006X2181X33 756X2181X33 |
| Single Poster weight (kg) | 51.5kg / 43.6kg | 51.5kg / 43.6kg | 51.5kg / 43.6kg | 51.5kg / 43.6kg | 51.5kg / 43.6kg | 51.5kg / 43.6kg | 51.5kg / 43.6kg |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness (Nits) | 450-600 | 450-600 | 650-800 | 700-800 | 700-800 | 700-800 | 800-1000 |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/50s | 1/40s | 1/32s | 1/25s | 1/32s | 1/28s | 1/16s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Avg. Power Consumption (W / m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Ingress Protection (IP) | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | ||||||
| Wroking Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | ||||||
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | ||||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
