FL320 Arc Series Flexible LED Screen
Pixel Pitch: P1.25/ P1.538/ P1.86/ P2/ P2.5/ P3.076/ P4
LED Type: SMD / GOB

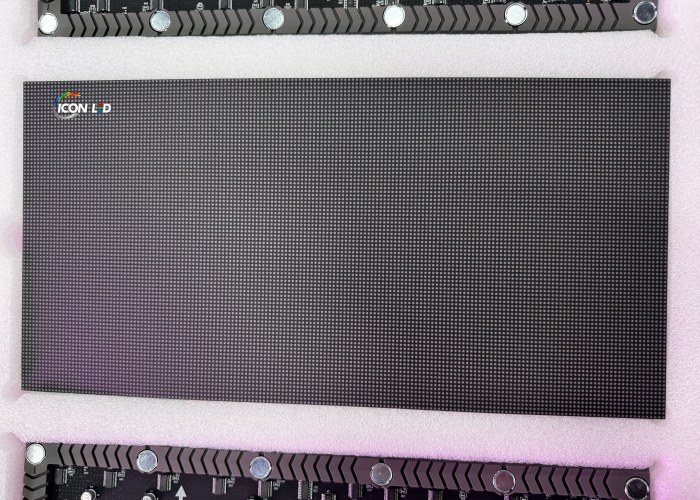

Module Size: 320mm ×160mm with Customized Cabinet

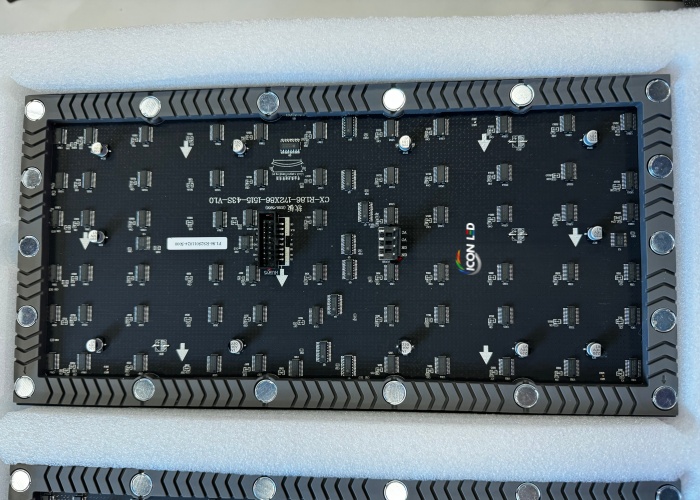

● Full front maintenance, easy to install
● Ultra thin, Ultra light, UHD, more natural color
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow

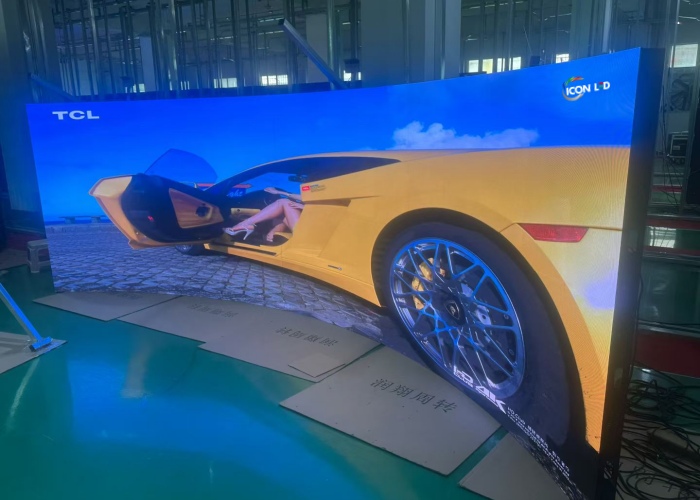

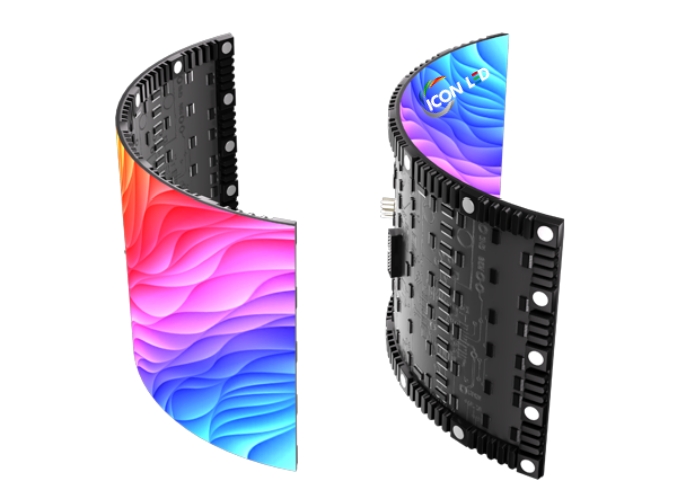

● Inner & outer arc splicing
● Creative shape customization
Application Scenario
ICON LED indoor LED flexible modules act as ideal solutions for curved creative displays, immersive exhibition visuals, custom art installations and temporary rental events. Featuring bendable lightweight design and easy disassembly, they are widely applied for curved mall pillars, dome immersive showrooms, exhibition creative booths, curved front desk & hotel decorative walls.

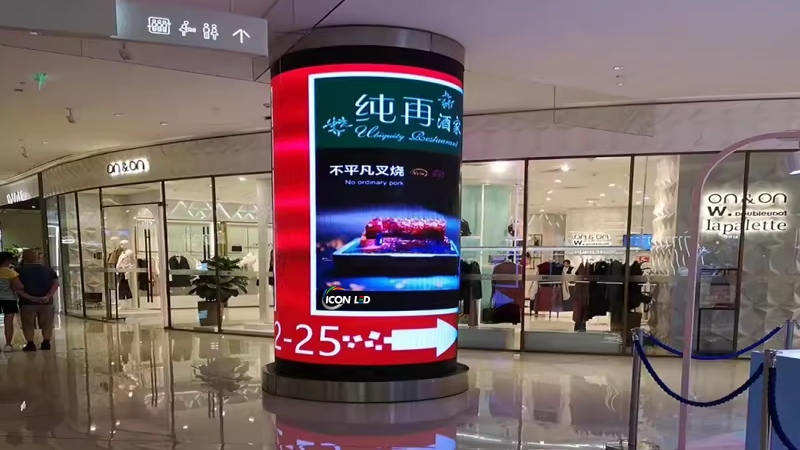

Curved cylindrical pillars in shopping malls
The flexible soft module bends seamlessly around round pillars, delivering wrap-around advertising without visible splicing gaps, greatly boosting visual appeal for shoppers.

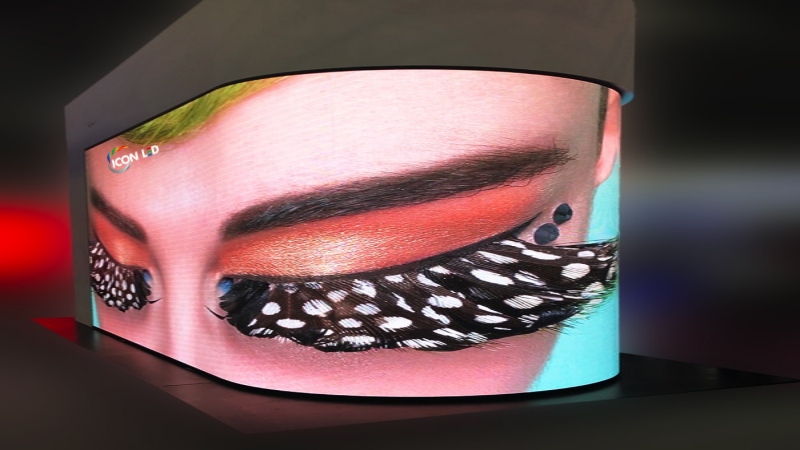

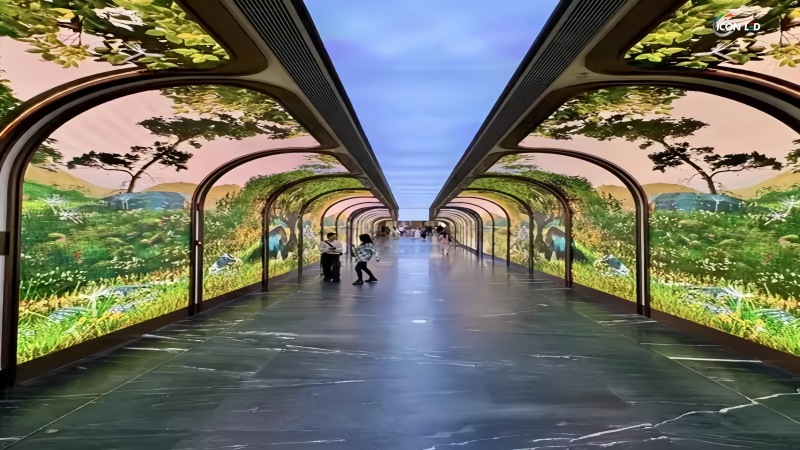

CoImmersive dome & curved exhibition halls
It supports spherical and large arc molding, creating all-around immersive visual effects to enhance visitors’ experience in showrooms and digital museums.
Irregular creative booths for exhibitions
Lightweight and bendable for custom irregular art shapes; easy to assemble, disassemble and reuse for short-term rental events.

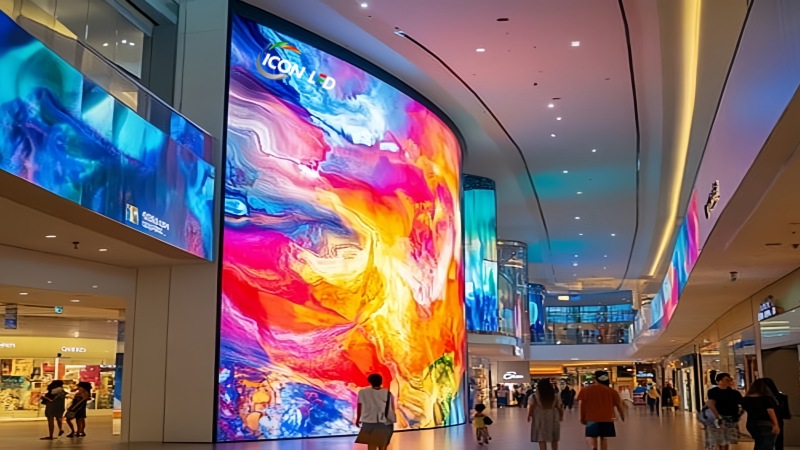

Curved shopping mall LED walls
Ultra-thin flexible design fits narrow indoor curved spaces perfectly, matching high-end interior decoration without heavy supporting frames.
FL320 Arc Series Flexible LED Screen
| Type | P1.25 | P1.538 | P1.86 | P2 | P2.5 | P3.076 | P4 |
| Cabinet Type | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Access / Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| LED Model & Type | SMD/GOB 1010 | SMD/GOB 1212 | SMD/GOB 1515 | SMD/GOB 1515 | SMD/GOB 1515 | SMD/GOB 2121 | SMD/GOB 2121 |
| Refresh | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz | 3840Hz-7680Hz |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy |
| Scan | 64 | 52 | 43 | 40 | 32 | 26 | 20 |
| Density（dot/m²） | 640000 | 422500 | 288906 | 250000 | 160000 | 105625 | 62500 |
| Module Pixels (L*H) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 |
| Module Size (L*H)mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module Depth (mm) | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm | 7mm |
| Max Power (watts / m²) | 520 | 472 | 423 | 390 | 358 | 293 | 277 |
| Avg Power (watts/m²) | 195 | 189 | 163 | 153 | 146 | 114 | 104 |
| Module Weight (kg/pcs) | 0.25kg | 0.25kg | 0.25kg | 0.25kg | 0.25kg | 0.25kg | 0.25kg |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Grayscale | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
