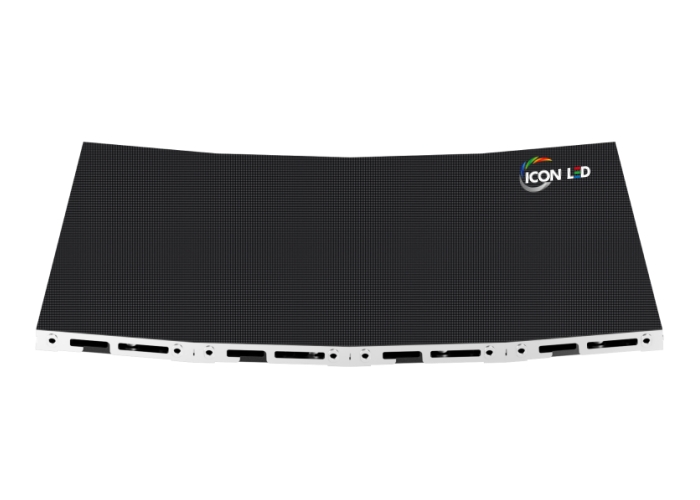

Islim Arc Series Flexible LED Screen
Pixel Pitch: P0.625/ P0.78/ P0.9375/ P1.25/ P1.56/ P1.875
LED Type: SMD / GOB / COB
Cabinet Size: 600mm × 337.5mm × 27.5mm
● Full front maintenance, easy to install.
● Ultra thin, Ultra light, UHD, more natural color.
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow.
● High-precision die-casting aluminum cabinet, excellent cooling design.

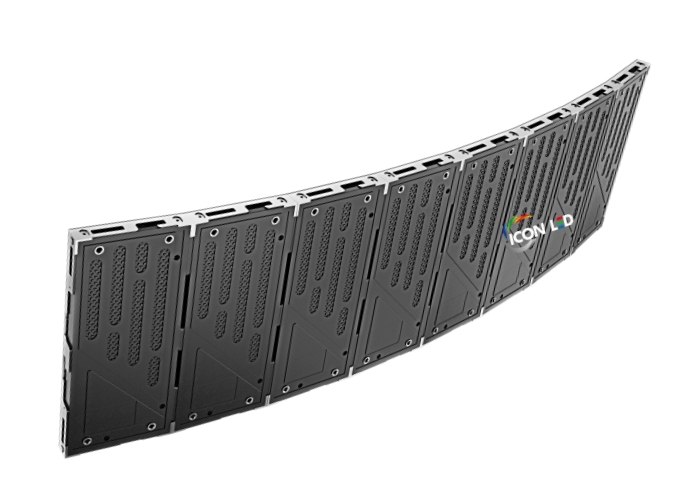

● Inner & outer arc splicing.

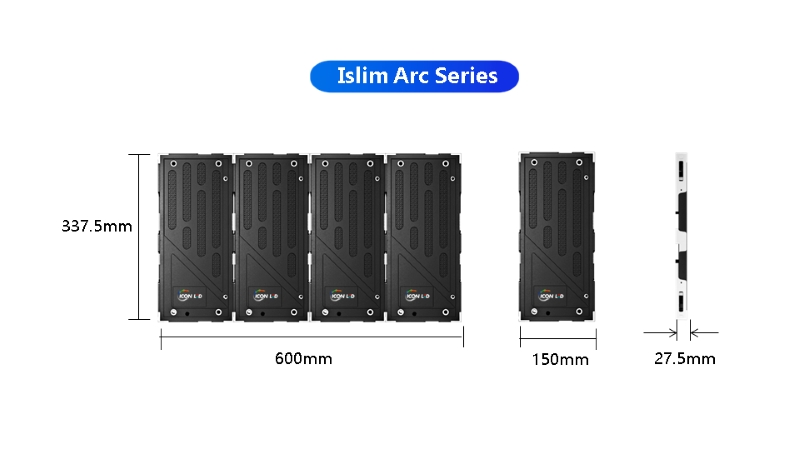

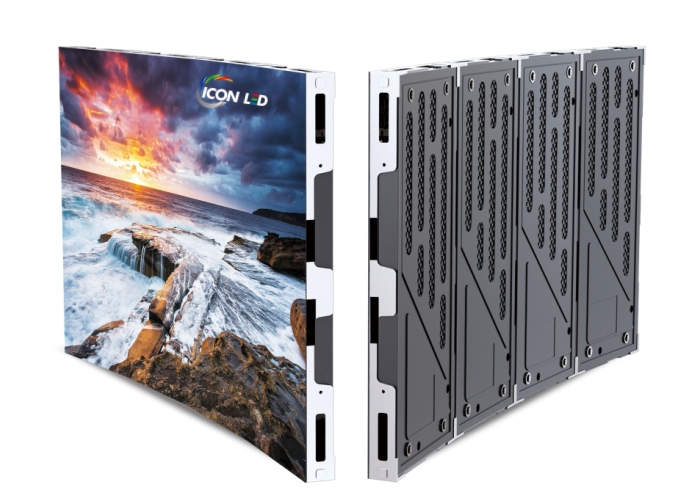

Cabinet Structure

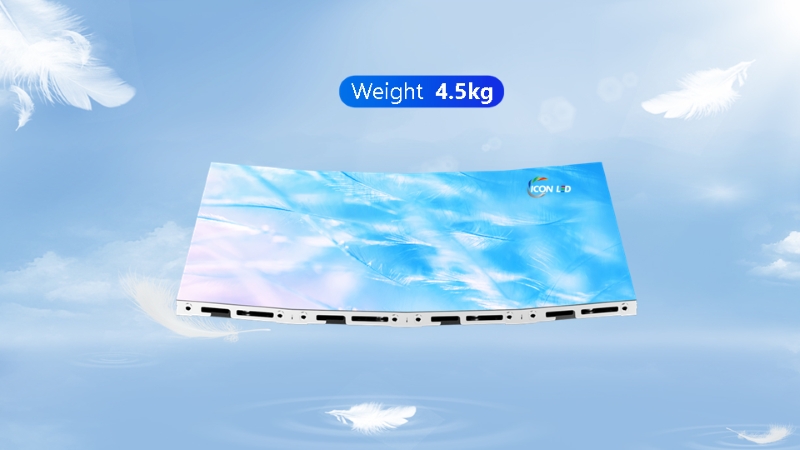

Ultra-thin and Ultra-light. Portable and good stability with a weight of 4.5kg and thickness of 27.5mm.
The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.

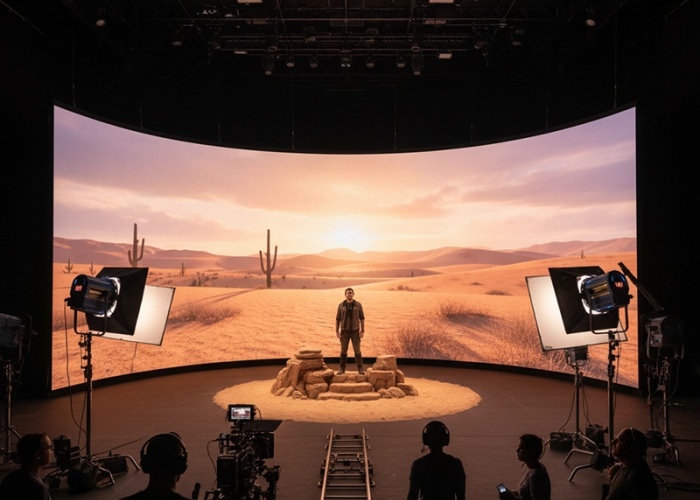

Application Scenario

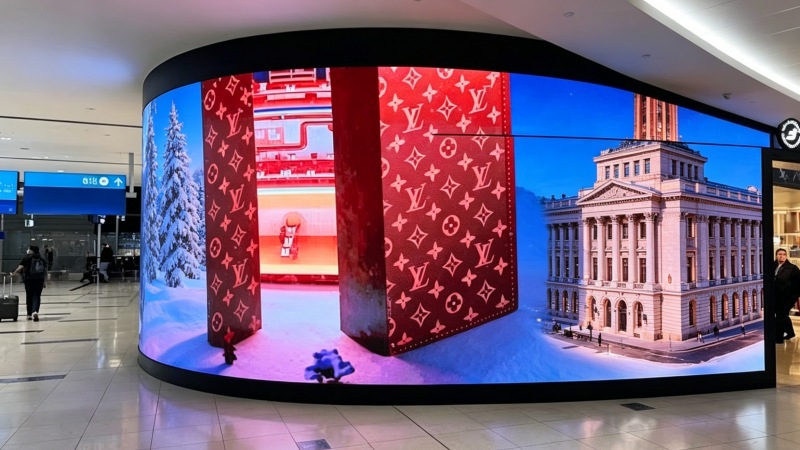

ICON indoor LED displays serve as premium solutions for commercial exhibition, data visualization, meeting rooms, consumer-grade applications and more. It is widely deployed across numerous scenarios including conference room,command and control center,monitoring room,、technology exhibition hall,museum,shopping center,studio,high-end commercial display and other scenarios.

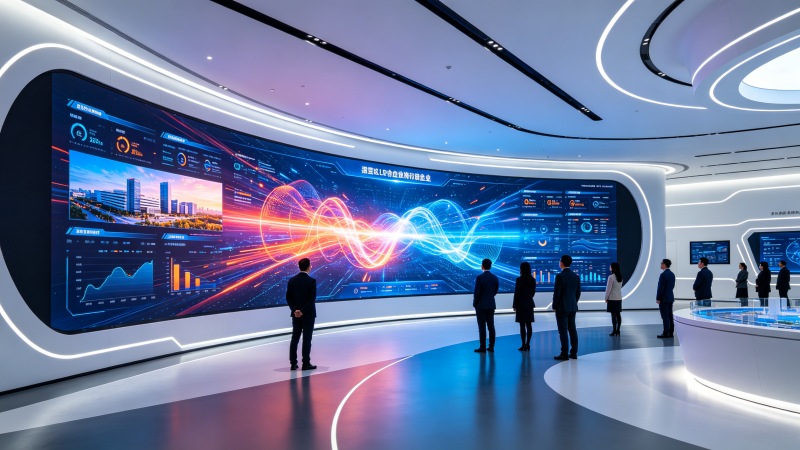

Exhibition Room - Space Utilization & Aesthetic Design
The large curved screen is a highly attractive visual focal point in itself. It can play immersive corporate promotional videos, dynamic product displays, or brand stories, making visitors feel as if they are part of the scene and leaving a deep impression.

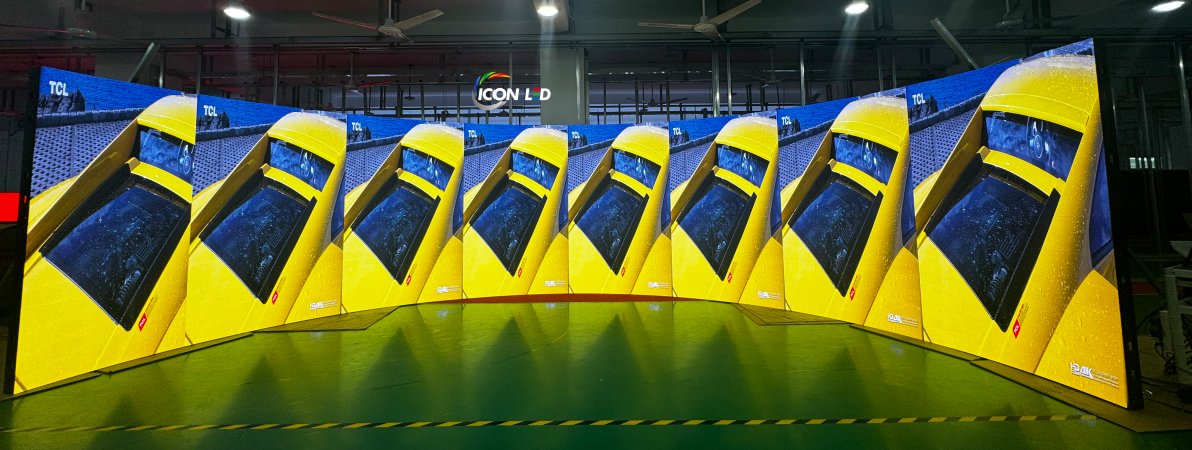

Islim Arc Series are supporting inner and outer arc splicing, creating various curved shapes.

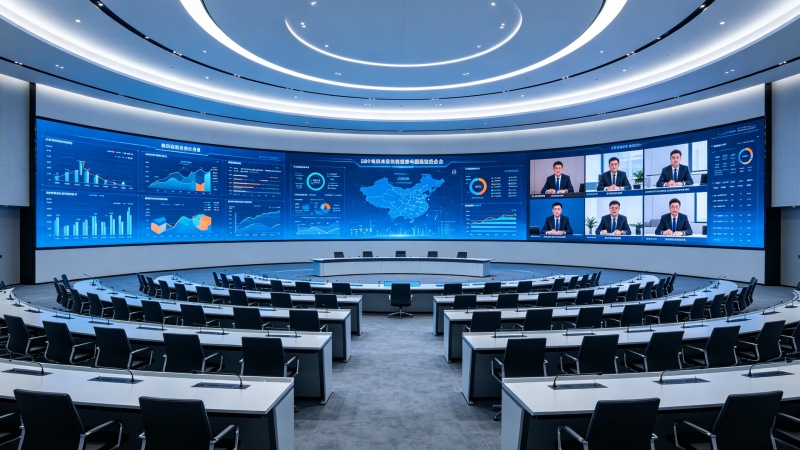

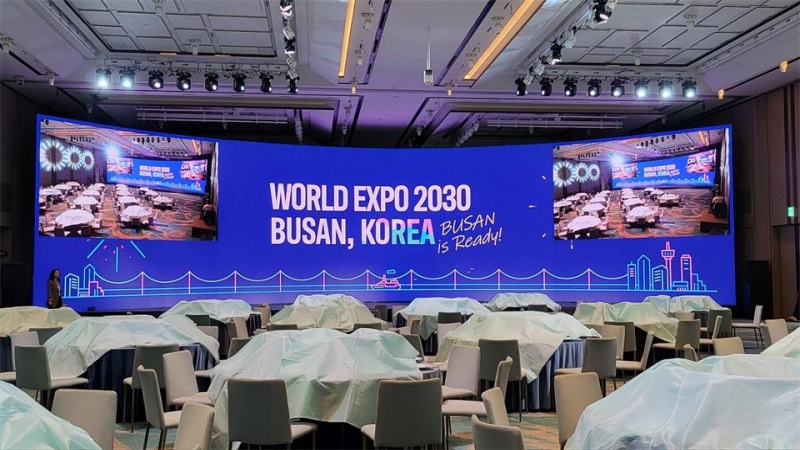

Conference Hall - Eye-friendly Viewing, No Blind Spots
The wrap-around screen design creates a stronger sense of immersion, helping to enhance the attention and engagement of participants.
ICON LED features a CNC high-precision die-cast aluminum casing, a rigid connection design, a shock-resistant concave platform, and multi-dimensional improvements to enhance the flatness of the screen, making data presentations more vivid and realistic.
Key Features
Seamless Ultra-HD Display
Islim Arc Series supports SMD/GOB/COB optional, ultra-fine pitches (P0.78–P1.875mm) for seamless ultra-HD display.
It features superior dust/moisture resistance, optimized heat dissipation, uniform color and high contrast
for premium visual experience in large splicing screens.
7X24 hours running without interruption
Configurable dual backup version (Dual card dual electric) to ensure uninterrupted power supply.Signal not lost, more stable and reliable.
The excellent heat dissipation performance and energy-saving design ensures the stability of long-term continuous operation.

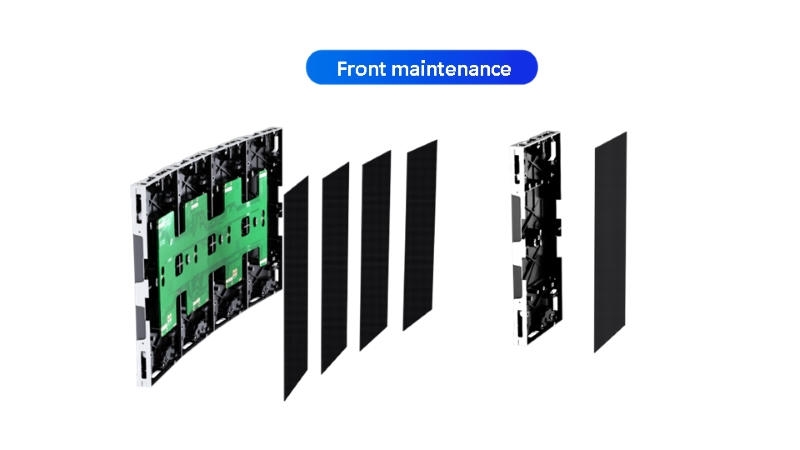

Front maintenance
Islim Arc Series supports full front maintenance, easy to install and maintain.
It takes a person just 10 minutes to replace the LED module. The operation and maintenance cost is friendly.
Islim Arc Series Flexible LED Screen
| Pixel Type | P0.78 | P0.9375 | P1.25 | P1.5625 | P1.875 | P2.5 |
| Pixel Pitch (mm) | 0.78 | 0.9375 | 1.25 | 1.5625 | 1.875 | 2.5 |
| Dimension Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| LED Packing | COB | COB | SMD1010 / COB | SMD1010 / 1212 / COB | SMD1010 / 1515 / COB | SMD1010 / GOB |
| Physical Density (Dot / m²) | 1638400 | 1137778 | 640000 | 409600 | 284444 | 160000 |
| Module Resolution | 192X216 | 160X180 | 120X270 | 96X216 | 80X180 | 60X135 |
| Module Size (mm) | 150X168.75 | 150X168.75 | 150X337.5 | 150X337.5 | 150X337.5 | 150X337.5 |
| Cabinet Size (L*H*T/mm) | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 |
| Cabinet Resolution | 768X432 | 640X360 | 480X270 | 384X216 | 320X180 | 240X135 |
| Module QTY (W*H) | 4X2 | 4X2 | 4X1 | 4X1 | 4X1 | 4X1 |
| Single Cabinet weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance Mode | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness Calibration | Have | Have | Have | Have | Have | Have |
| Brightness (Nits) | >=600nits | >=600nits | >=600nits | >=600nits | >=600nits | >=600nits |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/64s | 1/60s | 1/45s | 1/48s | 1/45s | 1/30s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 350 | 350 | 350 | 350 | 350 | 350 |
| Avg. Power Consumption (W / m²) | 100 | 100 | 100 | 100 | 100 | 100 |
| Ingress Protection (IP) | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | |||||
| Wroking Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | |||||
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | |||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
