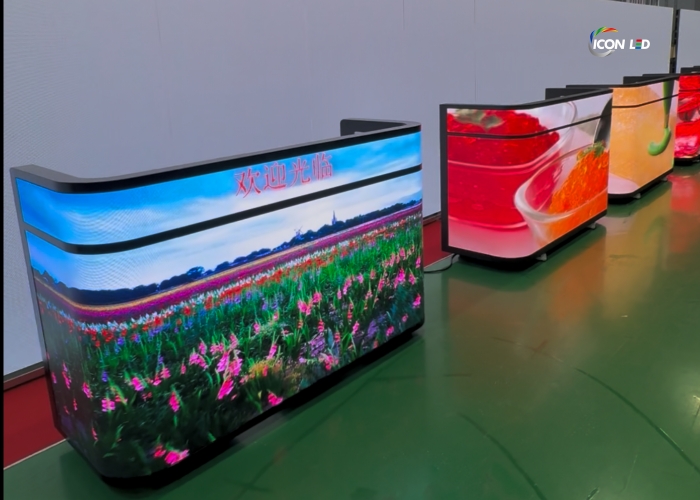

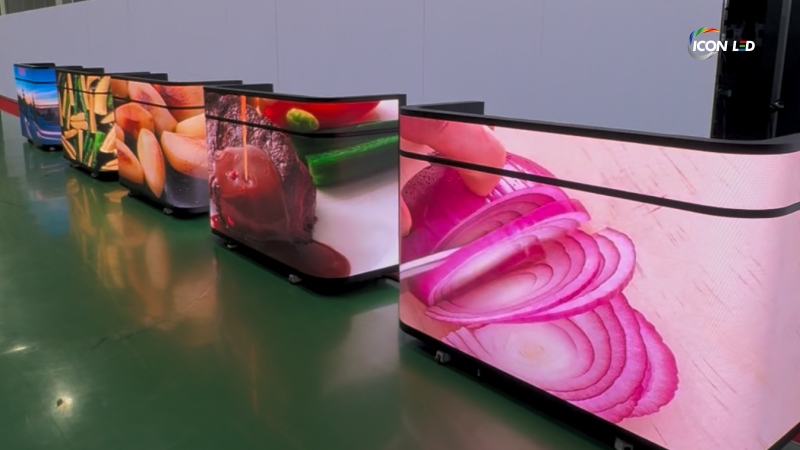

Meta Series LED Counter Desk Screen
Pixel Pitch: P1.25/ P1.538/ P1.86/ P2/ P2.5
LED Type: GOB
Display Size: 2560mm × 960mm

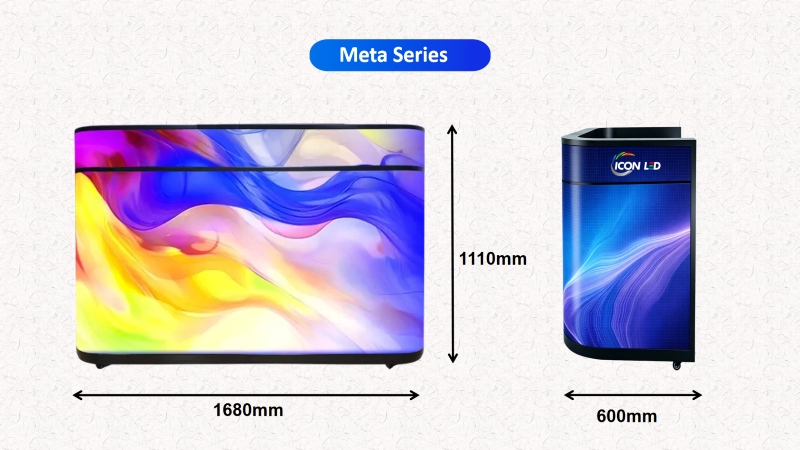

Cabinet Size(L* W* H): 1680* 600*1110mm
● Plug-and-play.
● Cabinet with casters, freely movable.
● Cloud remote content update.
● Full front maintenance, easy to install
Cabinet Structure
The front screen is assembled by standard magnetic GOB encapsulated modules (320×160mm). Tool-free front maintenance enables quick disassembly and replacement. Full glue sealing on module surfaces delivers dustproof, splash-proof and anti-collision performance.

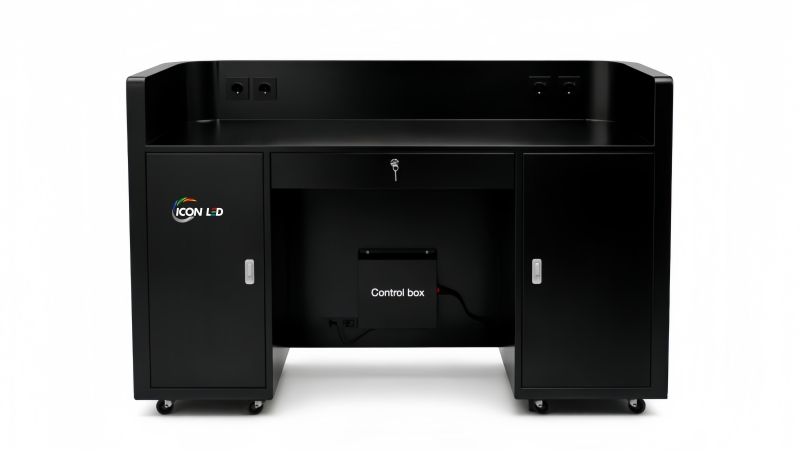

A double-door maintenance compartment is set at the rear of the cabinet with partitioned internal layout.
Application Scenario
Installing LED counter desk screen in stores, shopping malls, exhibition halls, trade show booths and nightclub bars will make your advertisements or information very eye-catching.

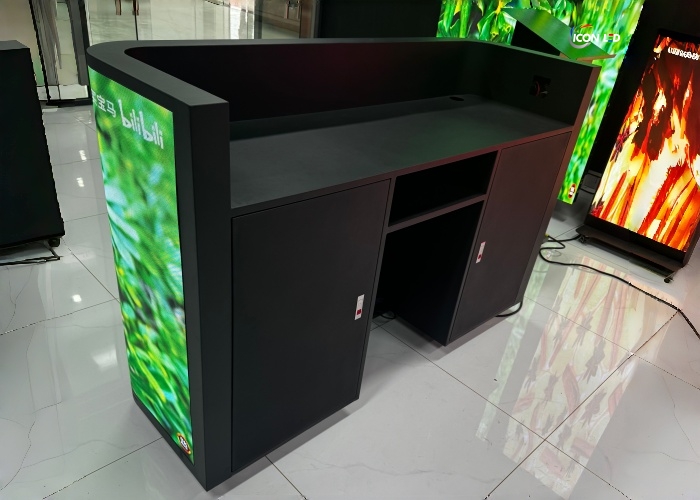

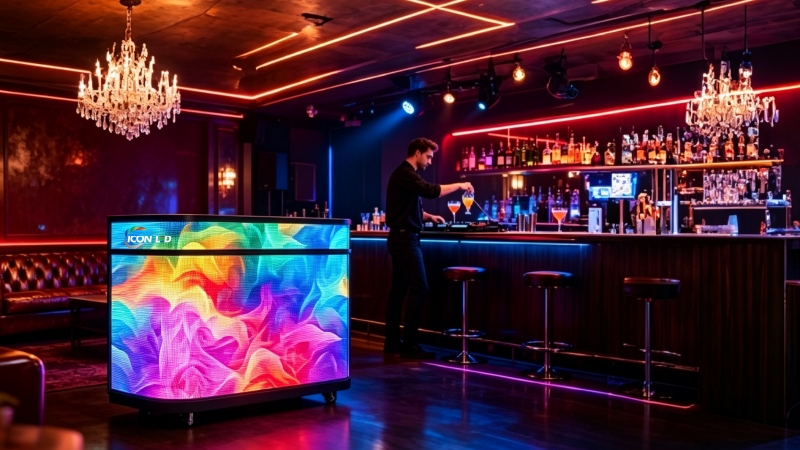

Bar & Nightclub DJ Counter
Specially designed for KTVs, lounges and electronic music event DJ stations. It plays dynamic neon visuals, drink menus and atmosphere effects.
GOB waterproof coating resists liquid splashes, while curved shapes create immersive entertainment visuals.

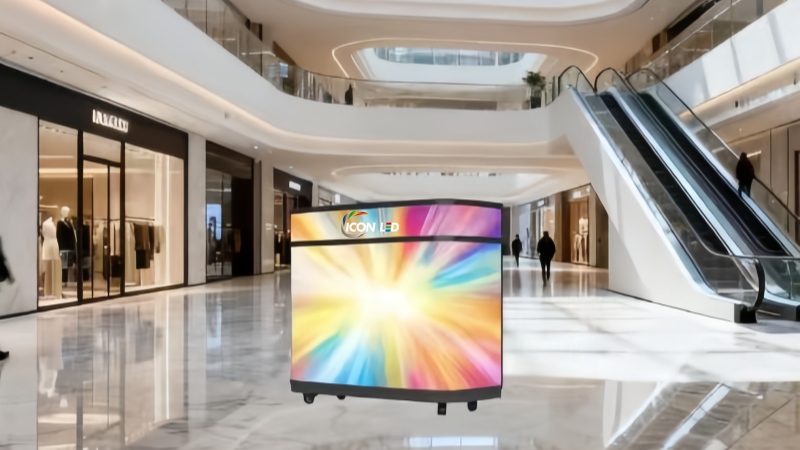

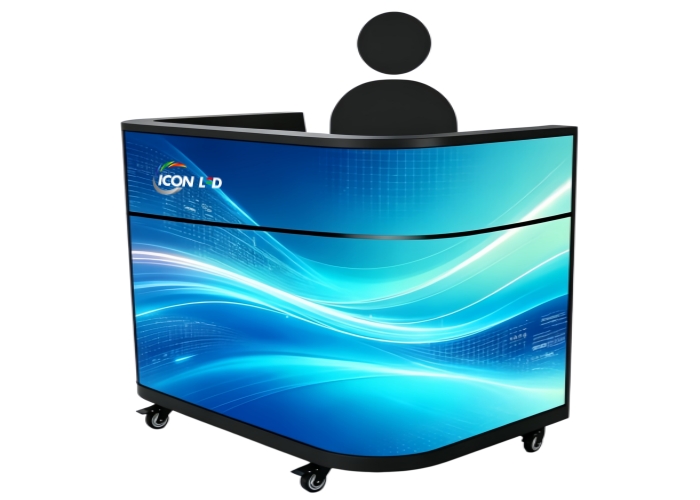

Shopping Mall Retail Checkout Counter
Deployed in shopping malls, beauty stores and streetwear shops. It cycles new arrivals, limited-time discounts and membership promotions.
High-definition close-range display delivers marketing messages to customers queuing for checkout and boosts sales conversion.
Meta Series LED Counter Desk Screen
| Type | P1.25 | P1.538 | P1.86 | P2 | P2.5 |
| LED Model & Type | GOB1010 | GOB1212 | GOB1515 | GOB1515 | GOB1515 |
| Refresh | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° |
| Scan | 64s | 52s | 43s | 40s | 32s |
| Density（dot/unit） | 80530 | 53162 | 36352 | 31457 | 20132 |
| Module Pixels (L*H) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Module Size (L*H)mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Module QTY (pcs) | 48 | 48 | 48 | 48 | 48 |
| Display size (m²) | 2.4576 | 2.4576 | 2.4576 | 2.4576 | 2.4576 |
| Max Power (watts/unit) | 1278 | 1160 | 1040 | 958 | 879 |
| Avg Power (watts/unit) | 479 | 465 | 400 | 376 | 359 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP43 | IP43 | IP43 | IP43 | IP43 |
| Grayscale | ≥14bit | ≥14bit | ≥14bit | ≥14bit | ≥14bit |
| Cabinet Type | Matte black with anti-fingerprint coating. Rigid iron structure cabinet. | ||||
| Access / Maintenance | Magnet Front Maintenance | ||||
| Power Supply | 110-240V AC with stable output protection. | ||||
| Connectivity | Wi-Fi, USB, HDMI, optional 4G. | ||||
Packaging and Delivery

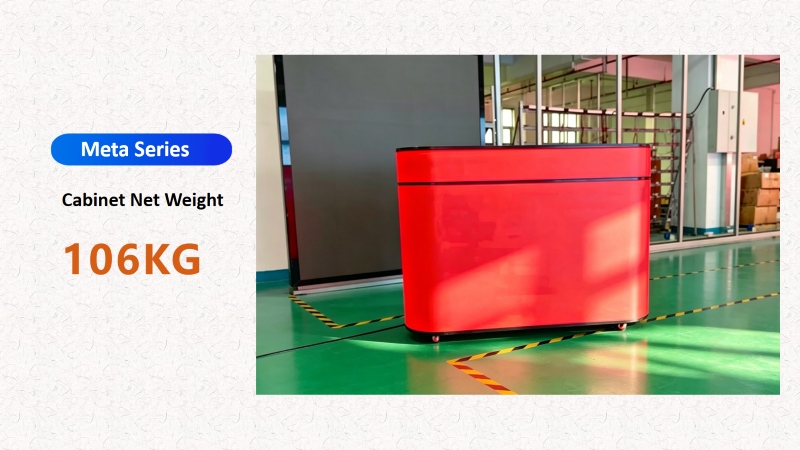

| Cabinet Net Weight(kg) | 106 | 106 | 106 | 106 | 106 |

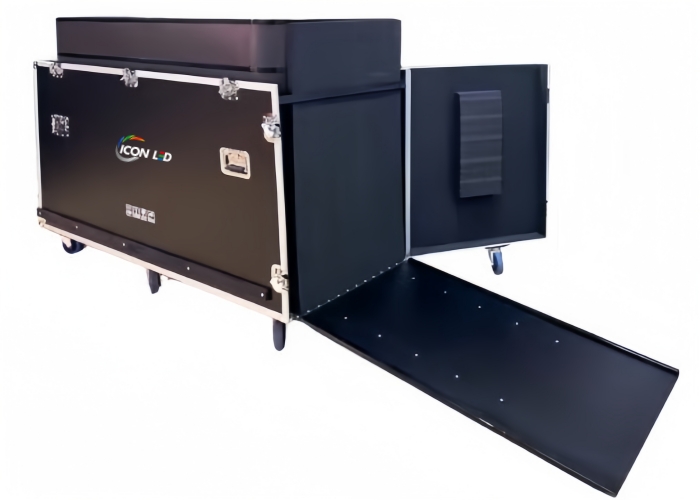

| Gross Weight(kg) with Flightcase | 195 | 195 | 195 | 195 | 195 |
| Cabinet Size (mm) | L 1680mm* W 600mm*H 1110mm | ||||
| Packing Size (mm) | L 1930mm*W 710mm*H 1320mm | ||||
| Components | 1.Counter Desk; 2.Main signal cable; 3.Main power cable. 4.Backup (Power Supply+Receiving Card+GOB Module+IC+Lamp). | ||||
| Features | 1.Suitable for retail, hospitality, and exhibition spaces. 2.Easy Installation and Plug-and-Play. 3.The base uses 4pcs high-end wheels, which are more mobile and stable and safer to use. | ||||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
