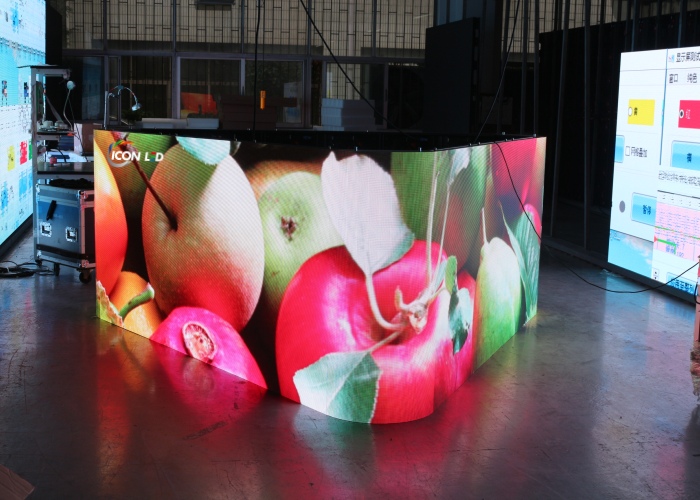

LUX Corner Series Outdoor LED Display
Pixel Pitch: P3.125/ P4.16/ P5/ P6.25/ P8.33/ P10
LED Type: SMD (Gluing and Painting)

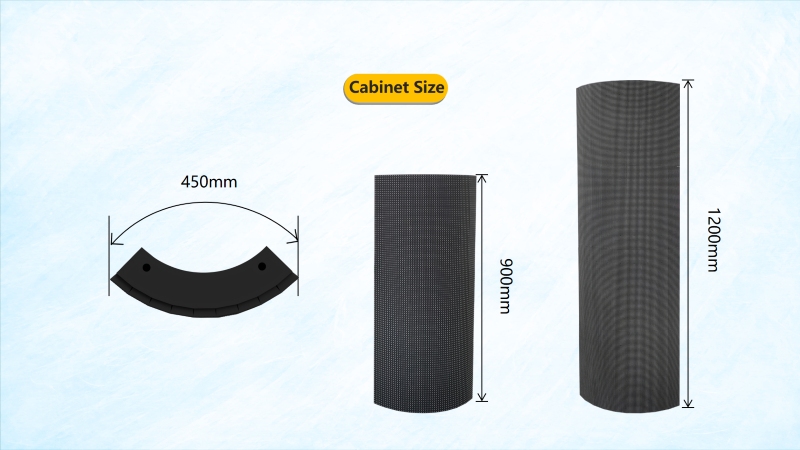

Cabinet Size: 450X900mm / 450X1200mm
● Front & Rear Dual Maintenance
● 4500-10000nits high brightness
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow
● IP65 Waterproof

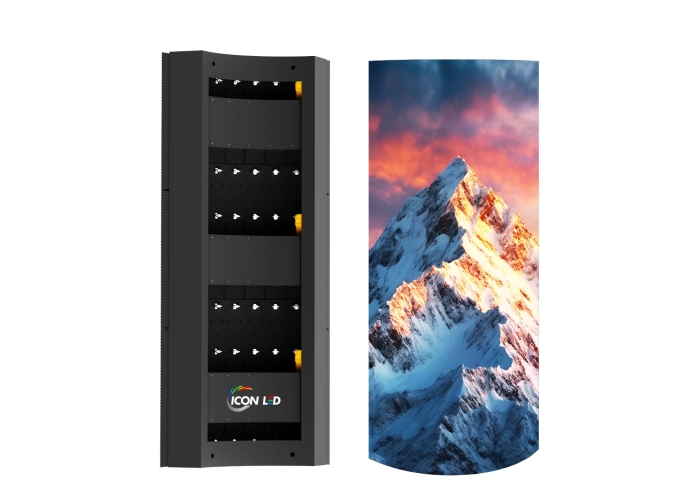

Cabinet Structure
With long service life, low power consumption and flexible customizable shapes & sizes, they achieve lower long-term operation and maintenance costs compared with traditional outdoor signage.
Application Scenario
ICON LED Outdoor LED displays are widely deployed in urban billboards, shopping mall facades, sports stadiums, transport hubs and outdoor events for commercial advertising, public information release and live visual presentation. Featuring ultra-high brightness, they deliver clear, vivid visuals under direct sunlight and boast full waterproof & dustproof performance to work stably in all outdoor weather conditions.

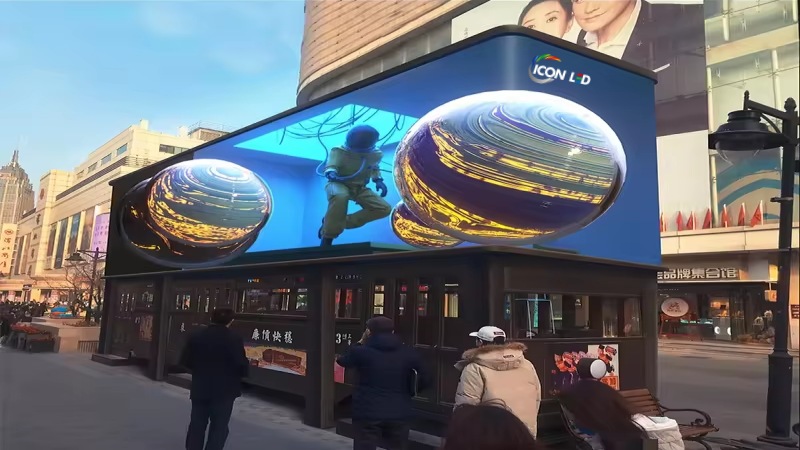

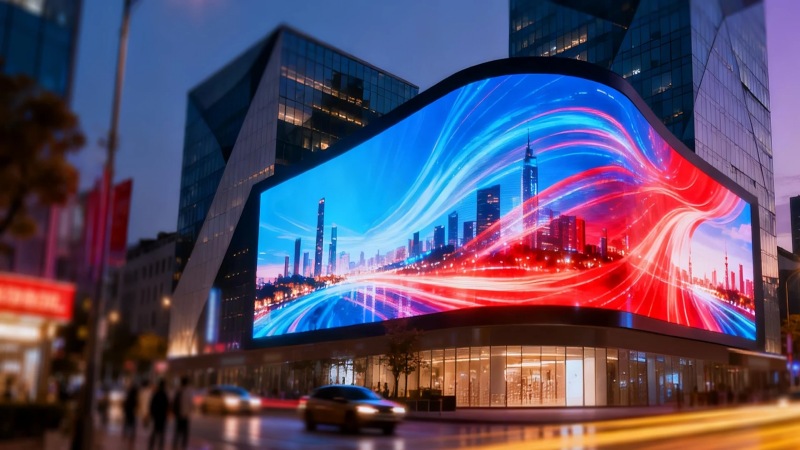

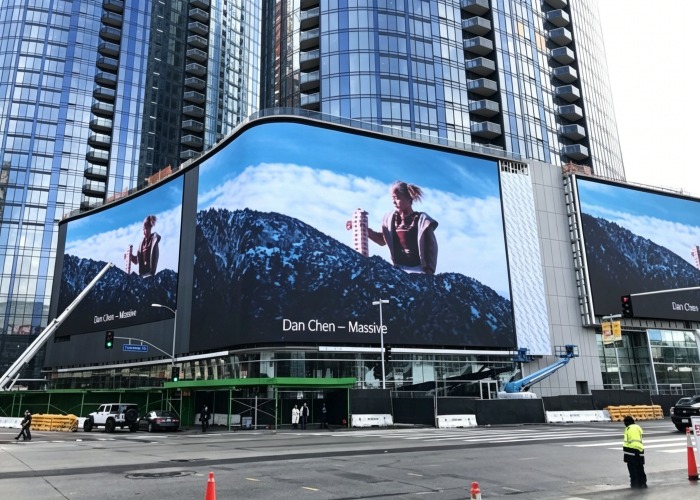

Shopping Mall Building Facade / Naked-Eye 3D Commercial Screens

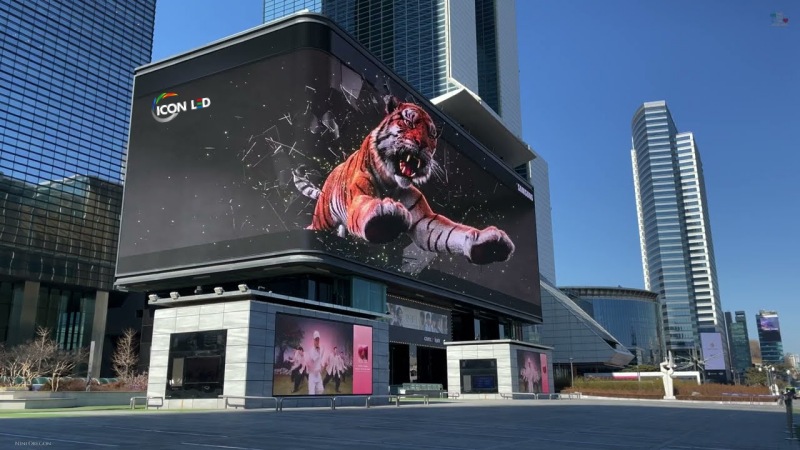

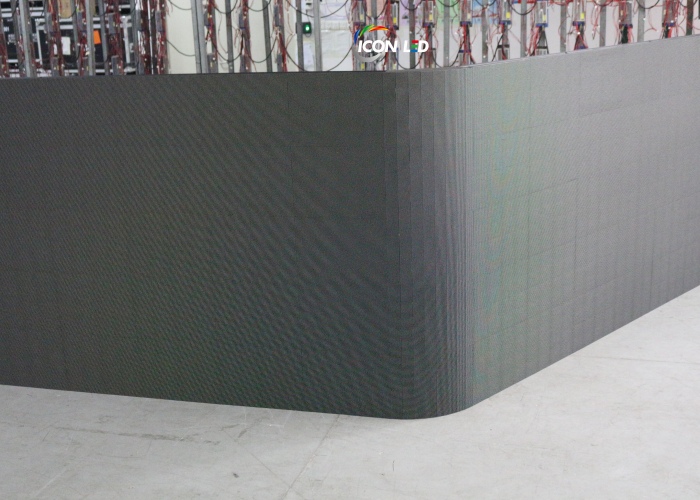

• Custom curved / irregular shapes to fit building architecture, create landmark city media facades.
• 160° ultra-wide viewing angle, vivid color restoration to attract crowds from all street directions.
• Auto brightness sensor: dim automatically at night to avoid light pollution while saving power.
• Strong foot traffic conversion: dynamic motion visuals greatly lift store sales and mall passenger flow.

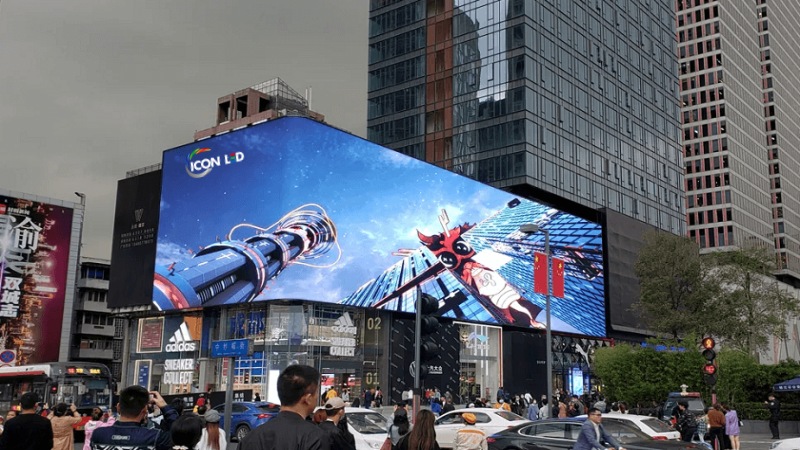

Public Square & Smart City Municipal Information LED Screens
• All-climate adaptive design: work stably from -30℃ to 70℃, with heating & heat dissipation dual system.
• Large seamless splicing area, can deliver city-wide unified public information broadcasting.
• Multi-media support: text, video, picture and rolling subtitle for diversified public service content.
• Long service life (over 100,000 hours), low maintenance frequency for long-term municipal fixed installation.
• Anti-thunder and dustproof protection, safe for long-term unattended outdoor operation.
Key Features

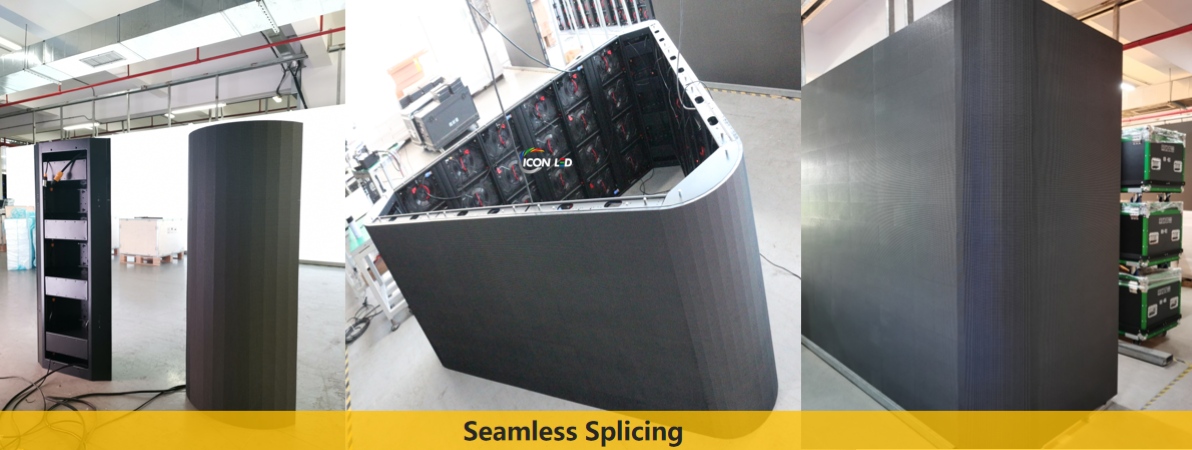

Delicate structure | Seamless splicing | Perfect flatness

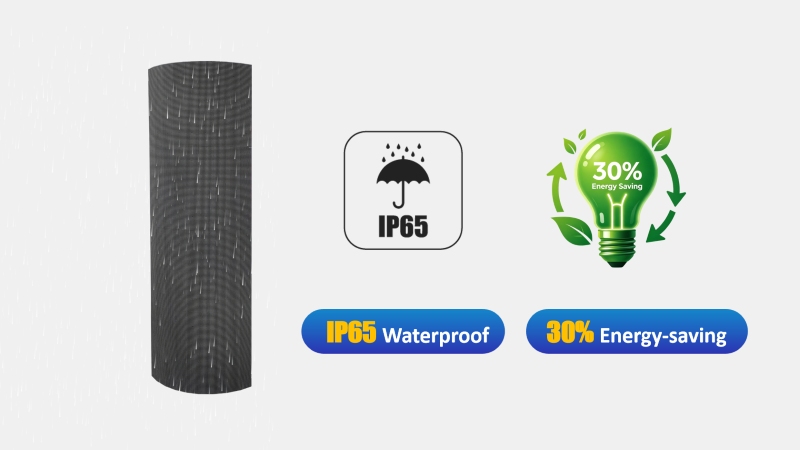

IP65 & 30% Lower Energy Consumption
ICON LED outdoor LED display adopts advanced common cathode circuit design. It supplies precise independent voltage to RGB chips, cutting power waste and heat generation. Compared with traditional common-anode screens, it saves over 30% electricity while maintaining bright, stable outdoor visuals, greatly lowering your long-term operation bills.

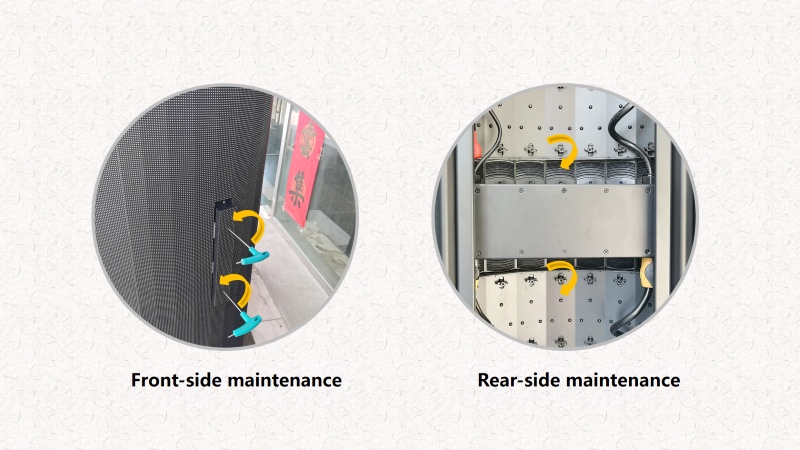

HUB Connection & Full-front and rear maintenace
Hard connection supports full front access and hot-swapping, meets various outdoor application.
3840Hz/ 7680Hz ultra-high refresh rate and 16-bit high grayscale
ICON LED outdoor LED screen delivers flicker-free viewing with no scanning lines during video recording. It reproduces delicate color gradients and rich dark details, presenting smooth, realistic images even under intense outdoor daylight for outstanding visual presentation.
LUX Corner Series Outdoor LED Display
| Pixel Type | P3.125 | P4.16 | P5 | P6.25 | P8.33 | P10 |
| Pixel Pitch (mm) | 3.125 | 4.16 | 5 | 6.25 | 8.33 | 10 |
| LED Packing | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical Density (Dot / m²) | 102400 | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module Resolution | 16X96 | 12X72 | 10X60 | 8X48 | 6X36 | 5X30 |

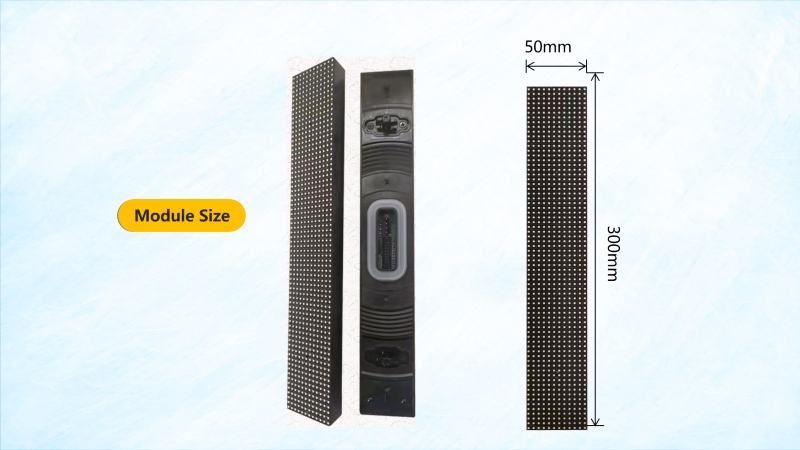

| Module Size (mm) | 50X300 | 50X300 | 50X300 | 50X300 | 50X300 | 50X300 |
| Cabinet Size (L*H*T/mm) | 450X900X98 / 450X1200X98 | 450X900X98 / 450X1200X98 | 450X900X98 / 450X1200X98 | 450X900X98 / 450X1200X98 | 450X900X98 / 450X1200X98 | 450X900X98 / 450X1200X98 |
| Cabinet Resolution | 144X288/144X384 | 108X216/108X288 | 90X180/90X240 | 72X144/72X192 | 54X108/54X144 | 45X90/45X120 |
| Module QTY (W*H) | 9X3/9X4 | 9X3/9X4 | 9X3/9X4 | 9X3/9X4 | 9X3/9X4 | 9X3/9X4 |
| Single Cabinet weight (kg) | 20/25 | 20/25 | 20/25 | 20/25 | 20/25 | 20/25 |
| Maintenance Mode | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear | Front / Rear |
| Cabinet Type | Iron | Iron | Iron | Iron | Iron | Iron |
| Brightness (Nits) | 4500-5500(Optional) | 4500-8000(Optional) | 5500-10000(Optional) | 6000-10000(Optlonal) | 6000-10000(Optonal) | 6000-10000(Optional) |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 140°, V 160° | H 140°, V 160° | H 140°, V 160° | H 140°, V 160° | H 140°, V 160° | H 140°, V 160° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/16s | 1/6s | 1/6s | 1/6s | 1/3s | 1/2s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 650 | 780 | 780 | 780 | 780 | 780 |
| Avg. Power Consumption (W / m²) | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 |
| Ingress Protection (IP) | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Input Power | AC90-264V, 47-63Hz | |||||
| Wroking Temp/Humidity (℃/RH) | -30~70℃ / 10%~85% | |||||
| Storage Temp/Humidity (℃/RH) | -30~70℃ / 10%~85% | |||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||
