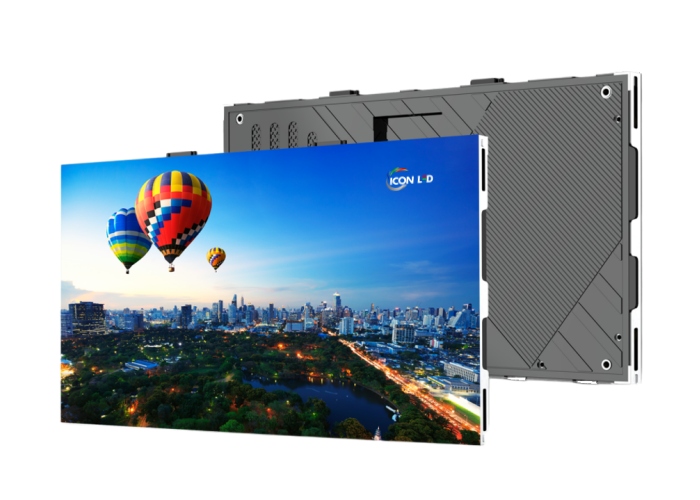

Islim COB Series Indoor LED Display
Pixel Pitch: P0.625/ P0.78/ P0.9375/ P1.25/ P1.56/ P1.875
LED Type: COB
Cabinet Size: 600mm × 337.5mm × 27.5mm
● 16:9 ratio, easy to build 2K/4K/8K
● Ultra thin, Ultra light, UHD, more natural color.
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow.

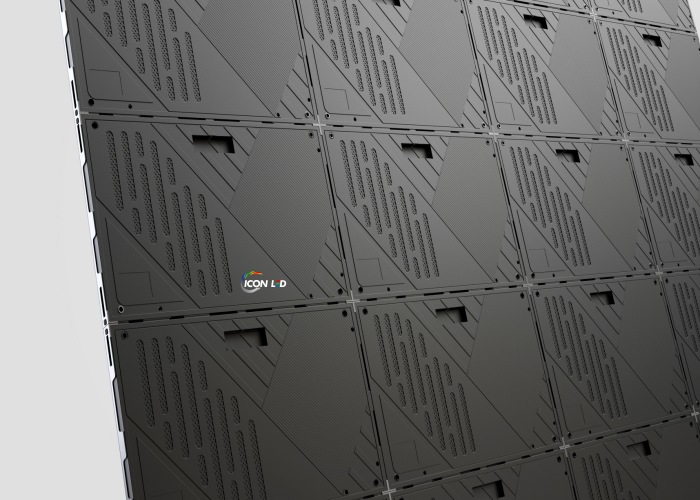

● High-precision die-casting aluminum cabinet, excellent cooling design.

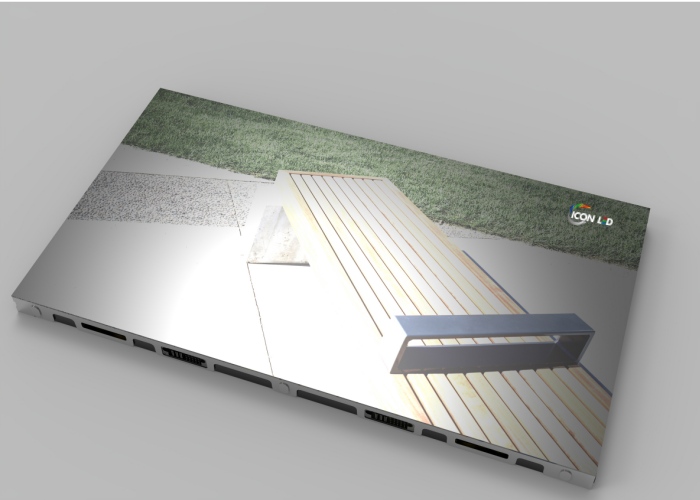

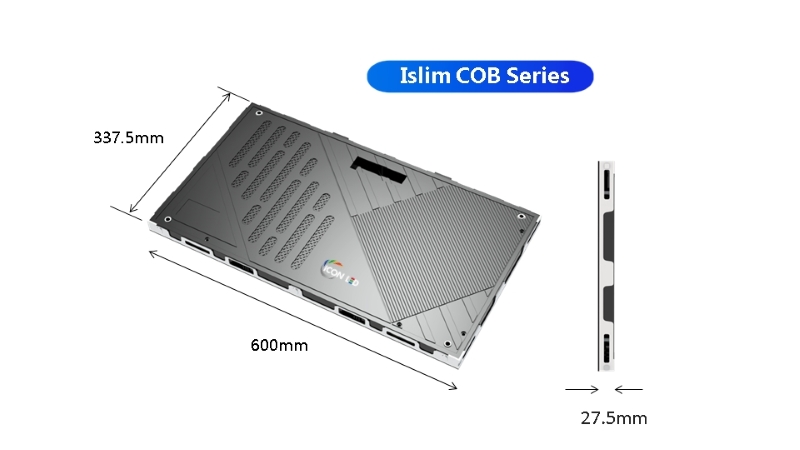

Cabinet Structure

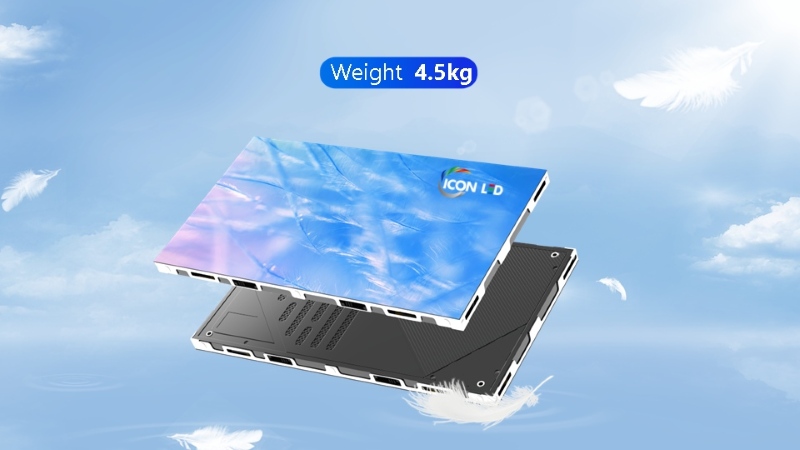

Ultra-thin and Ultra-light. Portable and good stability with a weight of 4.5kg and thickness of 27.5mm.
The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.
Application Scenario

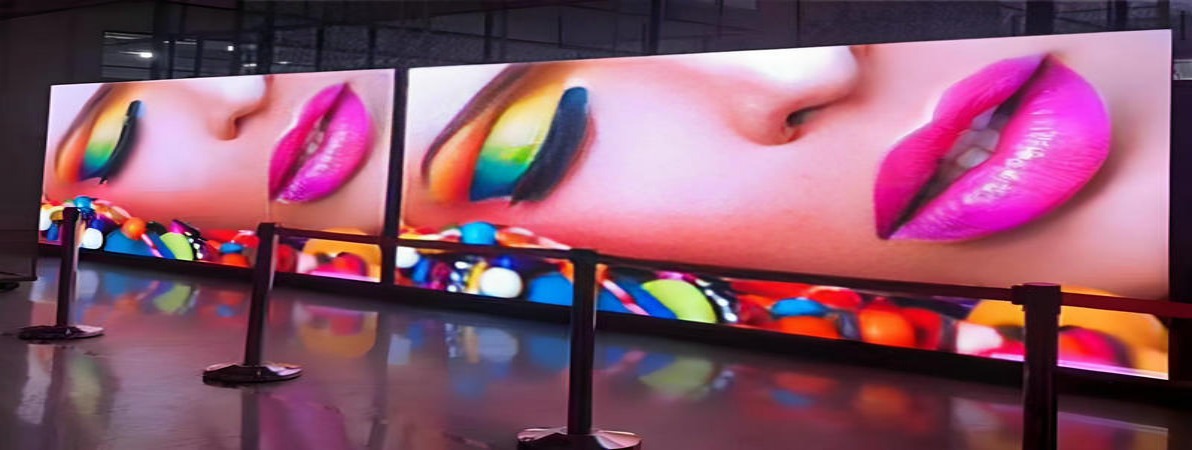

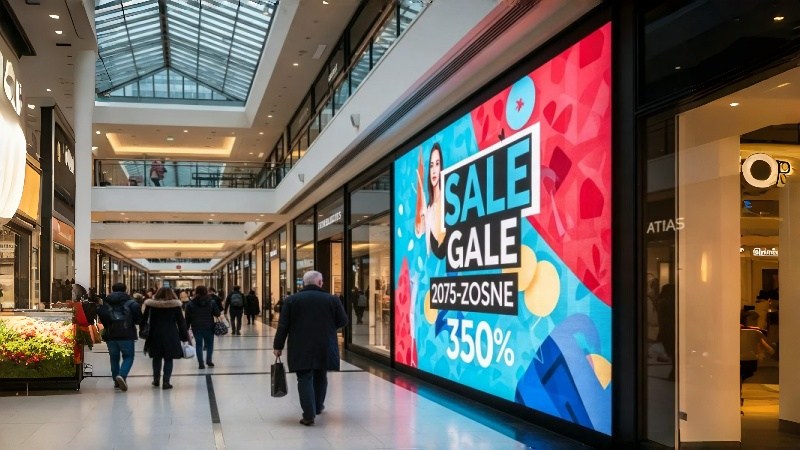

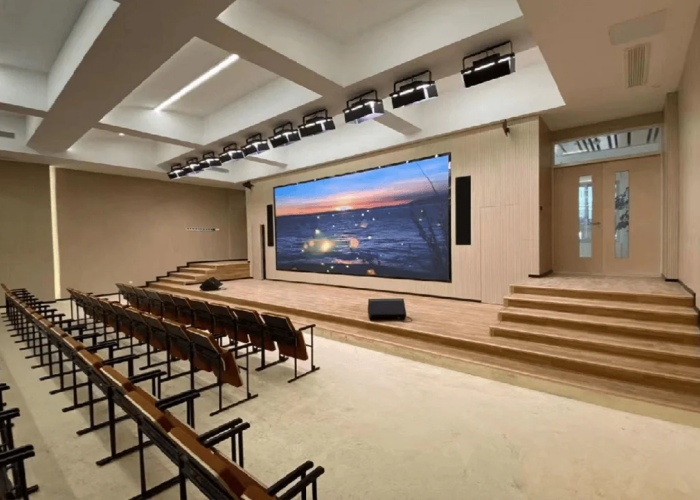

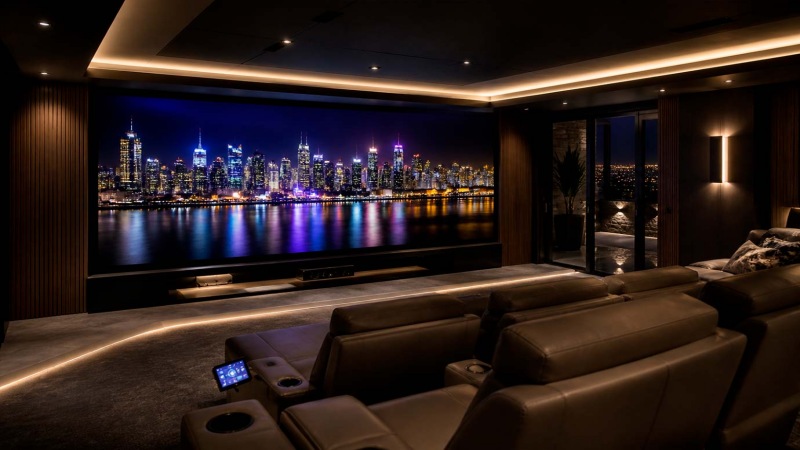

ICON indoor LED displays serve as premium solutions for commercial exhibition, data visualization, meeting rooms, consumer-grade applications and more. It is widely deployed across numerous scenarios including high-end home theaters, indoor advertising, shopping malls & retail outlets, conference rooms, command centers, hotel events, stage, etc.

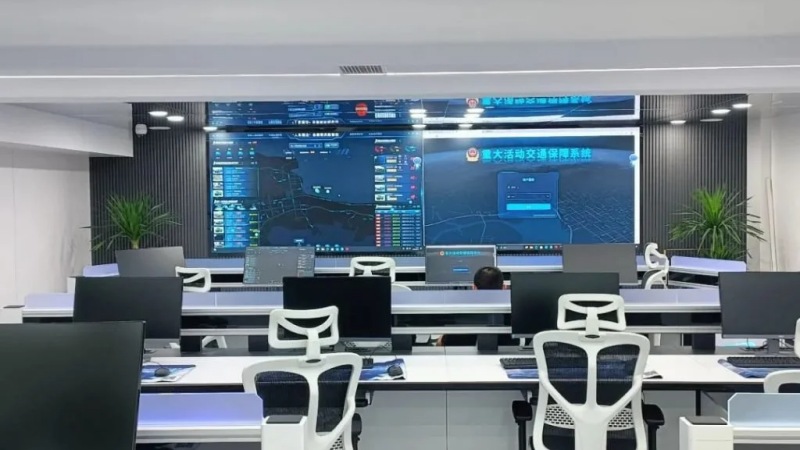

Monitoring room - Ultra high definition
The LED display installed in the control room can provide high-definition image quality, which is crucial for monitoring and surveillance tasks.
The Islim COB Series Indoor LED Display feature ultra-small pitch and high resolution, ensuring that every detail of the monitoring image is clearly visible, enabling operators to quickly obtain key information.

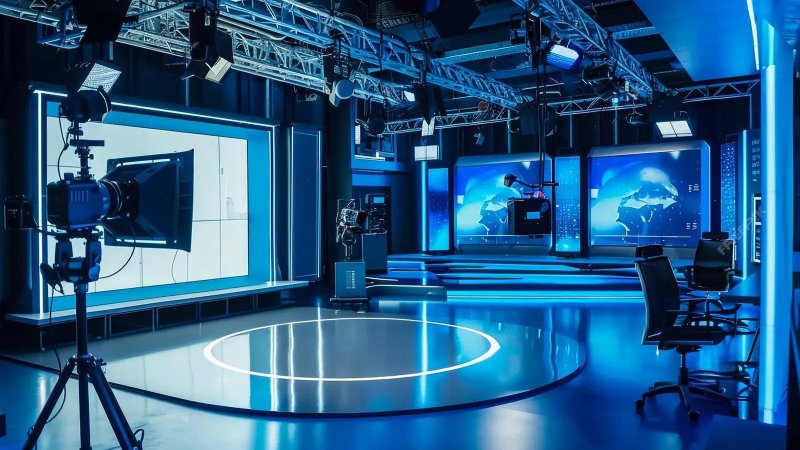

TV Studio - Ultra high refresh rate
ICON LED display for TV studio offers dynamic backgrounds and high-resolution imagery, captivating audiences with its immersive displays.
Islim COB Series Indoor LED Display features an 3840-7680Hz high refresh rate, with smooth and seamless dynamic images without drag shadow. It transforms the studio into a captivating visual spectacle.
Key Features
Seamless Ultra-HD Display
COB supports ultra-fine pitches (P0.625–P1.875mm) for seamless ultra-HD display.
Its integrated structure boasts 5x higher impact resistance than SMD, with superior dust/moisture resistance.
It features optimized heat dissipation, uniform color and high contrast for premium visual experience in large splicing screens.
7X24 hours running without interruption

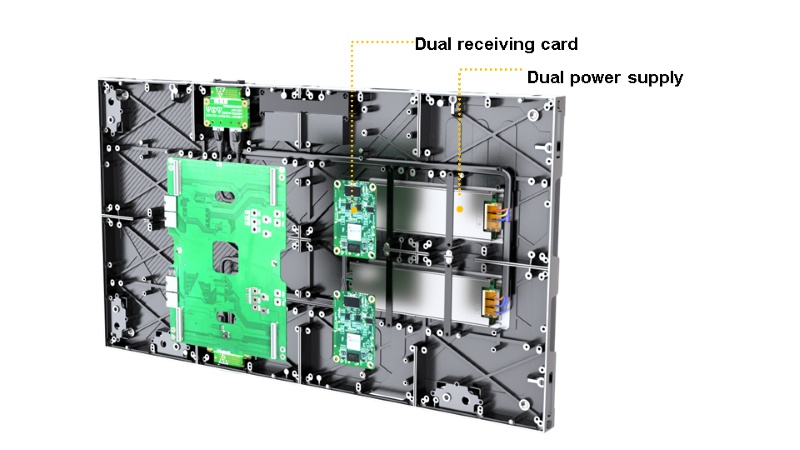

Configurable dual backup version (Dual card dual electric) to ensure uninterrupted power supply.Signal not lost, more stable and reliable.
The excellent heat dissipation performance and energy-saving design ensures the stability of long-term continuous operation.

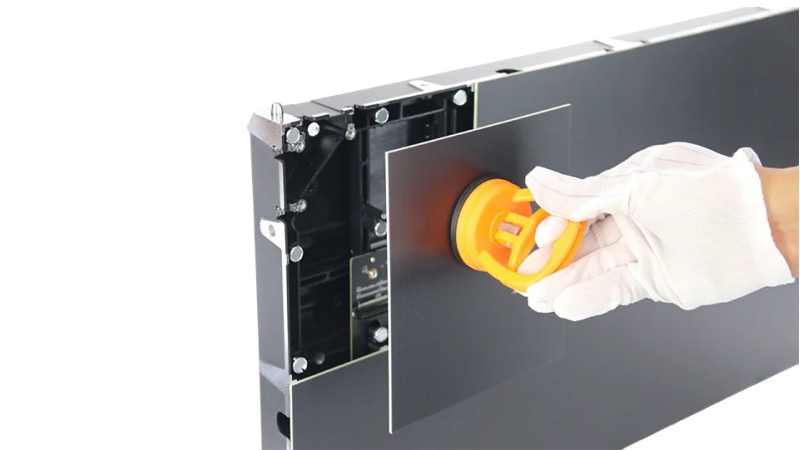

Front maintenance
Strong magnets that create a powerful absorption effect and high precision for various mounting.
The module can be easily accessed and assembled with suction cup.
Islim COB Series Indoor LED Display
| Pixel Type | P0.625 | P0.78 | P0.9375 | P1.25 | P1.5625 | P1.875 |
| Pixel Pitch (mm) | 0.625 | 0.78 | 0.9375 | 1.25 | 1.5625 | 1.875 |
| Dimension Ratio | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 | 16:9 |
| LED Packing | COB | COB | COB | COB | COB | COB |
| Physical Density (Dot / m²) | 2560000 | 1638400 | 1137778 | 640000 | 409600 | 284444 |
| Module Resolution | 240X270 | 192X216 | 160X180 | 120X135 | 96X108 | 80X90 |
| Module Size (mm) | 150X168.75 | 150X168.75 | 150X168.75 | 150X168.75 | 150X168.75 | 150X168.75 |
| Cabinet Size (L*H*T/mm) | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 | 600X337.5X27.5 |
| Cabinet Resolution | 960X540 | 768X432 | 640X360 | 480X270 | 384X216 | 320X180 |
| Module QTY (W*H) | 4X2 | 4X2 | 4X2 | 4X2 | 4X2 | 4X2 |
| Single Cabinet weight (kg) | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 | 4.5 |
| Maintenance Mode | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance | Magnet Front Maintenance |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Brightness Calibration | Have | Have | Have | Have | Have | Have |
| Brightness (Nits) | >=600nits | >=600nits | >=600nits | >=600nits | >=600nits | >=600nits |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° | H 170°, V 170° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/64s | 1/64s | 1/60s | 1/60s | 1/48s | 1/45s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 420 | 420 | 420 | 420 | 420 | 420 |
| Avg. Power Consumption (W / m²) | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 | 80-150 |
| Ingress Protection (IP) | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | |||||
| Wroking Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | |||||
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | |||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | |||||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
