UL Series Indoor LED Display
Pixel Pitch: P1.25/ P1.538/ P1.86/ P2/ P2.5/ P3.076/ P4
LED Type: SMD/GOB

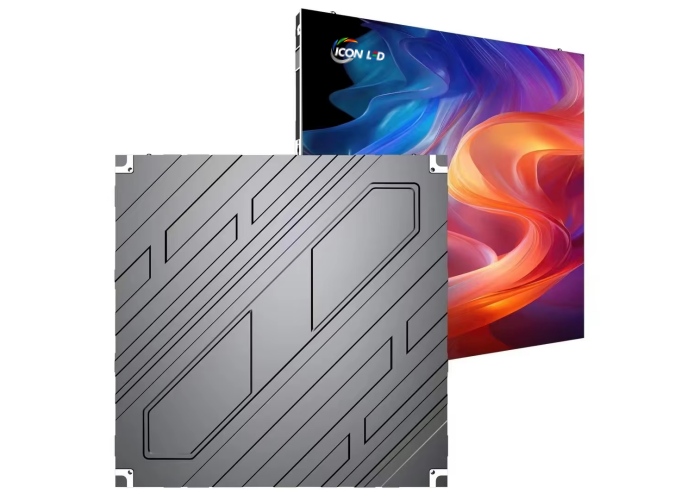

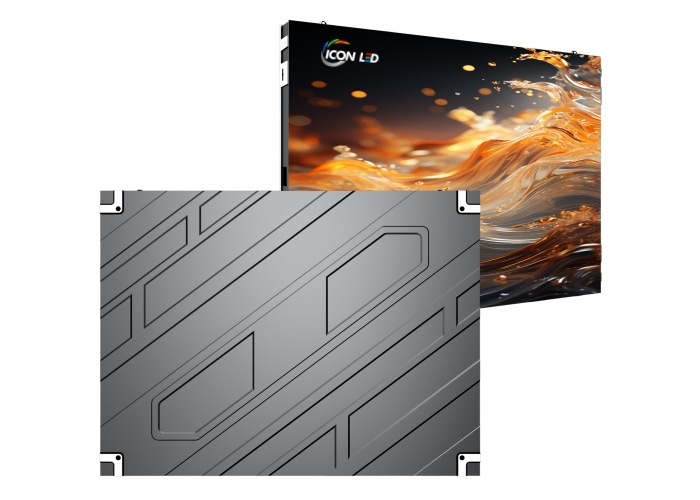

Cabinet Size: 640X480mm / 640X640mm, etc.
● Multiple spacing optional, high cost-effective.
● Support module magnetic suction, quick installation.
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow.
● High-precision die-casting aluminum cabinet, excellent cooling design.

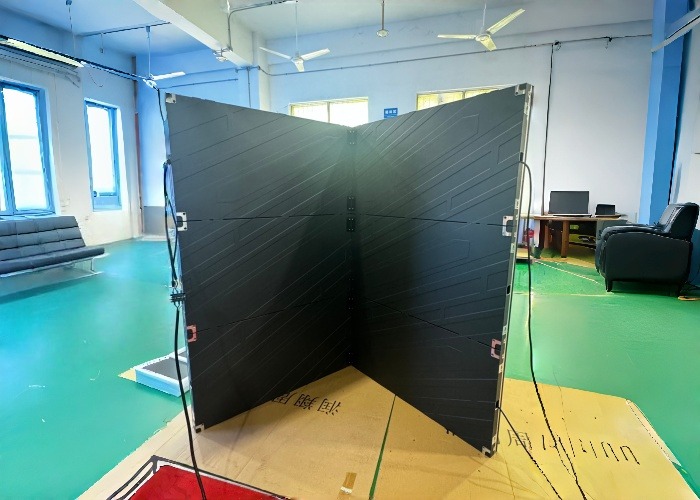

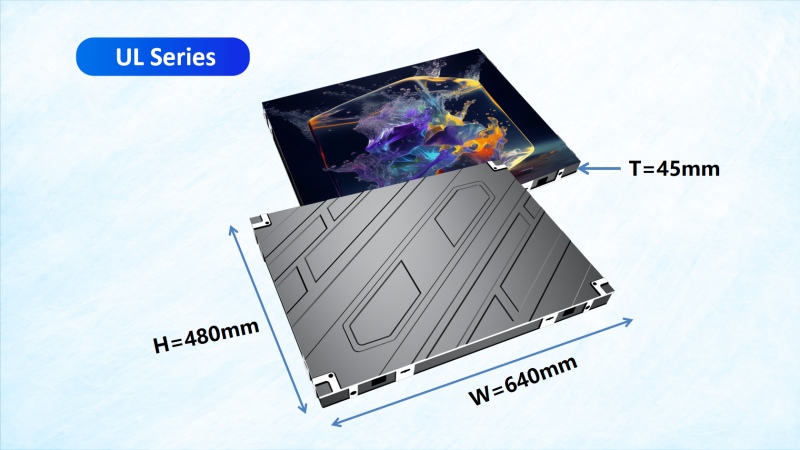

Cabinet Structure

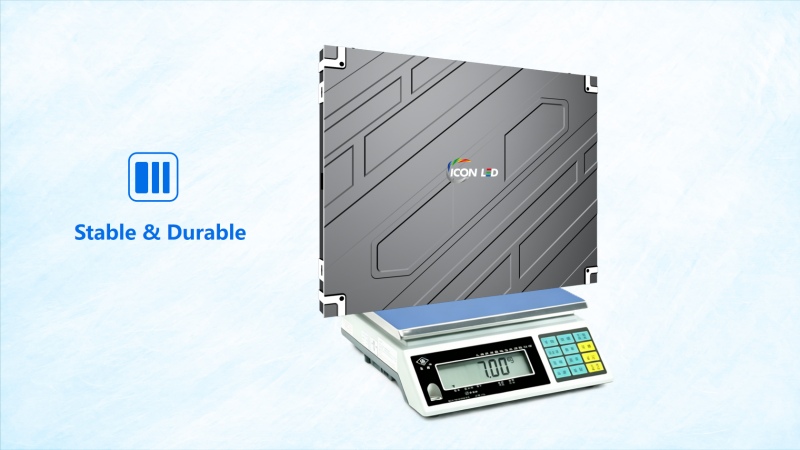

Portable and good stability with a weight of 7kg and thickness of 45mm.
The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.

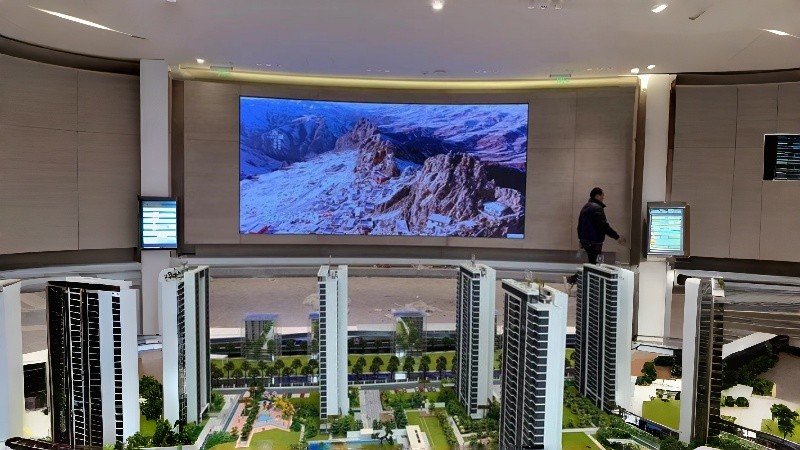

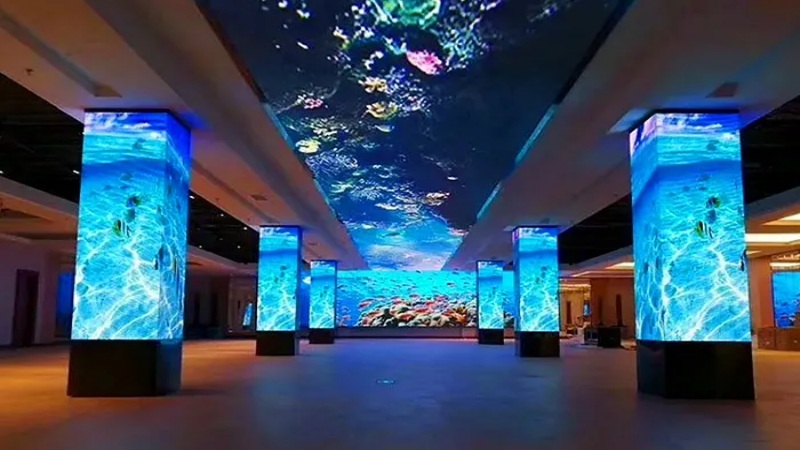

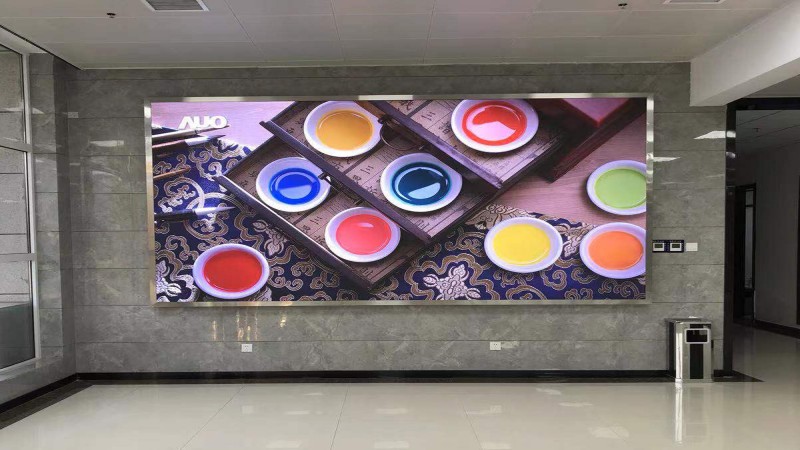

Application Scenario
ICON indoor LED displays serve as premium solutions for commercial exhibition, data visualization, meeting rooms, consumer-grade applications and more. It is widely deployed across numerous scenarios including high-end home theaters, indoor advertising, shopping malls & retail outlets, conference rooms, command centers, hotel events, stage, etc.

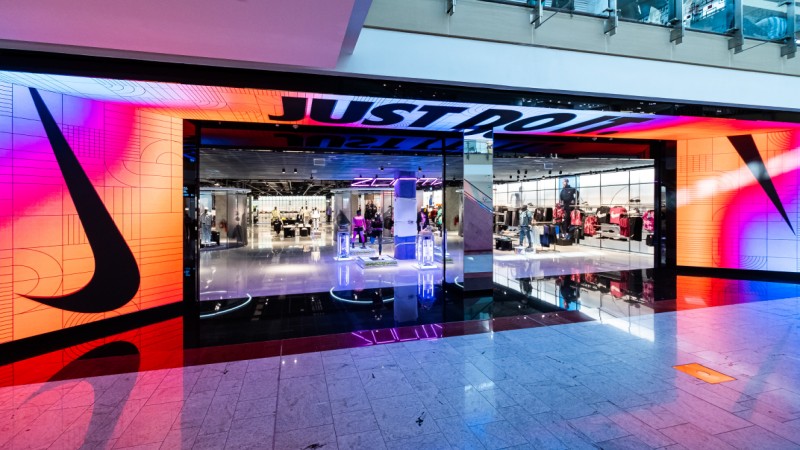

Retail Store - Showing your newly launched
The Icon LED display features a wide color gamut and HDR, effectively showcasing product details.
Within the atmosphere created by the screen images, it conveys the brand impress and product features to every customer, thereby enhancing the brand’s influence and popularity.
Hotel - Improve the quality of space
The hotel lobby is the core venue for hosting high-end weddings, business conferences, corporate annual meetings and international exchange activities.
The UL Series saves space and operates quietly. It also support to save energy & run continuously for a long time, which can adapt to various scenarios such as weddings, conferences and performances, and balance image quality, system stability and installation aesthetics.
Key Features

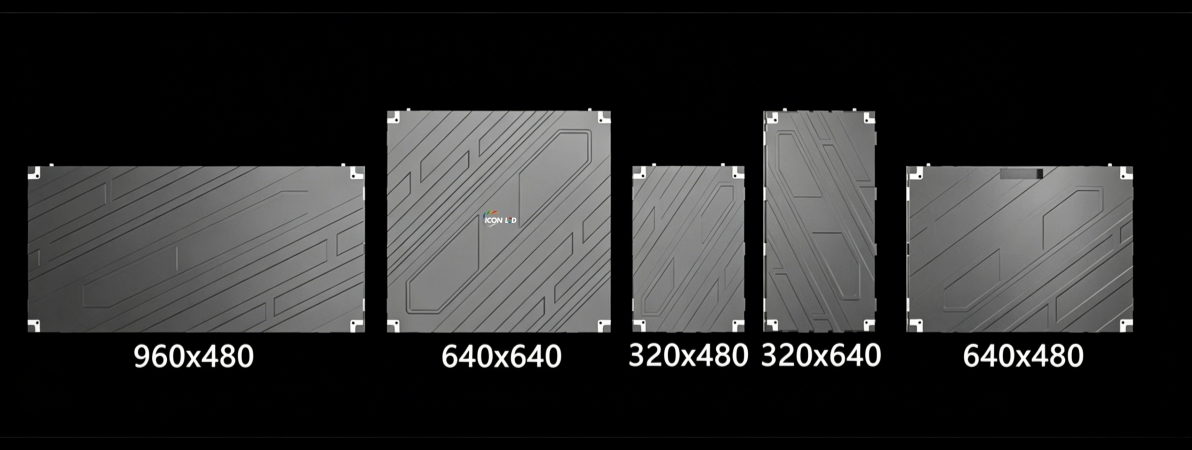

Multiple cabinet sizes can be freely combined
The precise die-cast aluminum chassis ensures excellent flatness of the screen surface, resulting in a high-fidelity display image. The design of multiple cabinet sizes enables the screen to perfectly adapt to the on-site installation environment.
Waterproof, dustproof, and impact resistant

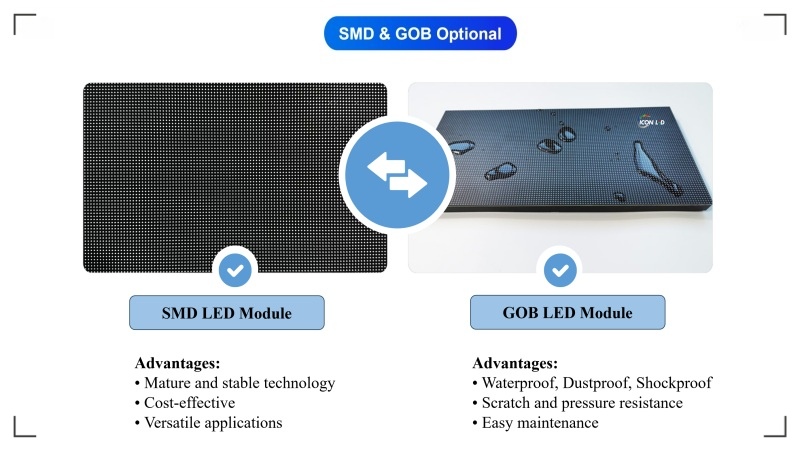

GOB is an protection process that coats the SMD module surface with transparent epoxy resin, which cures into a hard, seamless layer.
It seals LEDs against water, dust and impact, while light output for a uniform, flat viewing surface.

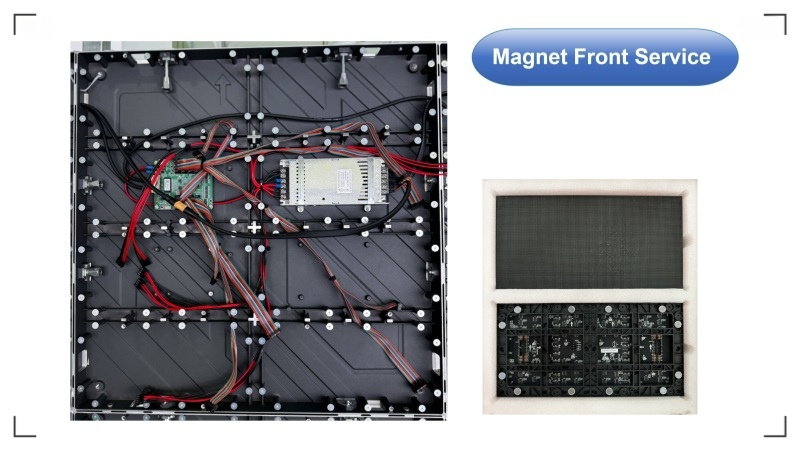

Front maintenance
Strong magnets that create a powerful absorption effect and high precision for various mounting.
The module can be easily accessed and assembled with suction cup.
UL Series Indoor LED Display
| Type | P1.25 | P1.538 | P1.86 | P2 | P2.5 | P3.076 | P4 |
| Pitch | 1.25 | 1.538 | 1.86 | 2 | 2.5 | 3.076 | 4 |
| Series | 640*480mm Series | 640*480mm Series | 640*480mm Series | 640*480mm Series | 640*480mm Series | 640*480mm Series | 640*480mm Series |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Access / Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| LED Model & Type | SMD1010 (GOB) | SMD1212 (GOB) | SMD1515 (GOB) | SMD1515 (GOB) | SMD2121 (GOB) | SMD2121 (GOB) | SMD2121 (GOB) |
| Refresh | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
| Brightness | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits | 600-800nits |
| Contrast | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 | 5000:1 |
| Viewing Angle | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° | H 160°,V 160° |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Power Supply & Model | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy | 5V40A, G_energy |
| Max Wattage (Watts) | 160 | 145 | 130 | 120 | 110 | 90 | 85 |
| Avg Wattage (Watts) | 60 | 58 | 50 | 47 | 45 | 35 | 32 |
| Power Supply per Cabinet | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Reciever Card Per Cabinet | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Reciever Card Model (Non HDR) | MRV532 | MRV412-N | MRV412-N | MRV208-N | MRV208-N | MRV208-N | MRV208-N |
| Scan | 64 | 52 | 43 | 40 | 32 | 26 | 20 |
| Density（dot/m²） | 640000 | 422500 | 288906 | 250000 | 160000 | 105625 | 62500 |
| Module Pixels (L*H) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 104*52 | 80*40 |
| Module Size (L*H)mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm | 320*160mm |
| Cabinet Resolution (dot) | 196608 | 129792 | 88752 | 76800 | 49152 | 32448 | 19200 |
| Cabinet Size (L*H)mm | 640*480mm | 640*480mm | 640*480mm | 640*480mm | 640*480mm | 640*480mm | 640*480mm |
| Cabinet Depth (mm) | 45 | 45 | 45 | 45 | 45 | 45 | 45 |
| Single Cabinet weight (kg) | 9KG | 9KG | 9KG | 9KG | 9KG | 9KG | 9KG |
| Max Power (watts / m2) | 520 | 472 | 423 | 390 | 358 | 293 | 277 |
| Avg Power (watts/m2) | 195 | 189 | 163 | 153 | 146 | 114 | 104 |
| Weight (kg/m2) | 29 | 29 | 29 | 29 | 29 | 29 | 29 |
| Certification | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS | 3C CE ROHS |
| Ingress Protection (IP) | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 | IP30 |
| Grayscale | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit | 14bit |
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?

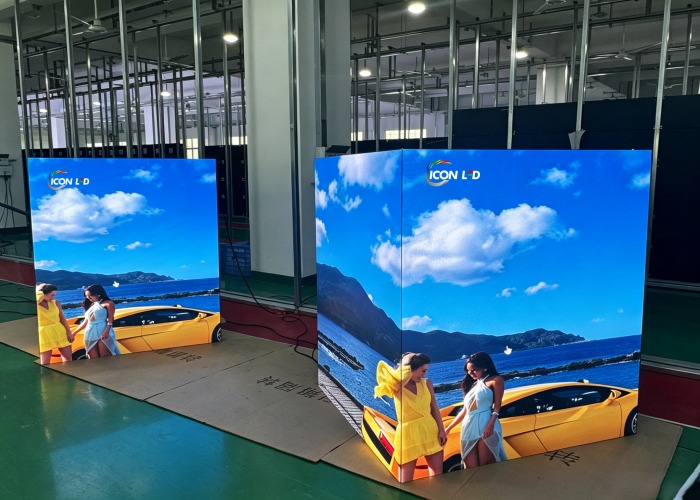

A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
