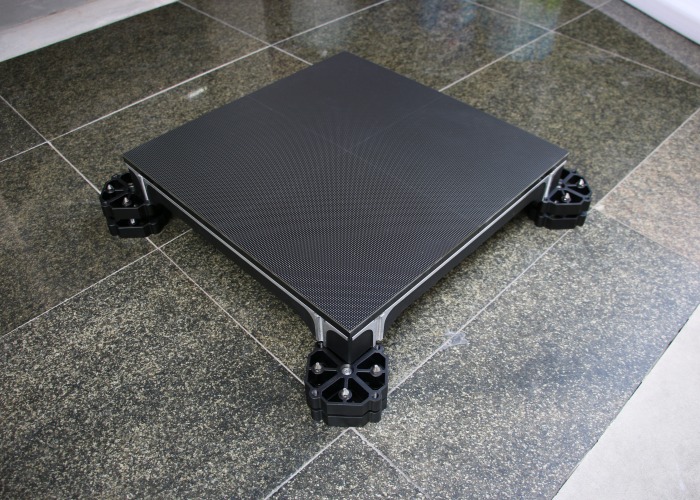

Nano Floor Series Indoor LED Display
Pixel Pitch: P1.25/ P1.56/ P1.95/ P2.604/ P2.976/ P3.91
LED Type: MIP/ SMD/ GOB
Cabinet Size: 500mm × 500m × 92mm
● ≥2 ton/m² high load-bearing.
● High-precision die-casting aluminum cabinet.
● Built-in sensing chip enables human-machine smart interaction.
● Surface flatness error < 0.5mm for safe walking, and seamless visuals.
● Built-in efficient active cooling system for heat dissipation.

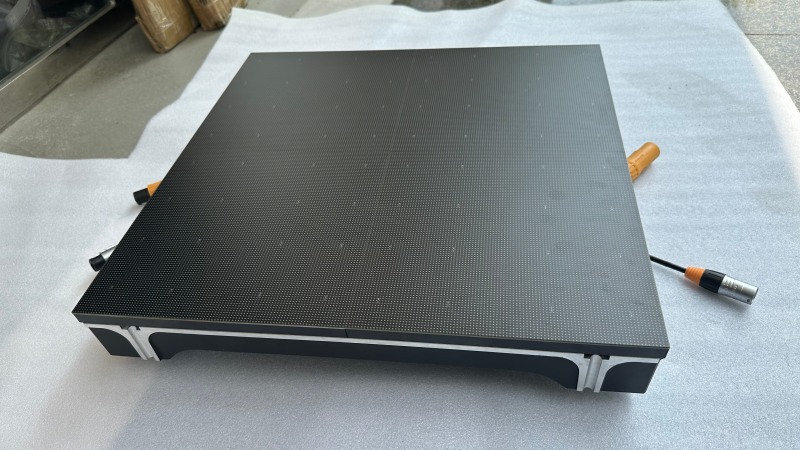

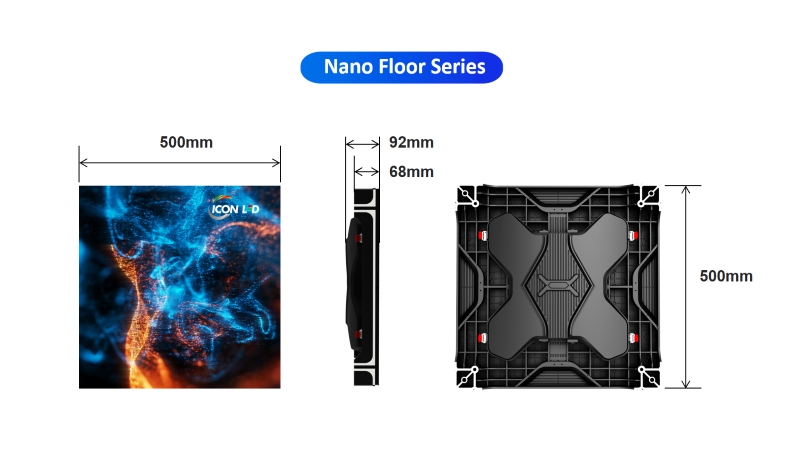

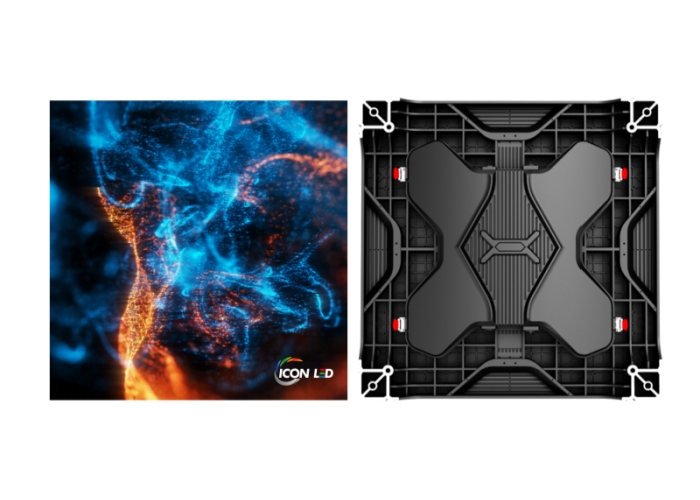

Cabinet Structure

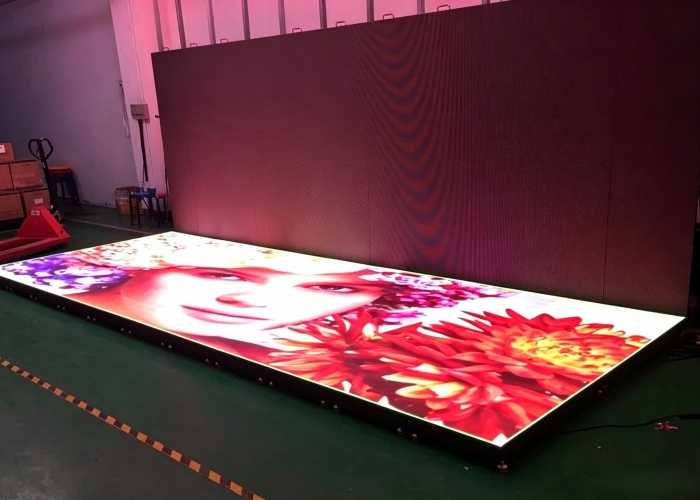

LED Floor – a surface you can walk on, covered with light-emitting diodes able to display any video content.

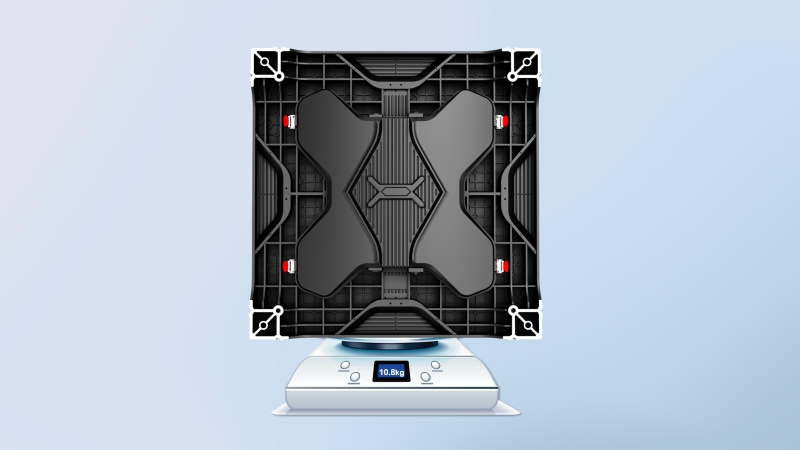

500*500mm modular rapid installation. Lightweight hollow-out frame design, with a single box weighing only 10.8kg,
making it slim, lightweight, and convenient.
Application Scenario
ICON LED offers interactive floor LED displays with a lifespan of up to 100,000 hours.
It is widely deployed across numerous scenarios including shopping malls, events stage, night club, concerts, shows, etc.

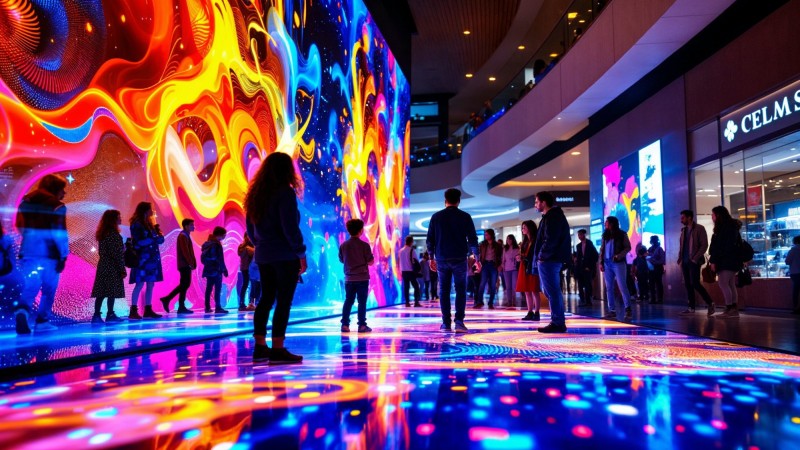

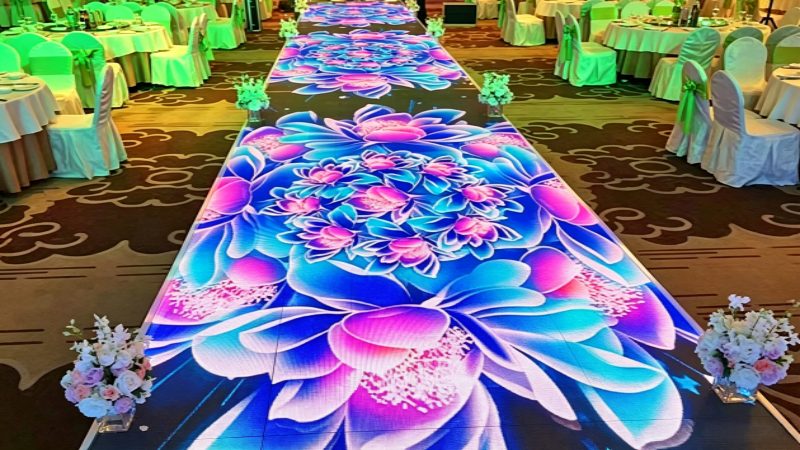

Shopping mall - Marketing and brand promotion opportunities
The LED floor screen offers unique marketing and brand promotion opportunities. Event planners and distributors can use these floors to directly display logos, promotional information, or social media content on the floor, adding a distinctive element to corporate or promotional events.
Additionally, they can showcase the logos and advertisements of sponsors at trade exhibitions or sponsorship events, creating new revenue sources.

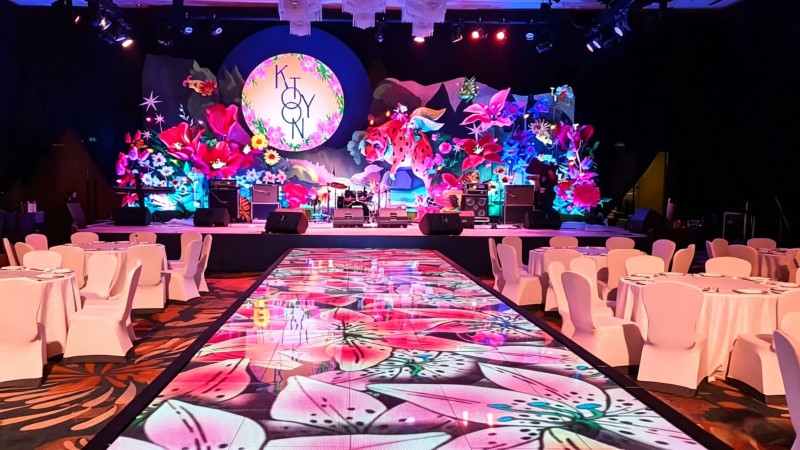

Stage - Enhancing the Attractiveness of the Venue
The LED floor screen is a highlight for nightclubs, bars, and event venues, significantly enhancing the style of the space and attracting more attendees. The stunning visual effects brought by these floors can create a unique atmosphere, making your venue an ideal choice for hosting high-end events.
Key Features

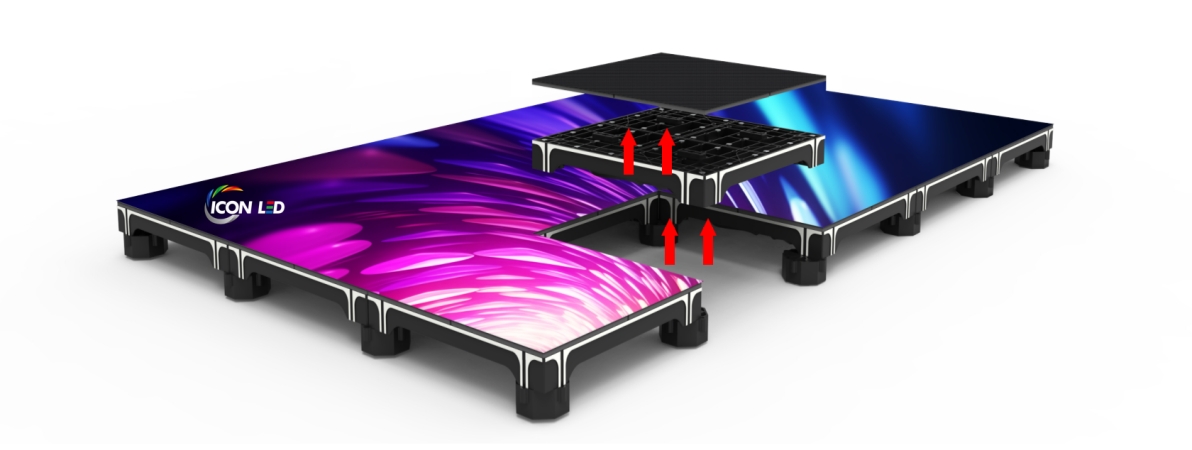

The module adopts a magnetic front maintenance design to achieve maintenance of the module, power supply, and receiving card, saving time and effort.

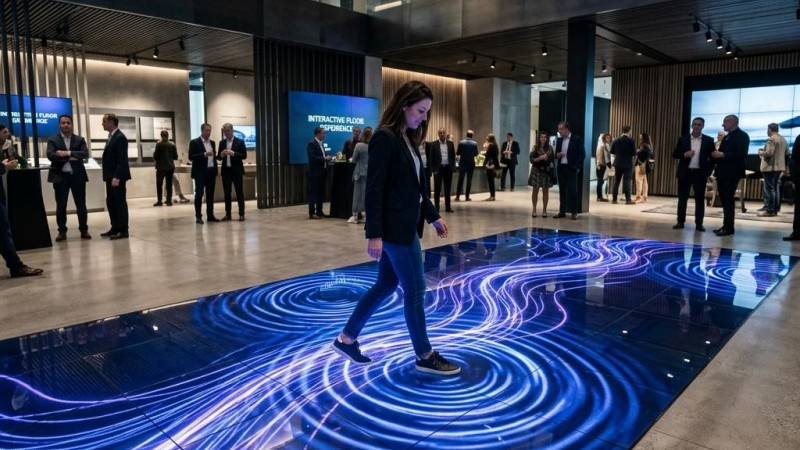

Equipped with built-in control chip and interactive system, 128/256 sensing points can be selected per sqm.
More precise response, more sensitive response, and smooth interactive effect.
GOB Protection
Adopting GOB technology, anti collision, moisture-proof, wear-resistant and easy to clean.

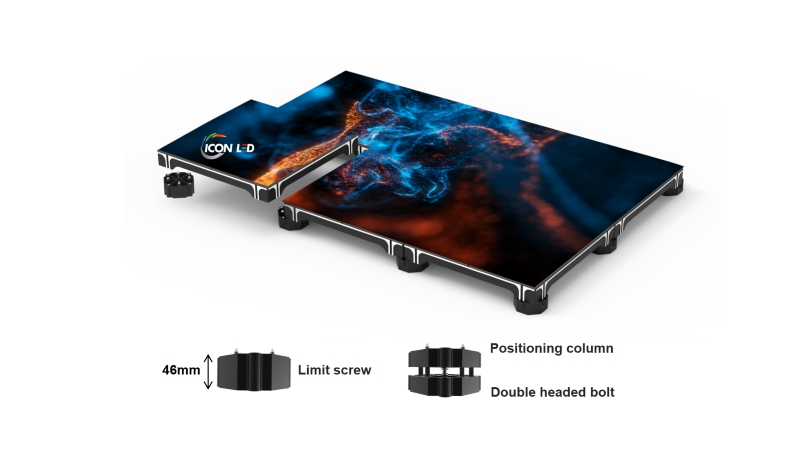

Adjustable Height Flexibility
Set up customized foot pads for laying, accurately correspond to the support angle to achieve horizontal positioning, and quickly assemble.
Customized adjustable feet with a height range of 15-20mm.
High load-bearing capacity
Trust ICON LED’s commitment to safety and durability. Our LED floor screens have an extremely strong load-bearing capacity, reaching up to 2000kg per Sqm. Even in high-traffic environments, they can ensure stability and safety.
Choose ICON LED, prioritize safety, and enable you to confidently host various events.
Nano Floor Series LED Display
| Pixel Type | P1.25 | P1.5625 | P1.95 | P2.604 | P2.976 | P3.91 |
| Pixel Pitch (mm) | 1.25 | 1.5625 | 1.95 | 2.604 | 2.976 | 3.91 |
| LED Packing | MIP1010 | MIP1010 | SMD1212(GOB) | SMD1515(GOB) | SMD1515(GOB) | SMD2020(GOB) |
| Physical Density (Dot / m²) | 640000 | 409600 | 262144 | 147456 | 112896 | 65536 |
| Module Resolution | 200X200 | 160X160 | 128X128 | 96X96 | 84X84 | 64X64 |
| Module Size (mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Cabinet Size (L*H*T/mm) | 500×500×92 | 500×500×92 | 500×500×92 | 500×500×92 | 500×500×92 | 500×500×92 |
| Cabinet Resolution | 400X400 | 320X320 | 256X256 | 192X192 | 168X168 | 128X128 |
| Module QTY (W*H) | 2X2 | 2X2 | 2X2 | 2X2 | 2X2 | 2X2 |
| Single Cabinet weight (kg) | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 | 10.8 |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| Brightness (Nits) | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 | ≥800 |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/50s | 1/32s | 1/32s | 1/16s | 1/14s | 1/16s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 800 | 800 | 800 | 800 | 800 | 800 |
| Avg. Power Consumption (W / m²) | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 |
| Ingress Protection (IP) | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | |||||
| Wroking Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | |||||
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | |||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC/BIS | |||||
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
