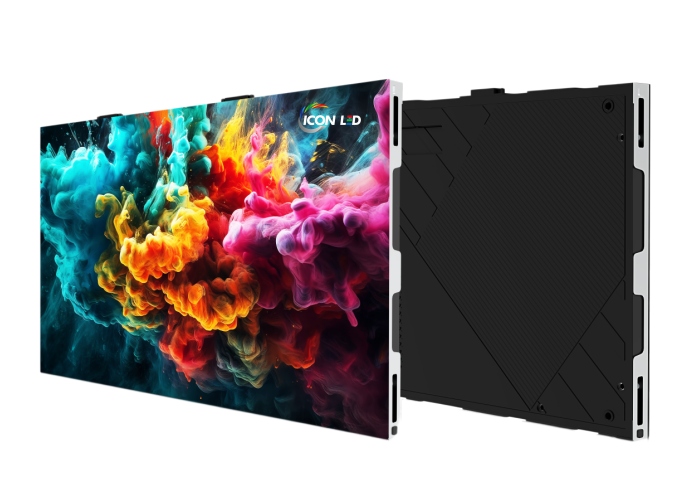

Islim SMD Series Indoor LED Display

Pixel Pitch: P1.25/ P1.56/ P1.875/ P2.5
LED Type: SMD/GOB

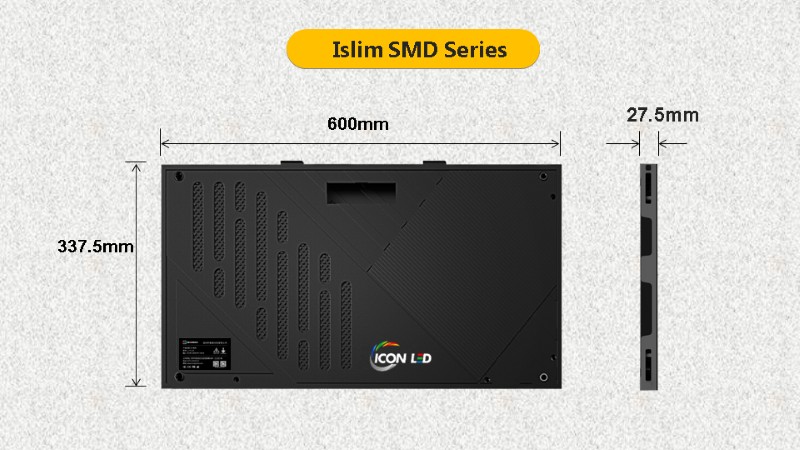

Cabinet Size: 600mm × 337.5mm × 27.5mm

● 16:9 ratio, easy to build 2K/4K/8K
● Ultra thin, Ultra light, UHD, more natural color.
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow.
● High-precision die-casting aluminum cabinet, excellent cooling design

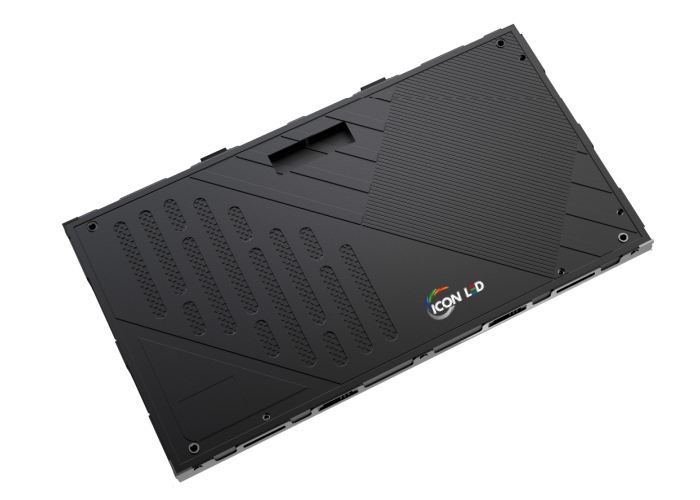

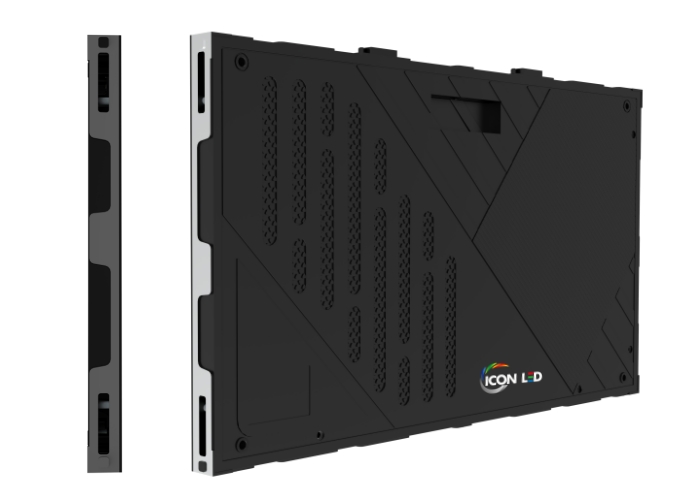

Cabinet Structure

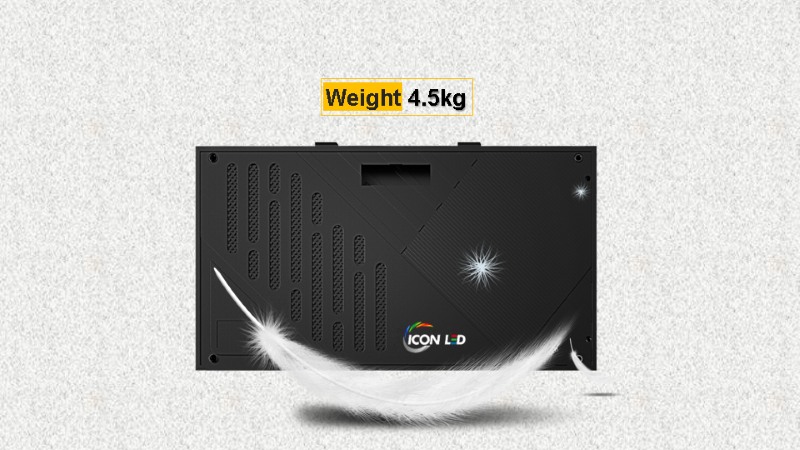

Ultra-thin and Ultra-light. Portable and good stability with a weight of 4.5kg and thickness of 27.5mm.
The feature of lightweight makes the LED display easy to carry,
transport and install, saving a good amount of money on your labor costs.

Application Scenario

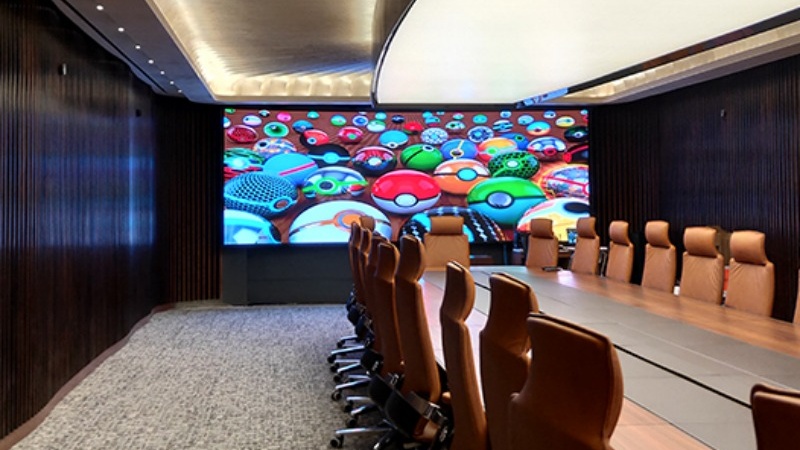

ICON indoor LED displays serve as premium solutions for commercial exhibition, data visualization, meeting rooms, consumer-grade applications and more. It is widely deployed across numerous scenarios including high-end home theaters, indoor advertising, shopping malls & retail outlets, conference rooms, command centers, hotel events, stage, etc.

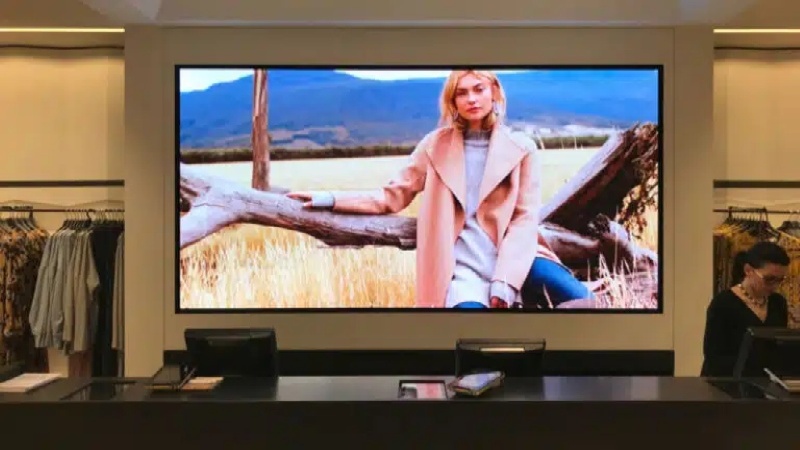

Retail Store - Showing your newly launched

The Icon LED display features a wide color gamut and HDR, effectively showcasing product details.

Within the atmosphere created by the screen images, it conveys the brand impress and product features to every customer, thereby enhancing the brand’s influence and popularity.

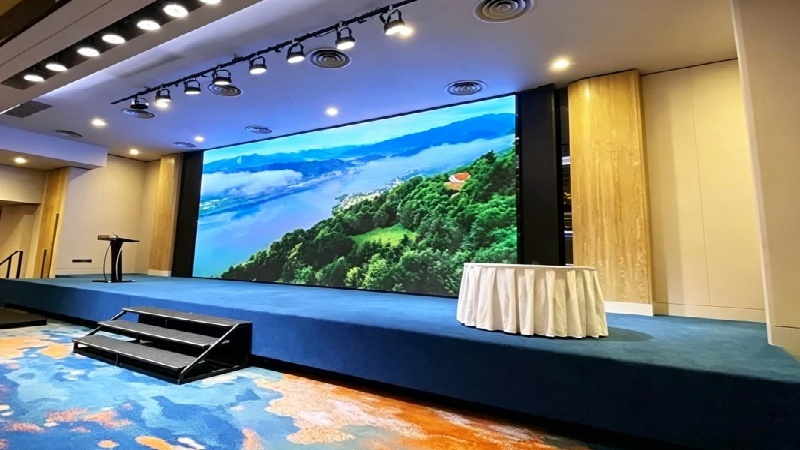

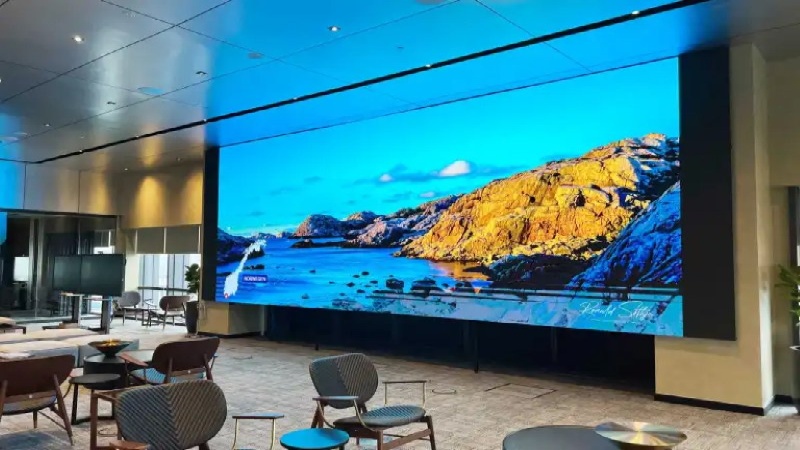

Hotel - Improve the quality of space

The hotel lobby is the core venue for hosting high-end weddings, business conferences, corporate annual meetings and international exchange activities.

The Islam SMD Series saves space and operates quietly. It also support to save energy & run continuously for a long time, which can adapt to various scenarios such as weddings, conferences and performances, and balance image quality, system stability and installation aesthetics.

Key Features

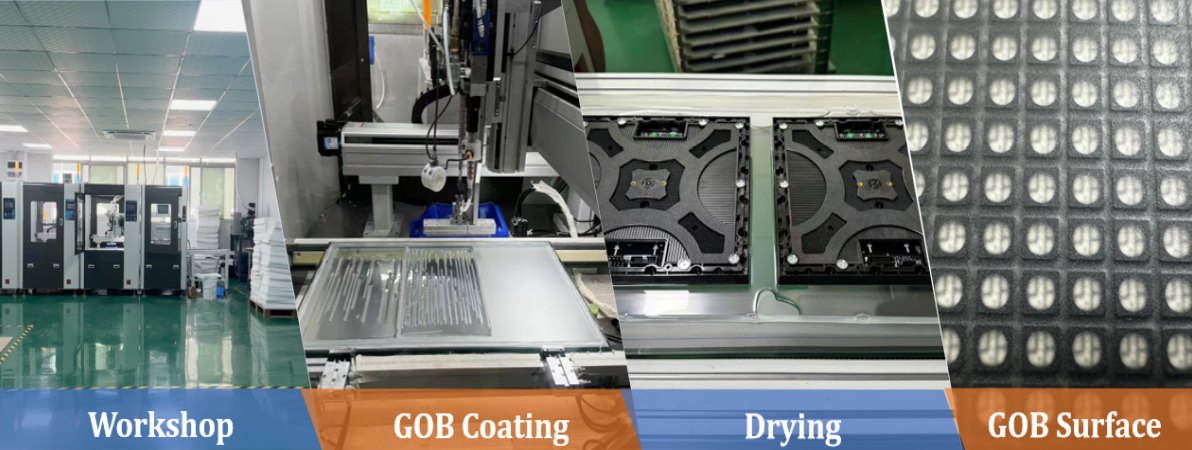

Waterproof, dustproof, and impact resistant

GOB is an protection process that coats the SMD module surface with transparent epoxy resin,
which cures into a hard, seamless layer. It seals LEDs against water, dust and impact,
while light output for a uniform, flat viewing surface.

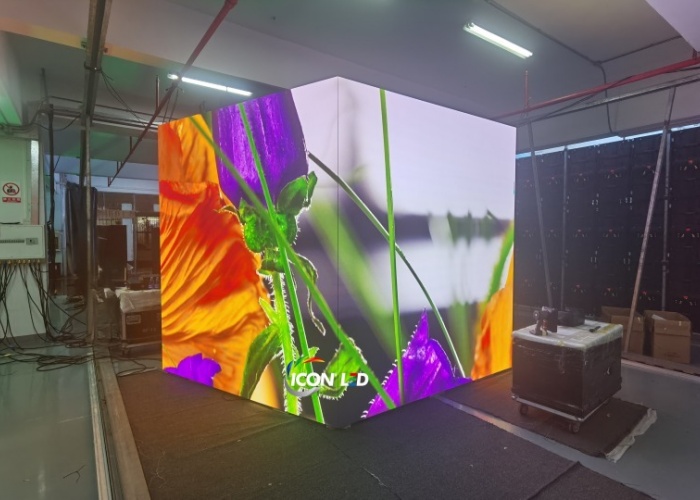

16:9 ratio

Cabinets seamless splicing to make 2K, 4K, 8 and 16 K
ultra high definition LED screen.

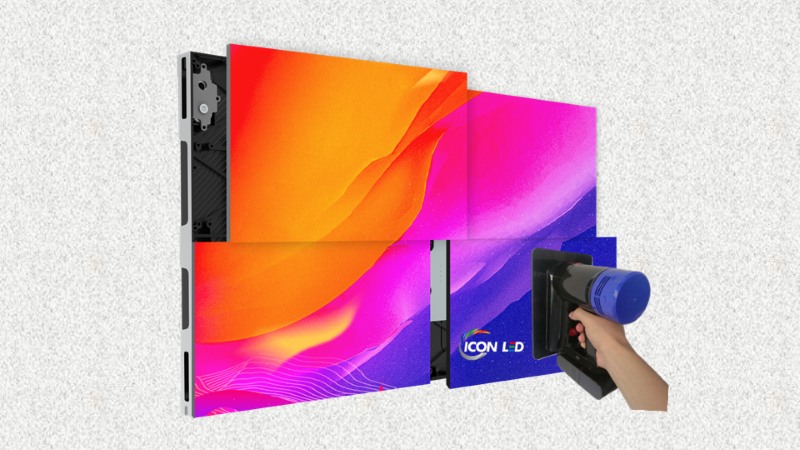

Front maintenance

Strong magnets that create a powerful absorption effect and high precision for various mounting.
The module can be easily accessed and assembled with suction cup.

Islim SMD Series Indoor LED Display

Pixel Type	P1.25	P1.5625	P1.875	P2.5
Pixel Pitch (mm)	1.25	1.5625	1.875	2.5
Dimension Ratio	16:9	16:9	16:9	16:9
LED Packing	SMD1010 / GOB	SMD1010 / 1212 / GOB	SMD1010 / 1515 / GOB	SMD1515 / GOB
Physical Density (Dot / m²)	640000	409600	284444	160000
Module Resolution	240X135	192X108	160X90	60X135
Module Size (mm)	300X168.75	300X168.75	300X168.75	150X337.5
Cabinet Size (LHT/mm)	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5	600X337.5X27.5
Cabinet Resolution	480X270	384X216	320X180	240X135
Module QTY (W*H)	2X2	2X2	2X2	4X1
Single Cabinet weight (kg)	4.5	4.5	4.5	4.5
Maintenance Mode	Magnet Front Maintenance	Magnet Front Maintenance	Magnet Front Maintenance	Magnet Front Maintenance
Cabinet Type	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum	Die-casting Aluminum
Brightness Calibration	Have	Have	Have	Have
Brightness (Nits)	400-600nits	400-600nits	400-600nits	400-600nits
Color Temperature (K)	5000-12000(Optional)	5000-12000(Optional)	5000-12000(Optional)	5000-12000(Optional)
Viewing Angle	H 170°, V 170°	H 170°, V 170°	H 170°, V 170°	H 170°, V 170°
Contrast Ratio	15000:1	15000:1	15000:1	15000:1
Frame rate	50/60	50/60	50/60	50/60
Scan	1/45s	1/48s	1/45s	1/30s
Grayscale	14-16bit (Optional)	14-16bit (Optional)	14-16bit (Optional)	14-16bit (Optional)
Refresh	3840Hz / 7680Hz	3840Hz / 7680Hz	3840Hz / 7680Hz	3840Hz / 7680Hz
Control System	NovaStar	NovaStar	NovaStar	NovaStar
Max. Power Consumption (W / m²)	350	350	350	350
Avg. Power Consumption (W / m²)	100	100	100	100
Ingress Protection (IP)	IP31	IP31	IP31	IP31
Input Power	AC90-264V, 47-63Hz
Wroking Temp/Humidity (℃/RH)	-20~60℃ / 10%~85%
Storage Temp/Humidity (℃/RH)	-20~60℃ / 10%~85%
Certification	CCC/CE/RoHS/FCC/CB/TUV/IEC

FAQ

Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?

A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.

Q: What pixel pitch should I choose on my display?

A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.

Q: How can we ensure the LED display product quality?

A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.

Q: How about the warranty?

A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.

Q: How can I purchase it?

A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
