IMAX Series Indoor LED Display
Pixel Pitch: P1.25/ P1.56/ P1.95/ P2.5/ P2.604/ P2.976/ P3.91
LED Type: SMD/GOB
Cabinet Size: 1000×500mm, 1000×250mm, 750×250mm, 500×250mm
● Magnet front service, HUB module is easy to install.
● Ultra thin, Ultra light, UHD, more natural color.
● 3840Hz/ 7680Hz ultra high refresh rate, no drag shadow.
● High-precision die-casting aluminum cabinet, excellent cooling design.

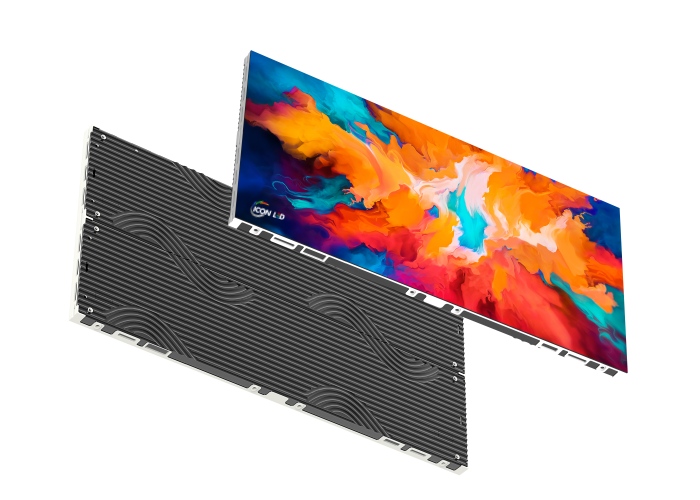

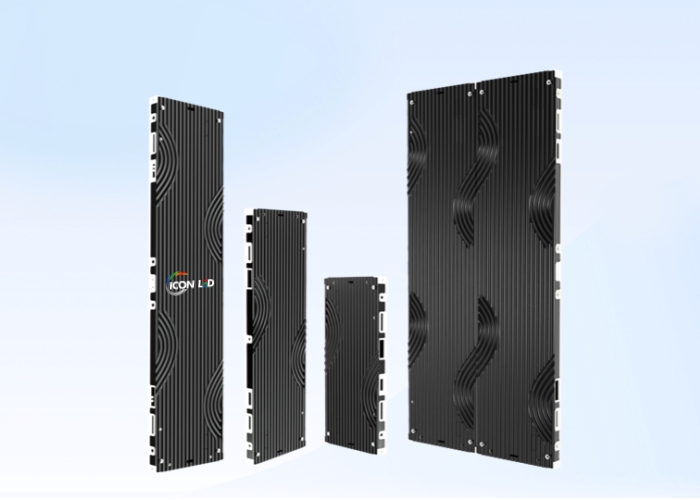

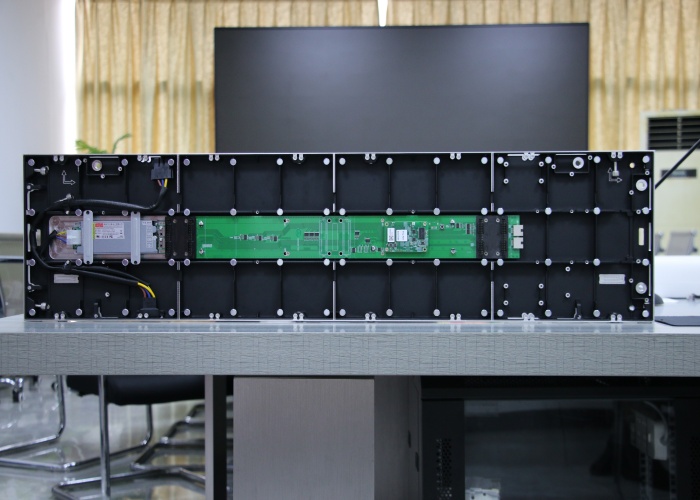

Cabinet Structure
Die cast aluminum integrated cabinet, high precision, with a total thickness of only 33mm,

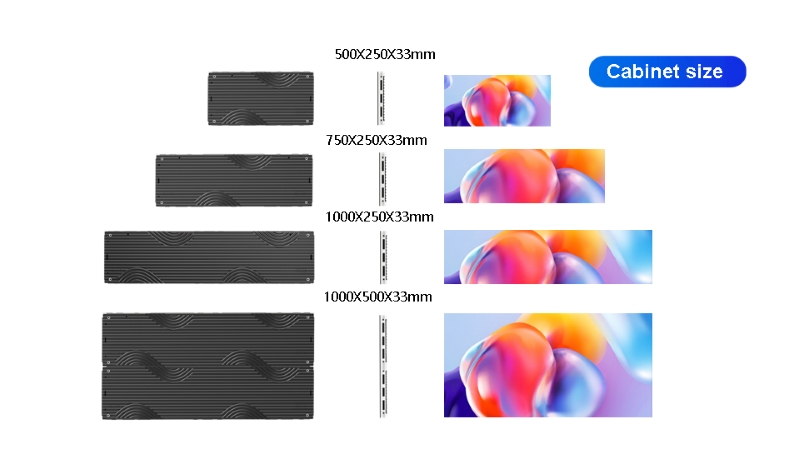

Four types of cabinets: 1000X500mm/ 1000X250mm/ 750X250mm/ 500X250mm,

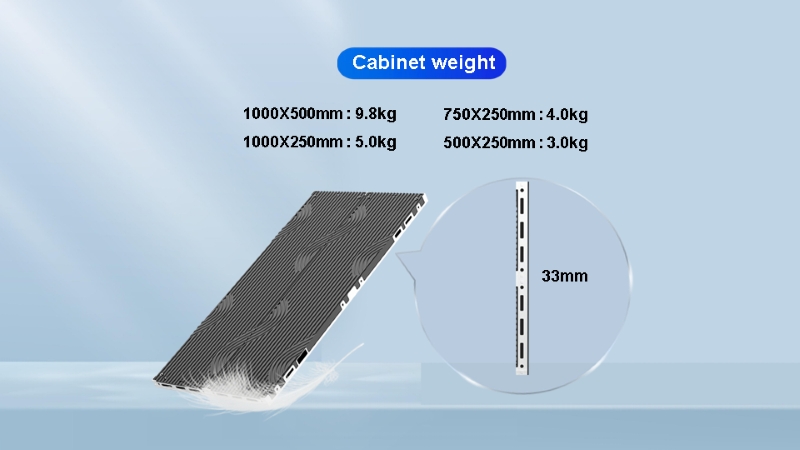

with their weights as follows: 9.8kg/ 5.0kg/ 4.0kg/ 3.0kg.

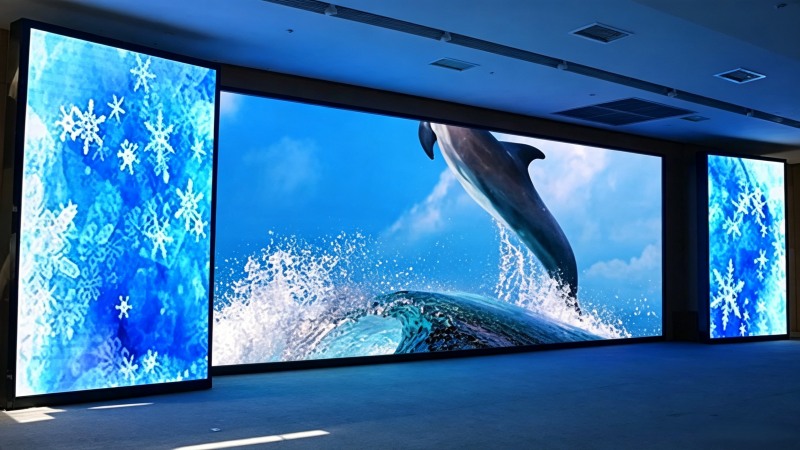

Application Scenario
ICON indoor LED displays serve as premium solutions for commercial exhibition, data visualization, meeting rooms, consumer-grade applications and more. It is widely deployed across numerous scenarios including high-end home theaters, indoor advertising, shopping malls & retail outlets, conference rooms, command centers, hotel events, stage, etc.

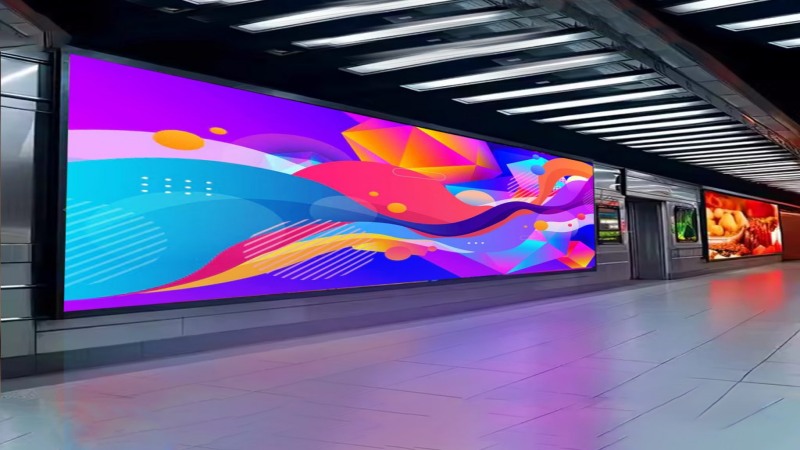

Mall - Transform high-foot-traffic areas into powerful advertising spaces

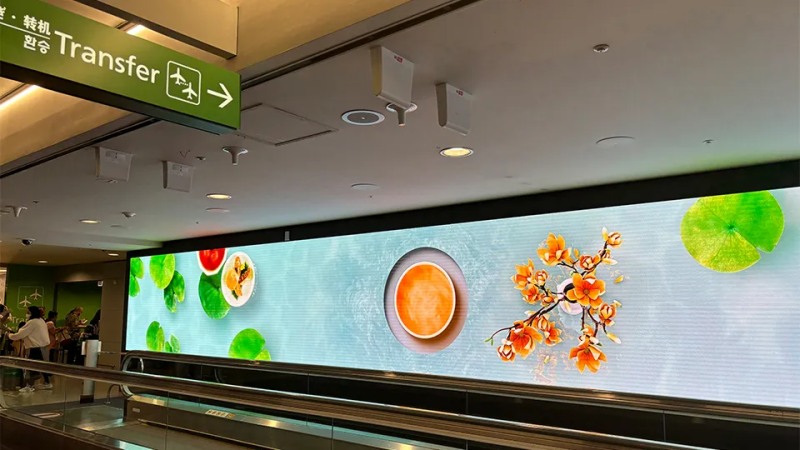

LED screens in malls and airports deliver impactful advertising by instantly grabbing the attention of high-foot-traffic audiences.
Their bright, dynamic visuals outperform static signs, boosting brand recall and engagement effectively.
ICON LED display supports asynchronous control, allowing for real-time remote content updates, enabling timely promotions.

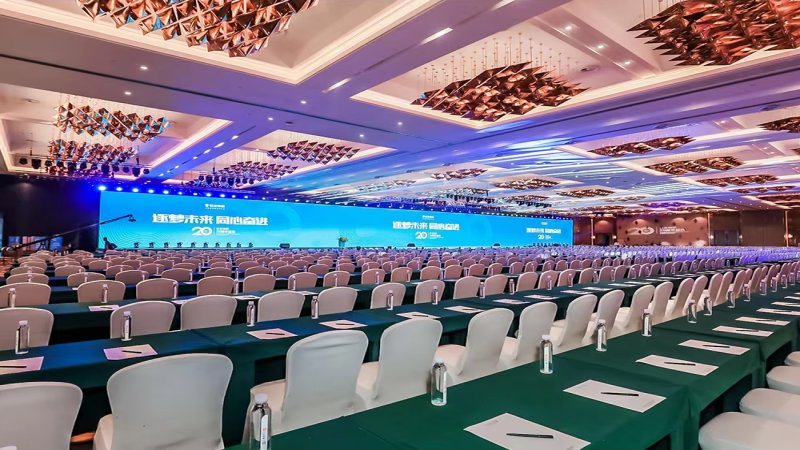

Meeting Room - Improves accessibility for large or interactive meeting sessions with wide spaces.
IMAX Series Indoor LED Display installed in the conference room provide exceptional image quality, with high brightness and vibrant colors that remain clear even in well-lit environments. It ensures that presentations and videos are visually engaging and easily discernible by all attendees.
Key Features

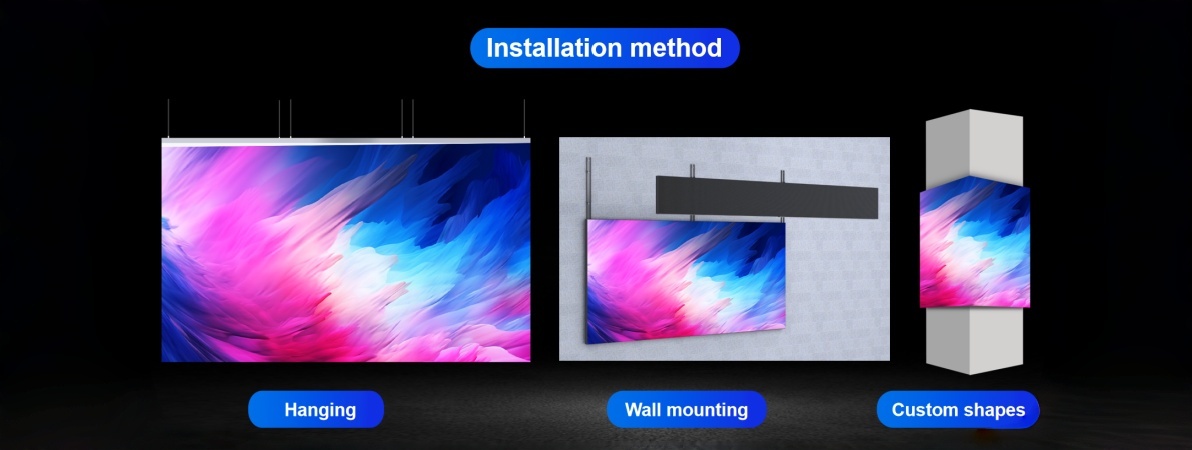

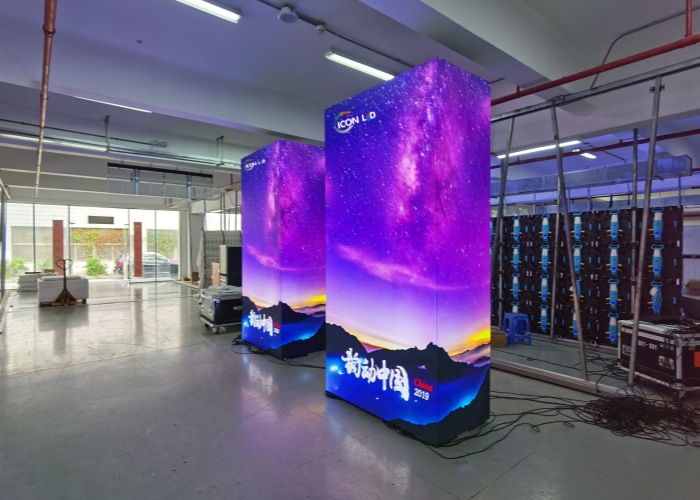

Support multiple installation methods：lifting, wall mounted installation, and column shaped installation, suitable for more scenarios.

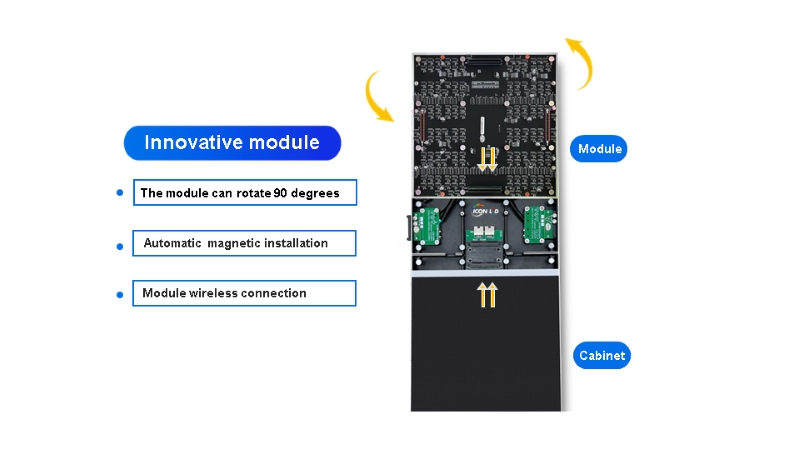

Innovative module
The module is hard connected to the box, and the module adopts magnetic suction automatic adsorption, which is reliable and does not fall off.
The innovative design of the module ensures that the viewing angle of the light beads is not affected when rotating the module direction
Impact, there will be no color difference. Not only does it improve the visual comfort, but it also enhances the visual effect.

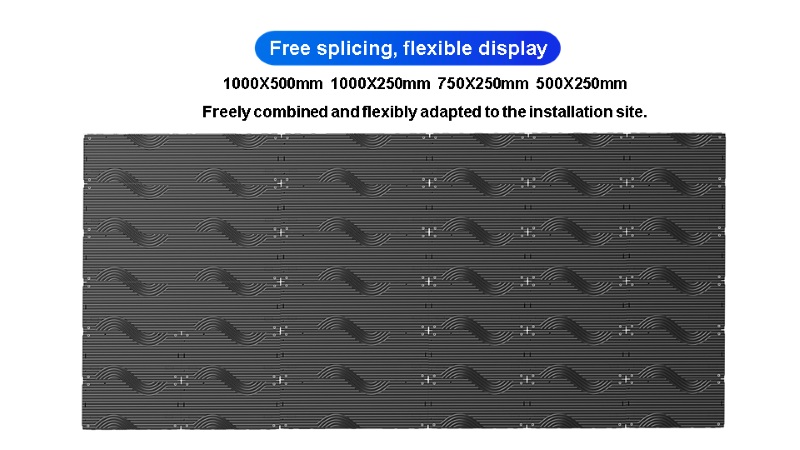

Free splicing, flexible display
The four types of enclosures, 1000X500mm, 1000X250mm, 750X250mm, and 500X250mm, can be flexibly spliced horizontally and vertically, providing unlimited possibilities for your creative ideas and applications in any scene.
IMAX Series Indoor LED Display
| Pixel Type | P1.25 | P1.5625 | P1.95 | P2.5 | P2.604 | P2.976 | P3.91 |
| Pixel Pitch (mm) | 1.25 | 1.5625 | 1.95 | 2.5 | 2.604 | 2.976 | 3.91 |
| LED Packing | SMD1010(GOB) | SMD1010/1212(GOB) | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2020 |
| Physical Density (Dot / m²) | 640000 | 409600 | 262144 | 160000 | 147456 | 112896 | 65536 |
| Module Resolution | 200X200 | 160X160 | 128X128 | 100X100 | 96X96 | 84X84 | 64X64 |
| Module Size (mm) | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 | 250X250 |
| Cabinet Size (L*H*T/mm) | 1000×500×33 1000×250×33 750×250×33 500×250×33 | 1000×500×33 1000×250×33 750×250×33 500×250×33 | 1000×500×33 1000×250×33 750×250×33 500×250×33 | 1000×500×33 1000×250×33 750×250×33 500×250×33 | 1000×500×33 1000×250×33 750×250×33 500×250×33 | 1000×500×33 1000×250×33 750×250×33 500×250×33 | 1000×500×33 1000×250×33 750×250×33 500×250×33 |
| Cabinet Resolution | 800×400 800×200 600×200 400×200 | 640×320 640×160 480×160 320×160 | 512×256 512×128 384×128 256×128 | 400×200 400×100 300×100 200×100 | 384×192 384×96 288×96 192×96 | 336×168 336×84 252×84 168×84 | 256×128 256×64 192×64 128×64 |
| Module QTY (W*H) | 4X2/ 4X1/ 3X1/ 2X1 | 4X2/ 4X1/ 3X1/ 2X1 | 4X2/ 4X1/ 3X1/ 2X1 | 4X2/ 4X1/ 3X1/ 2X1 | 4X2/ 4X1/ 3X1/ 2X1 | 4X2/ 4X1/ 3X1/ 2X1 | 4X2/ 4X1/ 3X1/ 2X1 |
| Cabinet Type | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Maintenance Mode | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance | Front Maintenance |
| Brightness (Nits) | 600nits | 600nits | 800nits | 800nits | 800nits | 800nits | 1000nits |
| Color Temperature (K) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) | 5000-12000(Optional) |
| Viewing Angle | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° | H 160°, V 160° |
| Contrast Ratio | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 | 15000:1 |
| Frame rate | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 |
| Scan | 1/50s | 1/40s | 1/32s | 1/25s | 1/32s | 1/28s | 1/16s |
| Grayscale | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) | 14-16bit (Optional) |
| Refresh | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz | 3840Hz / 7680Hz |
| Control System | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar | NovaStar |
| Max. Power Consumption (W / m²) | 400 | 400 | 400 | 400 | 400 | 400 | 400 |
| Avg. Power Consumption (W / m²) | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Ingress Protection (IP) | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Input Power | AC90-264V, 47-63Hz | ||||||
| Wroking Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | ||||||
| Storage Temp/Humidity (℃/RH) | -20~60℃ / 10%~85% | ||||||
| Certification | CCC/CE/RoHS/FCC/CB/TUV/IEC | ||||||
FAQ
LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
