Mino Floor Series Indoor LED Display
Pixel Pitch: P2.976/ P3.91/ P4.81
LED Type: SMD with acrylic face mask
Cabinet Size: 1000mm × 500m × 80mm
● ≥2 ton/m² high load-bearing.
● IP54 high protection.
● ≥ 3840Hz high refresh rate & 900-2000cd high brightness.
● Built-in sensing chip enables human-machine smart interaction.
● Surface flatness error < 0.5mm for safe walking, and seamless visuals.
● Built-in efficient active cooling system for heat dissipation.

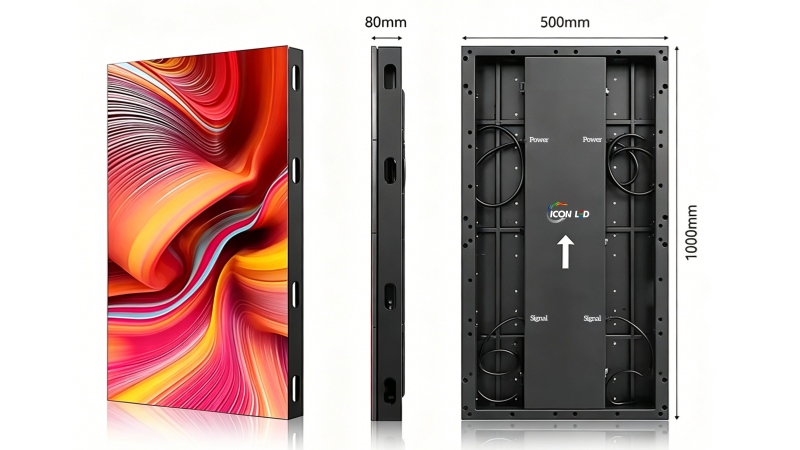

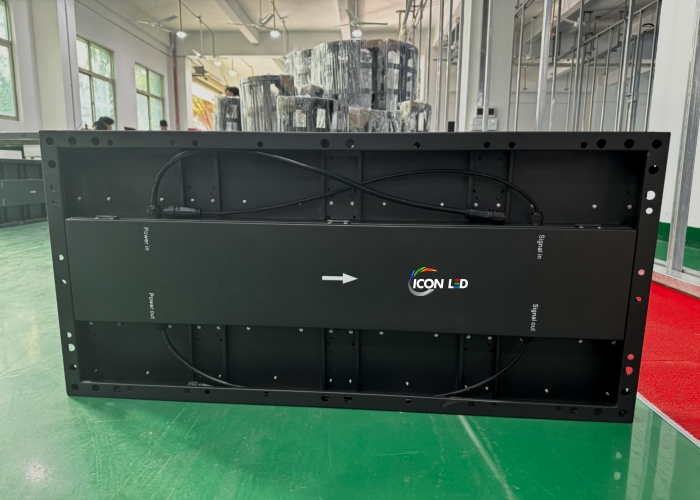

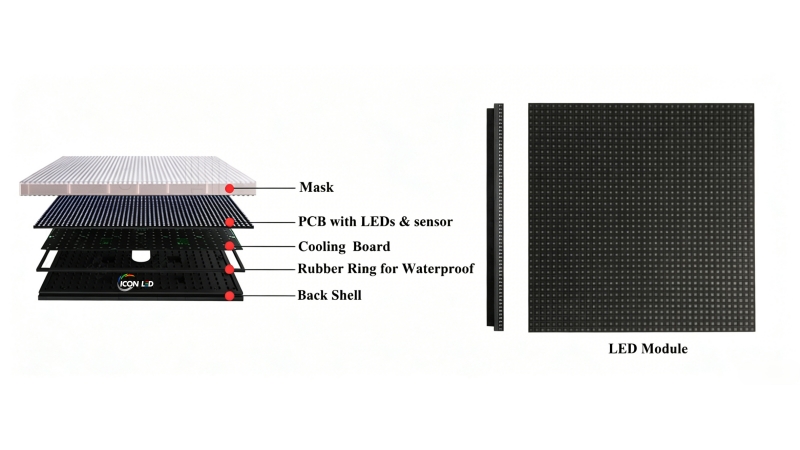

Cabinet Structure

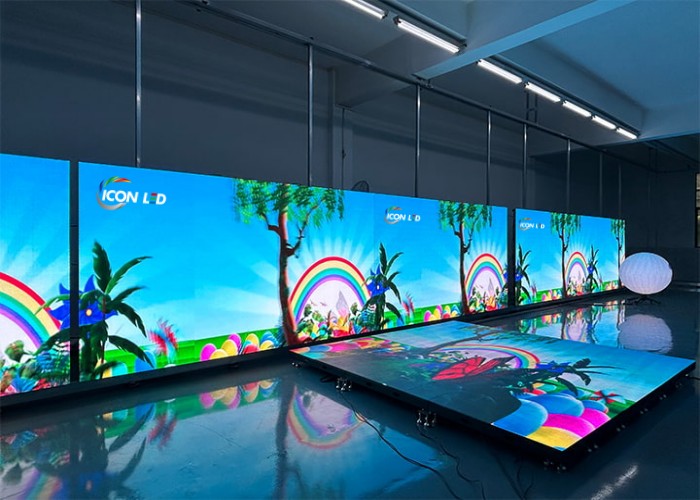

LED Floor – a surface you can walk on, covered with light-emitting diodes able to display any video content.

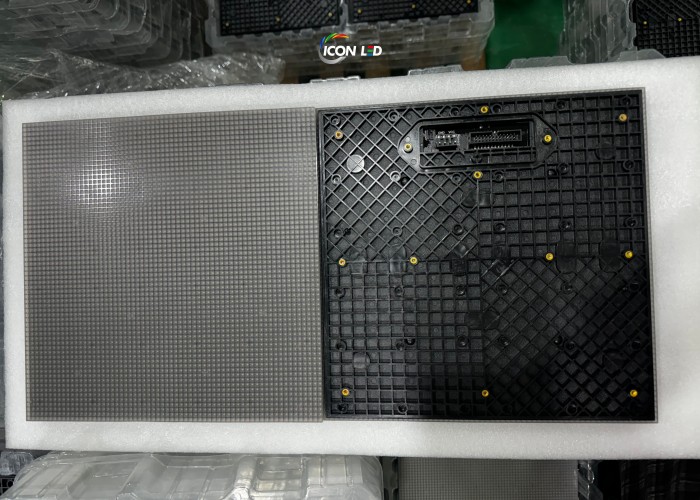

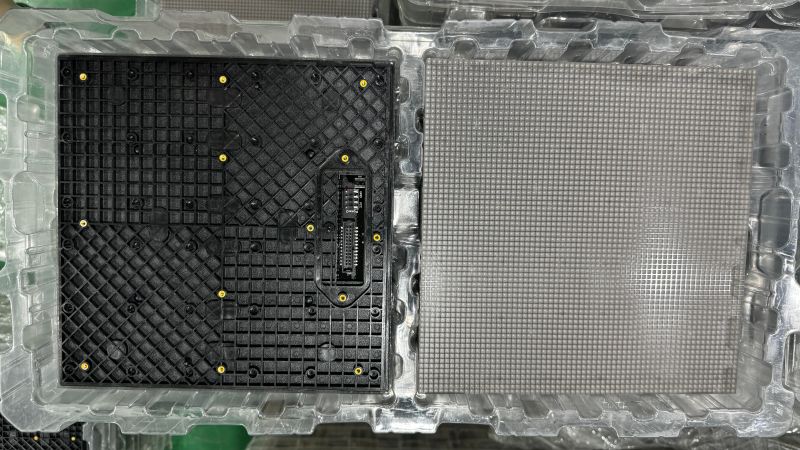

1000*500mm modular rapid installation. Covered with a slip-resistant and wear-resistant acrylic transparent cover plate.

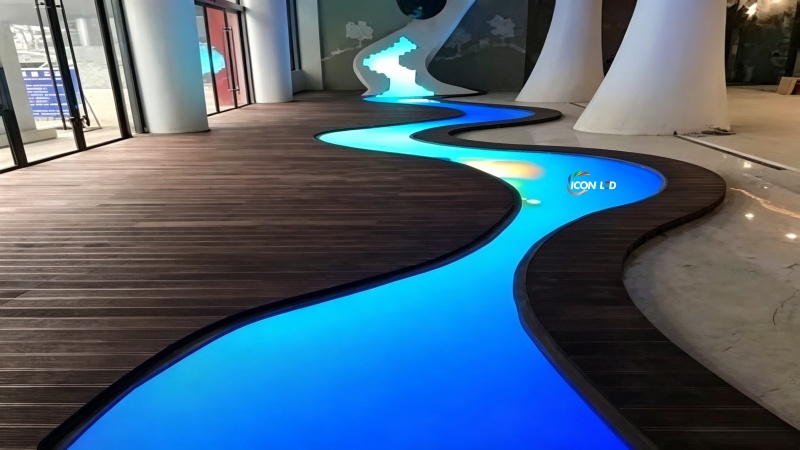

Application Scenario
ICON indoor LED displays serve as premium solutions for commercial exhibition, data visualization, meeting rooms, consumer-grade applications and more. It is widely deployed across numerous scenarios including high-end home theaters, indoor advertising, shopping malls & retail outlets, conference rooms, command centers, hotel events, stage, etc.

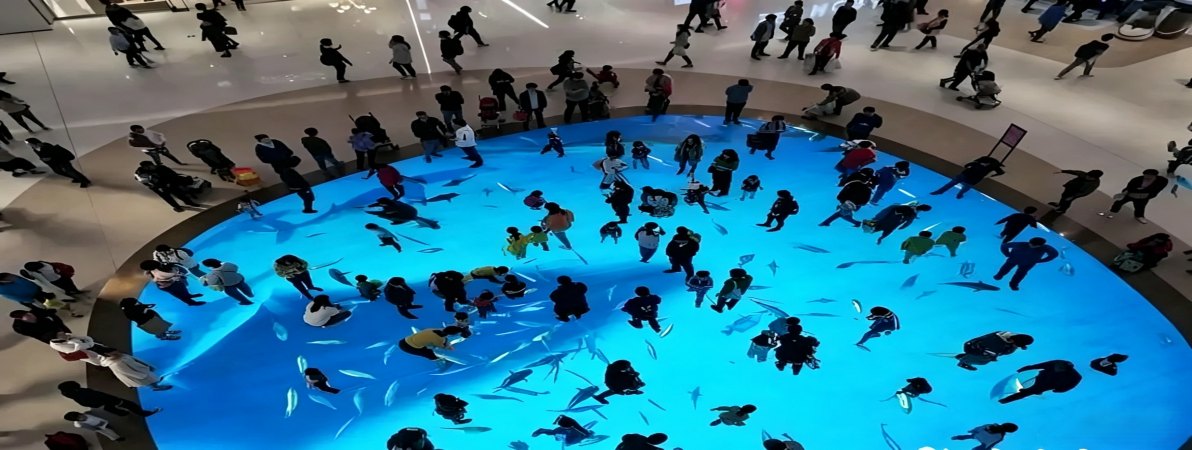

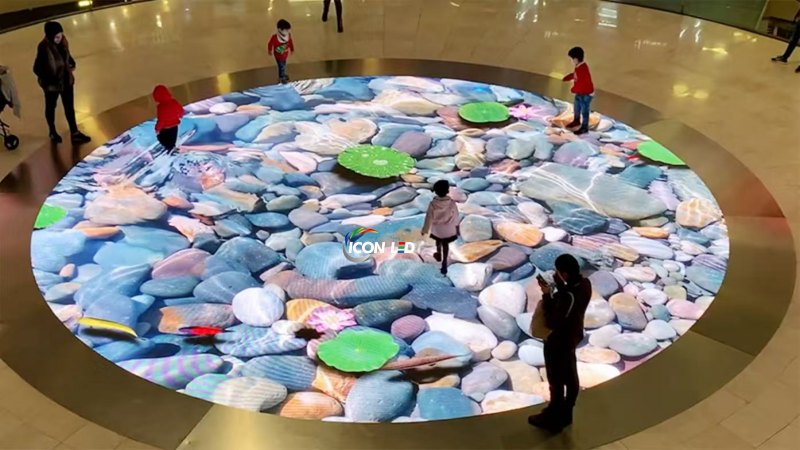

Shopping mall - Marketing and brand promotion opportunities
The LED floor screen offers unique marketing and brand promotion opportunities. Event planners and distributors can use these floors to directly display logos, promotional information, or social media content on the floor, adding a distinctive element to corporate or promotional events.
Additionally, they can showcase the logos and advertisements of sponsors at trade exhibitions or sponsorship events, creating new revenue sources.

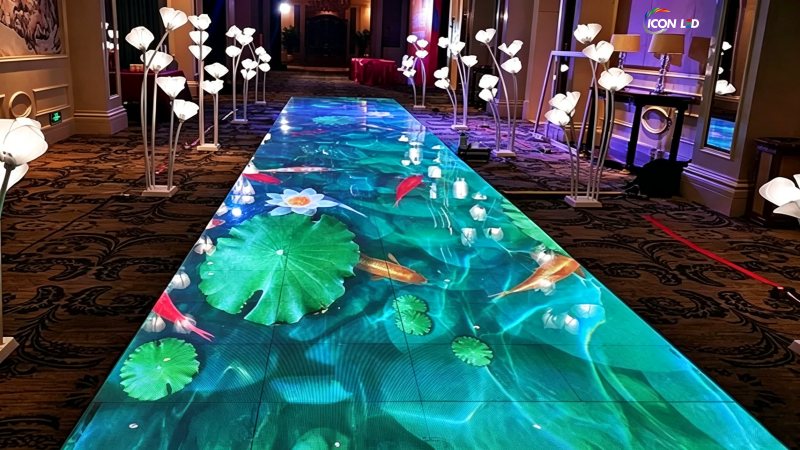

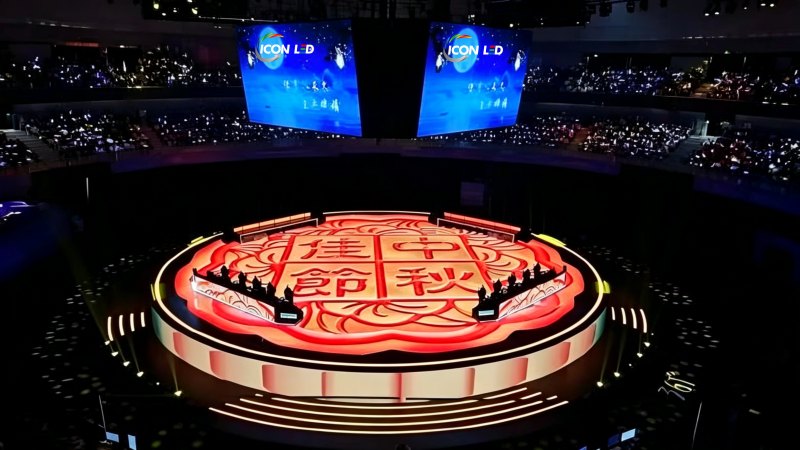

Stage - Enhancing the Attractiveness of the Venue
The LED floor screen is a highlight for nightclubs, bars, and event venues, significantly enhancing the style of the space and attracting more attendees. The stunning visual effects brought by these floors can create a unique atmosphere, making your venue an ideal choice for hosting high-end events.
Key Features
The interactive LED panels have embedded optical sensors that detect when they have been activated by a foot,
hand or really anything that you’d like to place on the interactive panels.
Acrylic protective panel
With the innovative splash-proof panels from ICON LED, enhance your event experience and enjoy spectacular effects even in humid environments. These panels are meticulously designed to effectively resist liquid spills and splashes, protecting your investment and keeping the event lively and dynamic at all times.

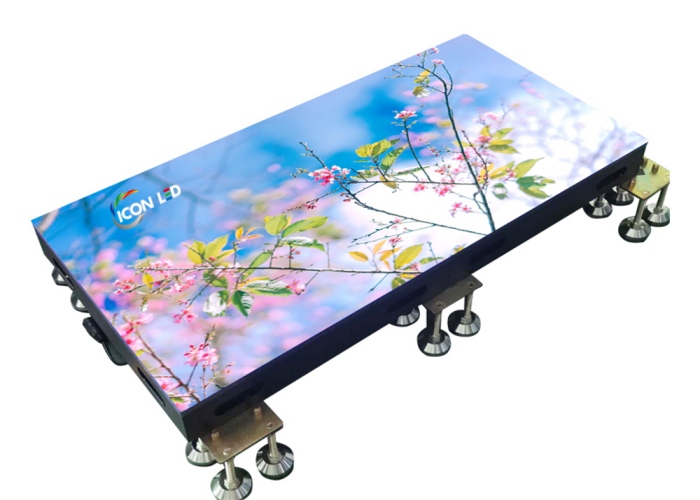

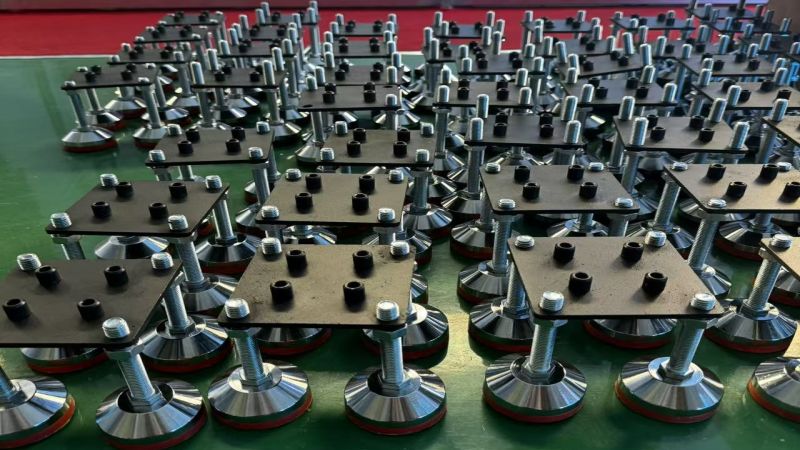

Adjustable Height Flexibility
Adjustable height, easily customize the height of the LED floor display to meet your various needs. The operation is convenient and the running is smooth.
Choose ICON LED, its adaptability is within reach, ensuring a smooth integration into any activity space.

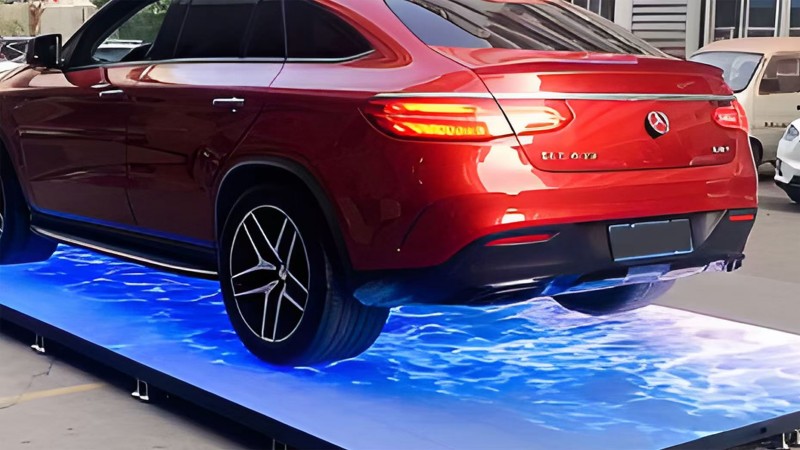

High load-bearing capacity
Trust ICON LED’s commitment to safety and durability. Our LED floor screens have an extremely strong load-bearing capacity, reaching up to 2000kg per Sqm. Even in high-traffic environments, they can ensure stability and safety.
Choose ICON LED, prioritize safety, and enable you to confidently host various events.
Mino Floor Series LED Display
| Pixel Pitch | P2.976 | P3.91 | P4.81 |
| Resolution (dot/m²) | 112896 | 65536 | 43264 |
| Pixel Density | 336*336 | 256*256 | 208*208 |
| Module size (mm) | 250*250 | 250*250 | 250*250 |
| Cabinet size (mm) | 1000*500 | 1000*500 | 1000*500 |
| Cabinet Thickness | 80mm | 80mm | 80mm |
| Single Cabinet Weight | 22.5KG | 22.5KG | 22.5KG |
| Refresh Rate | 3840Hz | 3840Hz | 3840Hz |
| Scan | 1 / 42s | 1 / 32s or 1/16s | 1 / 26s |
| Max Wattage (W/cabinet) | 200 | 180 | 160 |
| Avg Wattage (W/cabinet) | 60 | 55 | 48 |
| Lamp Bead | SMD1415 | SMD1415 | SMD1921 |
| Brightness | 900-2000cd Adjustable | 900-2000cd Adjustable | 900-2000cd Adjustable |
| IP Rate | IP54 | IP54 | IP54 |
| Cabinet Bearing | 2000 KG/m² | 2000 KG/m² | 2000 KG/m² |
| Working Voltage | 100-240V ，AC 50-60Hz | 100-240V ，AC 50-60Hz | 100-240V ，AC 50-60Hz |
FAQ
Q: LED display models are generally expressed in PX, such as P2 P3 P4.....P8 P10, what does this mean?
A: P1.25, P2, P3 P4…..P8, P10 means that the pixel pitch is 1.25mm, 2mm, 3mm 4mm….10mm,
which determines the resolution of a display. Pixel pitch is smaller, the more LEDs are needed, led display resolution is higher.
Q: What pixel pitch should I choose on my display?
A: Choosing the PX is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
For example, the optimal viewing distance of P10 is >= 10m. If your audience usually watches from a distance of more than 10m, then we can choose P10.
If your audience usually watches closely within 10m, then we need to select a smaller spacing. For instance, when the viewing distance is 2.5 meters, we need to choose P2.5 or a smaller spacing (P2 / P1.86 / P1.538 / P1.25).
This way, the best visual experience can be ensured.
Q: How can we ensure the LED display product quality?
A: Before shippment, all the screens have aging test. And then we also have waterproof test and shake test, ensure products can transportation safety and normal use.
Q: How about the warranty?
A: We are the original factory and offer a 2-5 year free warranty with lifelong technical support.
Q: How can I purchase it?
A: Step 1: Leave your contact information on the website or add ICON LED’s WhatsApp: +86 18923449595. Our sales will contact you soon. Provide detailed information and resolve any questions to assist you in choosing the most suitable product.
Step 2: Pay the deposit as per the Proforma Invoice. The factory will immediately arrange the purchase of raw materials and the production plan. Step 3: Complete production and testing within the shortest time of 12-18 days based on the purchase quantity.
Step 4: Support on-site inspection or online inspection. After the inspection is satisfactory, pay the balance.
Step 5: Finally, ship the goods by sea/ Air and provide CI&PL and other informations to ensure smooth import.
